Zimaboard - Single Board Server X86 SBC, CasaOS, NAS

• Quick Start: User Manual
• Tips

Introduction

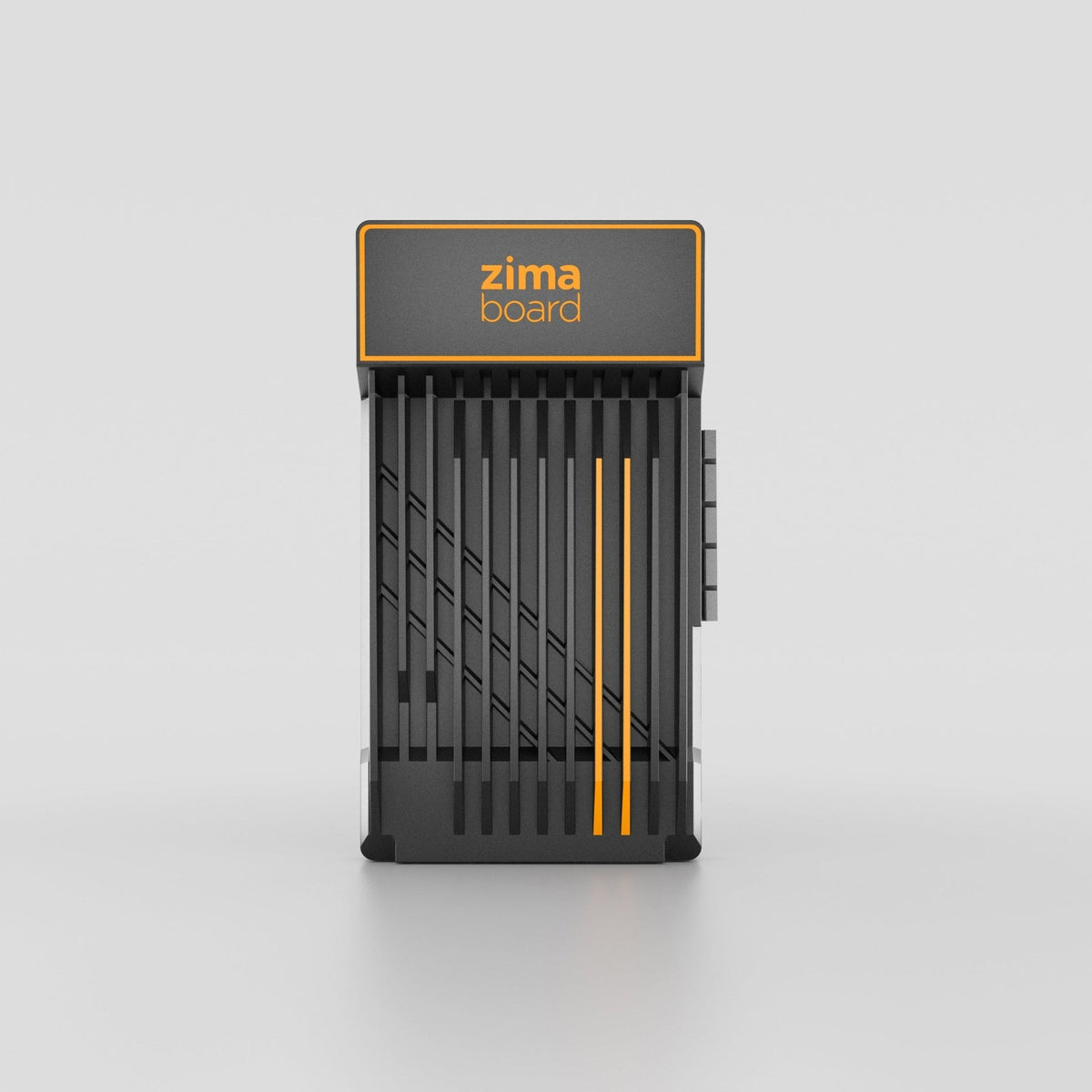

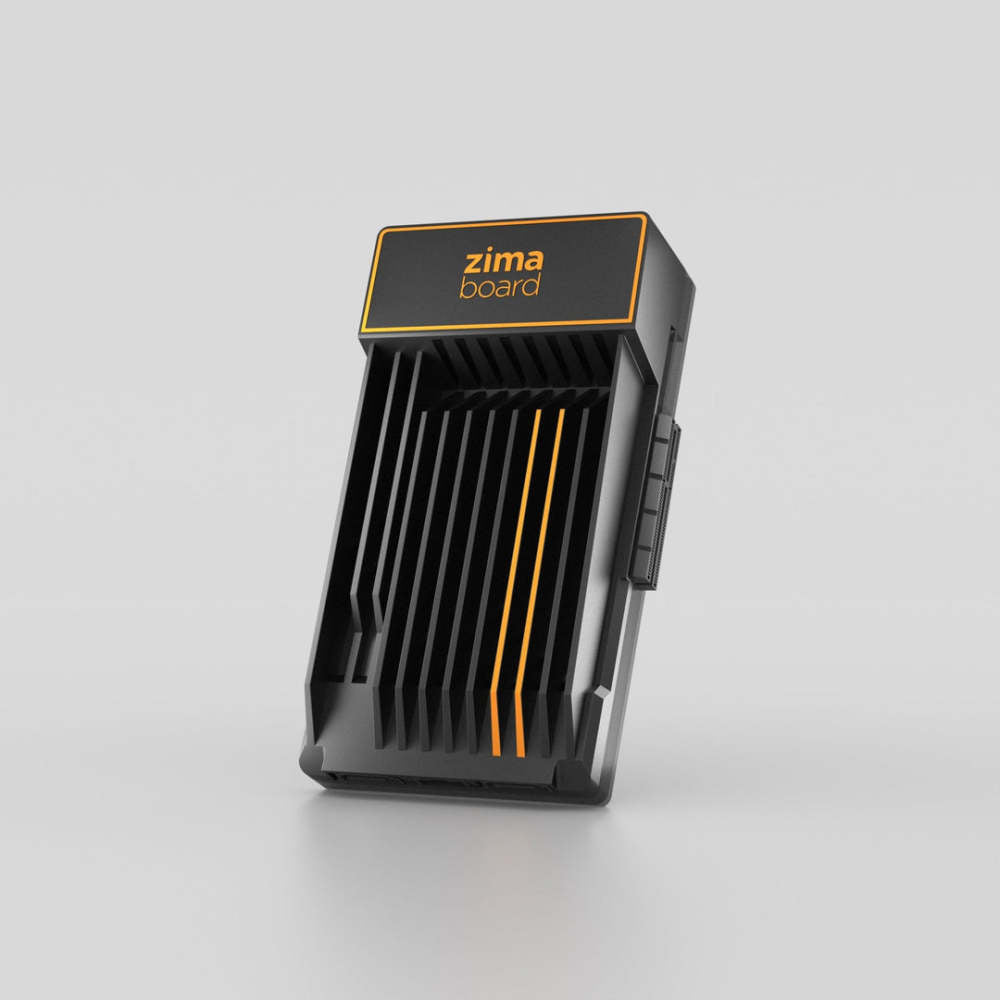

ZimaBoard is a low-cost single-board server designed for makers and geeks.

Zimaboard has both the expandability of an x86 SBC and the appropriate power of a microserver. With ZimaBoard, you can set up a 4 Terabyte personal cloud in 5 minutes, configure a secure VPN to protect your digital footprint, tune your network with OpenWrt and pfSense, build a 4K media server that runs with Plex, share and collaborate with team members on your files, or upgrade your smart projects across different systems.

ZimaBoard was created by makers who got tired of recurring fees, unfriendly presets, and isolated systems. We want to make the home digital experience more attractive and affordable.

Features

• World's First Hackable x86 Single Board Server - ZimaBoard is a low-cost single-board server exclusively designed for makers, DIYers, and geeks. Equipped with Intel Celeron N3450 Quad Core operating at 1.1GHz to 2.2GHz, it has both the expandability of an x86 single-board computer and the appropriate power of a micro server, perfect for edge intelligence and smart home projects.
• PCIe x4, SATA 6.0 Gb/s & Dual Gigabit Ethernet Onboard - Fully customizable and expandable with onboard interfaces, the PCIe x4 interface caters to a variety of user needs. Also, with a large number of PCIe accessories available in the market, you can easily extend your ZimaBoard setup with 2.5Gbe, NVMe NGFF SSD, WIFI dongle, XMOS/DAC module, and many more!
• Personal NAS, 4K Streaming Server, VPN Router & IoT Gateway - With ZimaBoard, you can setup a 4 Terabyte personal cloud in 5 minutes and no more monthly bills, configure a secure VPN to protect your digital footprint, tune your network with OpenWrt and, build a 4K media server that runs with Plex, share and collaborate with team members on your files, or upgrade your smart projects across different systems.
• Pre-installed CasaOS - A simple & elegant home cloud around the Docker ecosystem, changing the way families view modern living. From photo and video storage to smart home device management and encrypted communications, CasaOS is the one-stop ideal home cloud system to keep families safe and protected in the digital age. And zimaboard is also compatible with OS like Linux(default)/ Windows / OpenWrt / / Android / Libreelec.

Shipping List

• Standard Kit
  • 1x ZimaBoard 232/432/832
  • 1x SATA Cable
  • 1x 12V/3A Power Adapter
• Starter Bundle
  • 1x Standard Kit
  • 1x SATA Y-Cable for ZimaBoard/ZimaBlade
  • 1x Mini DisplayPort Male to HDMI Female Cable 4K 60Hz
• Duo 2.5″ Bundle
  • 1x Standard Kit
  • 1x SATA Y-Cable for ZimaBoard/ZimaBlade
  • 1x 2.5" Hard Disk Stand
  • 1x Mini DisplayPort Male to HDMI Female Cable 4K 60Hz

Applications

Single Board Server Router X86 Single Board Computer Personal Cloud Network Attached Storage 4K Media Server Dual Gigabit Gateway

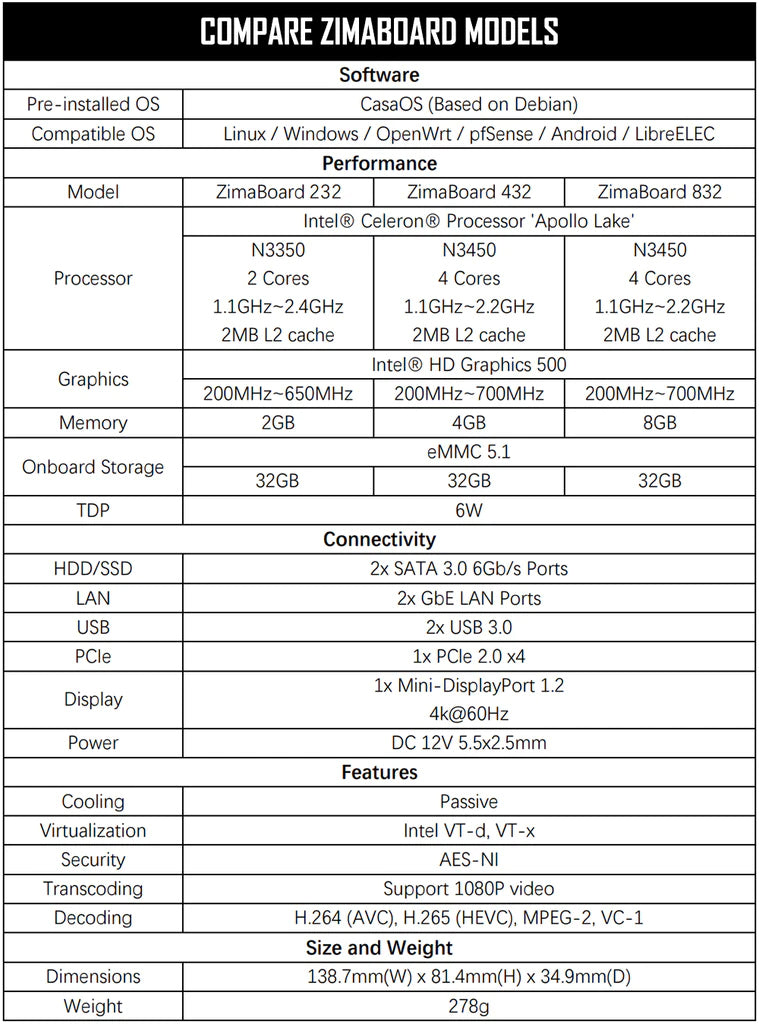

Specification

• CPU:
  • Intel Celeron N3350 Dual Core 1.1-2.4GHz (232 Model),
  • Intel Celeron N3450 Quad Core 1.1-2.2GHz (432 & 832 Model)
• RAM: 2G/4G/8G LPDDR4
• Onboard Storage: 32GB eMMC
• HDD/SSD: 2x SATA 6.0 Gb/s Ports
• LAN: 2x GbE LAN Ports
• USB: 2x USB 3.0
• PCle: 1x PCle 2.0 4x
• Display: 1x Mini-DisplayPort 1.2 4k@60Hz
• TDP: 6W
• Dimensions: (W x D x H) 138.7 x 81.4 x 34.9 mm
• Weight: 278g
• Other Feature:
  • Passive Cooling
  • Intel VT-d, VT-x, AES-NI
  • Support 4K video transcoding
  • H.264 (AVC), H.265 (HEVC), MPEG-2, VC-1
• Pre-installed OS: CasaOS (Based on Debian)
• Compatible OS: Linux / Windows / OpenWrt / pfSense / Android / Libreelec
