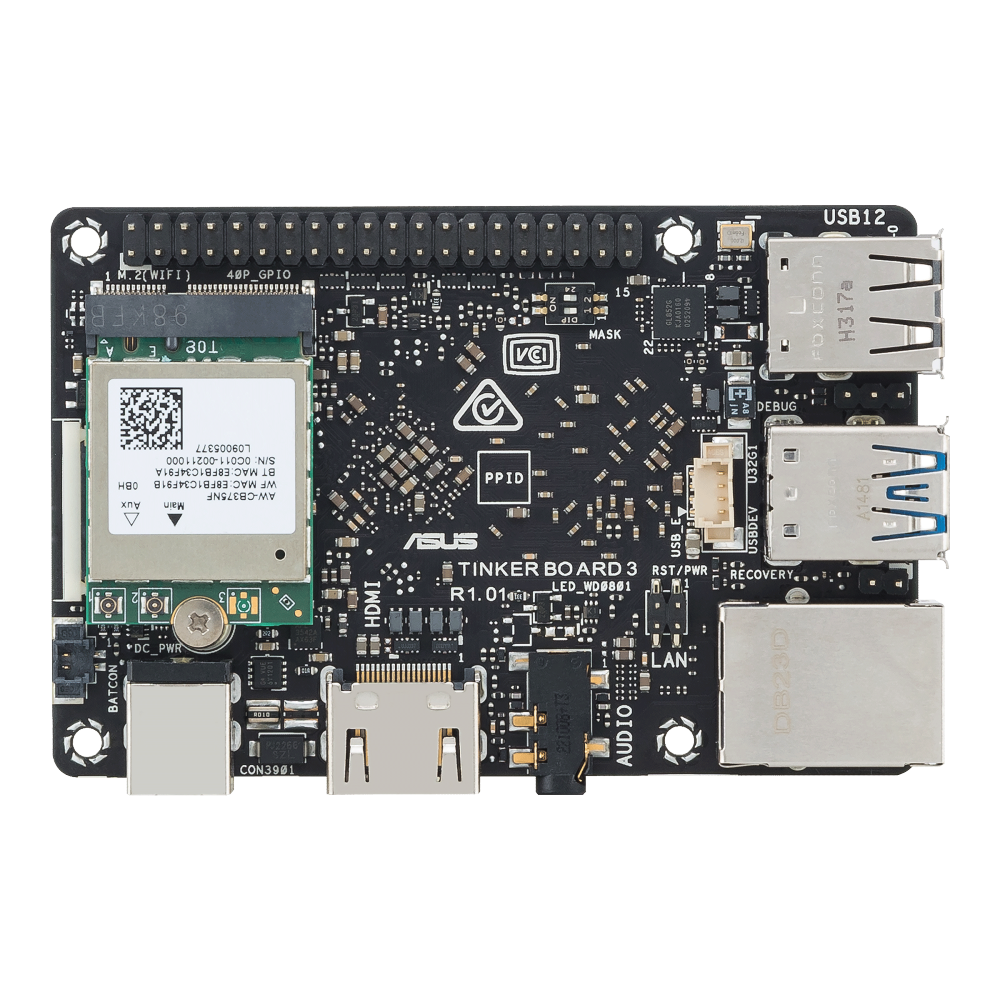

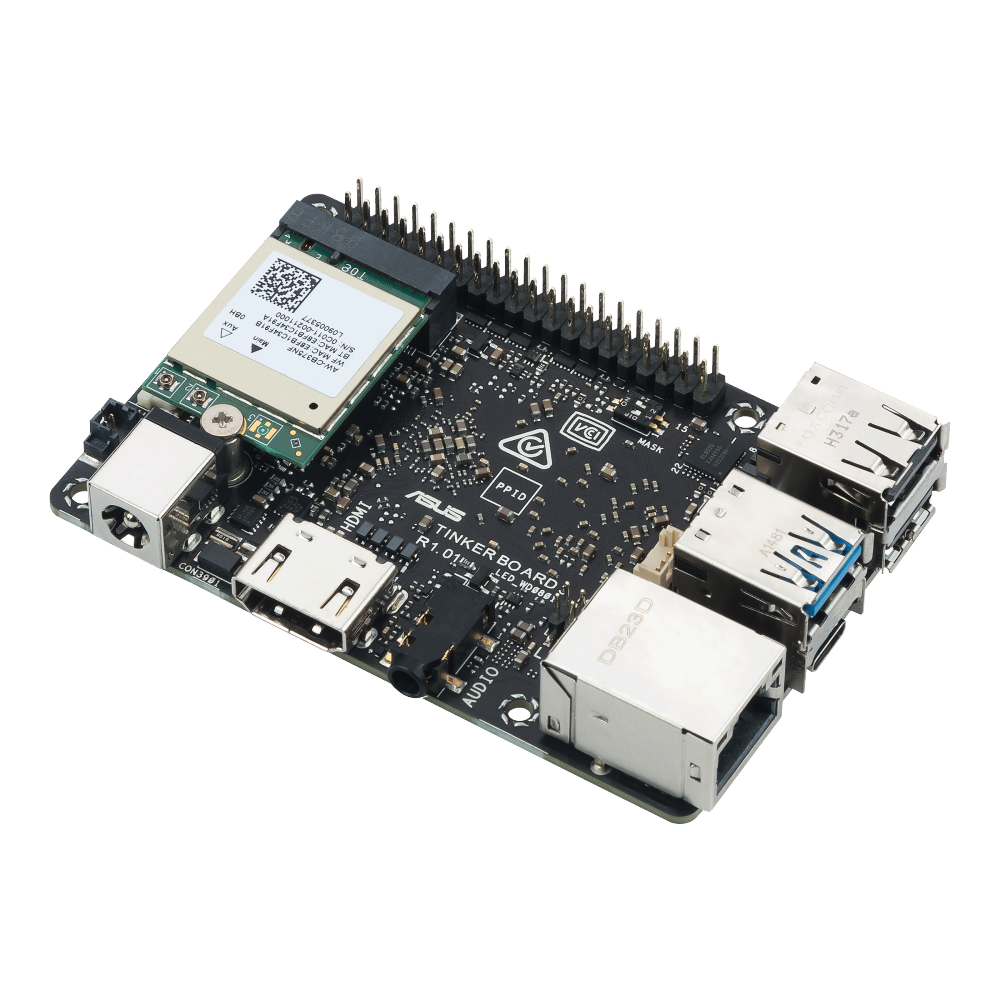

ASUS Tinker Board 3/3S, 2GB/4GB LPDDR4X RAM, RK3566, 1TOPS NPU, Credit-card sized SBC

ASUS Tinker Board 3/3S, 2GB/4GB LPDDR4X RAM, RK3566, 1TOPS NPU, Credit-card sized SBC

$92.56 USD
$92.56 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

ASUS Tinker Board 3/3S, 2GB/4GB LPDDR4X RAM, RK3566, 1TOPS NPU, Credit-card sized SBC is a single board computer (SBC) for embedded and edge-AI development from ASUS.

Available from Ai-Paipai with local engineering support, datasheets and pre-flashed images where applicable, plus OEM / ODM options and worldwide shipping.

Tinker Board 3/3S - Credit-Card Sized SBC,RK3566

  • Quick Start
  • Tips
    • All specifications are subject to change without notice.
    • Specifications and features vary by model, and all images are illustrative.
    • Please refer to the specification pages for full details.
    • PCB color and bundled software versions are subject to change without notice.
    • Tinker Board 3S has 16GB EMMC onboard, Tinker Board 3 does not have EMMC onboard.
    • 12V DC Power Link: Contact lixu@ai-paipai.com
    • TF Card: Contact lixu@ai-paipai.com





Shipping List

Tinker Board 3/3S  x1

Wi-Fi/BT antenna cable  x2
Heatsink  x1



Specification


Soc Rockchip RK3566
CPU Quad-core Arm Cortex-A55
GPU Arm Mali-G52
NPU Rockchip NPU
Display 1 x HDMI, supports up to 4096 x 2160 @ 60 Hz
1 x MIPI DSI, Supports four lanes up to 6 Gbps, 1920 x1080 @ 60 Hz (22 pin)
Memory Size Dual-channel LPDDR4X 2GB / 4GB
Storage Micro SD (TF) card slot (push/pull)
M.2 E key 2230 1 x for WiFi 5/6 & BT module (PCIe 2.0 x1, USB 2.0)
Audio 1 x 3.5 phone jack (with mic)
1 x HDMI audio
USB 1 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A ports
2 x USB 2.0 Micro B, device only
1 x USB 2.0 4-pin header
Internal Headers 1 x 40-pin GPIO headers include:
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 2 x UART
- up to 3 x PWM
- up to 1 x PCM/I2S(master/slave)
- up to 1 x S/PDIF TX
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 2-pin recovery header
1 x 2-pin power-on & reset header
1 x 3-pin debug UART header
1 x 2-pin DC fan header
1 x 2-pin RTC battery header
1 x MaskromDIP switch
Power Connector 1 x  12-19V DC barrel power input jack (5.5/2.5 mm)
OS Support Debian / Android / Yocto
Dimension 3.37 inch x 2.125 inch (85 × 56 mm)
Operation temperature 0℃ ~ 60℃
Non-operation temperature -40℃ ~ 85℃
Non-operation humidity 10% ~ 85% (non-condensing)
Note *Default for 1 x 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R)


Detailed Descriptions

✅ Traceable Supply Chain — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied through a traceable supply chain. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

Why Buy From Ai-Paipai?

  • Genuine & Traceable — sourced through a verifiable supply chain.
  • Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
  • OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
  • One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
View full details

Not sure which platform fits your project?

Frequently asked questions

What is ASUS Tinker Board 3/3S, 2GB/4GB LPDDR4X RAM, RK3566, 1TOPS NPU, Credit-card sized SBC used for?
ASUS Tinker Board 3/3S, 2GB/4GB LPDDR4X RAM, RK3566, 1TOPS NPU, Credit-card sized SBC is a Single Board Computer (SBC) from ASUS. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does ASUS Tinker Board 3/3S, 2GB/4GB LPDDR4X RAM, RK3566, 1TOPS NPU, Credit-card sized SBC include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order ASUS Tinker Board 3/3S, 2GB/4GB LPDDR4X RAM, RK3566, 1TOPS NPU, Credit-card sized SBC with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is ASUS Tinker Board 3/3S, 2GB/4GB LPDDR4X RAM, RK3566, 1TOPS NPU, Credit-card sized SBC shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.

Specifications

Soc Rockchip RK3566
CPU Quad-core Arm Cortex-A55
GPU Arm Mali-G52
NPU Rockchip NPU
Display 1 x HDMI, supports up to 4096 x 2160 @ 60 Hz 1 x MIPI DSI, Supports four lanes up to 6 Gbps, 1920 x1080 @ 60 Hz (22 pin)
Memory Size Dual-channel LPDDR4X 2GB / 4GB
Storage Micro SD (TF) card slot (push/pull)
M.2 E key 2230 1 x for WiFi 5/6 & BT module (PCIe 2.0 x1, USB 2.0)
Audio 1 x 3.5 phone jack (with mic) 1 x HDMI audio
USB 1 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Type-A ports 2 x USB 2.0 Micro B, device only 1 x USB 2.0 4-pin header
Power Connector 1 x 12-19V DC barrel power input jack (5.5/2.5 mm)
OS Support Debian / Android / Yocto
Dimension 3.37 inch x 2.125 inch (85 × 56 mm)
Operation temperature 0℃ ~ 60℃
Non-operation temperature -40℃ ~ 85℃
Non-operation humidity 10% ~ 85% (non-condensing)
Note *Default for 1 x 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R)
12V DC Power available separately, contact lixu@ai-paipai.com
TF Card available separately, contact lixu@ai-paipai.com
