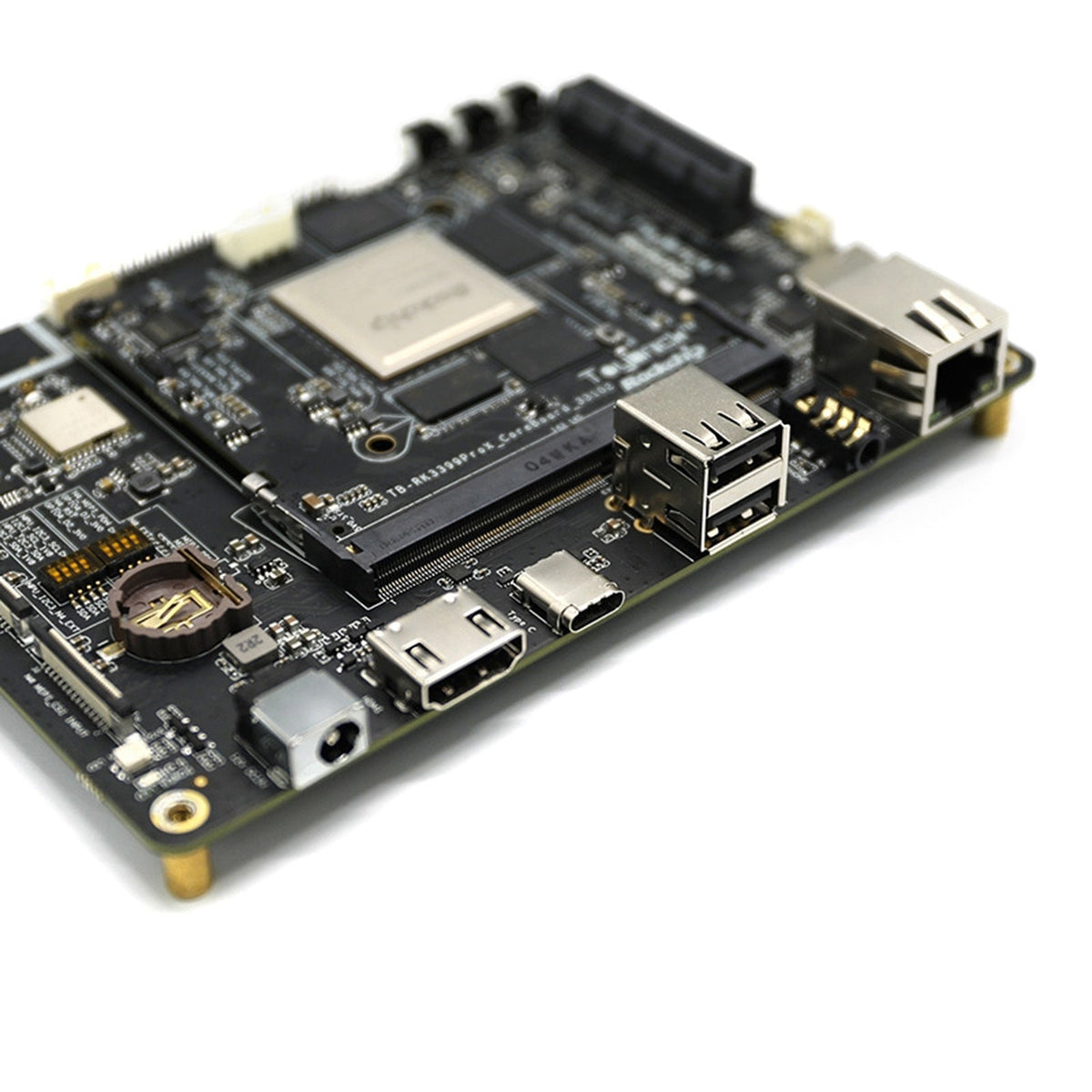

• TB-RK3399ProX NPU 3.0TOPS RockChip RK3399Pro AI Artificial Intelligence Development Board Supports Android/Linux

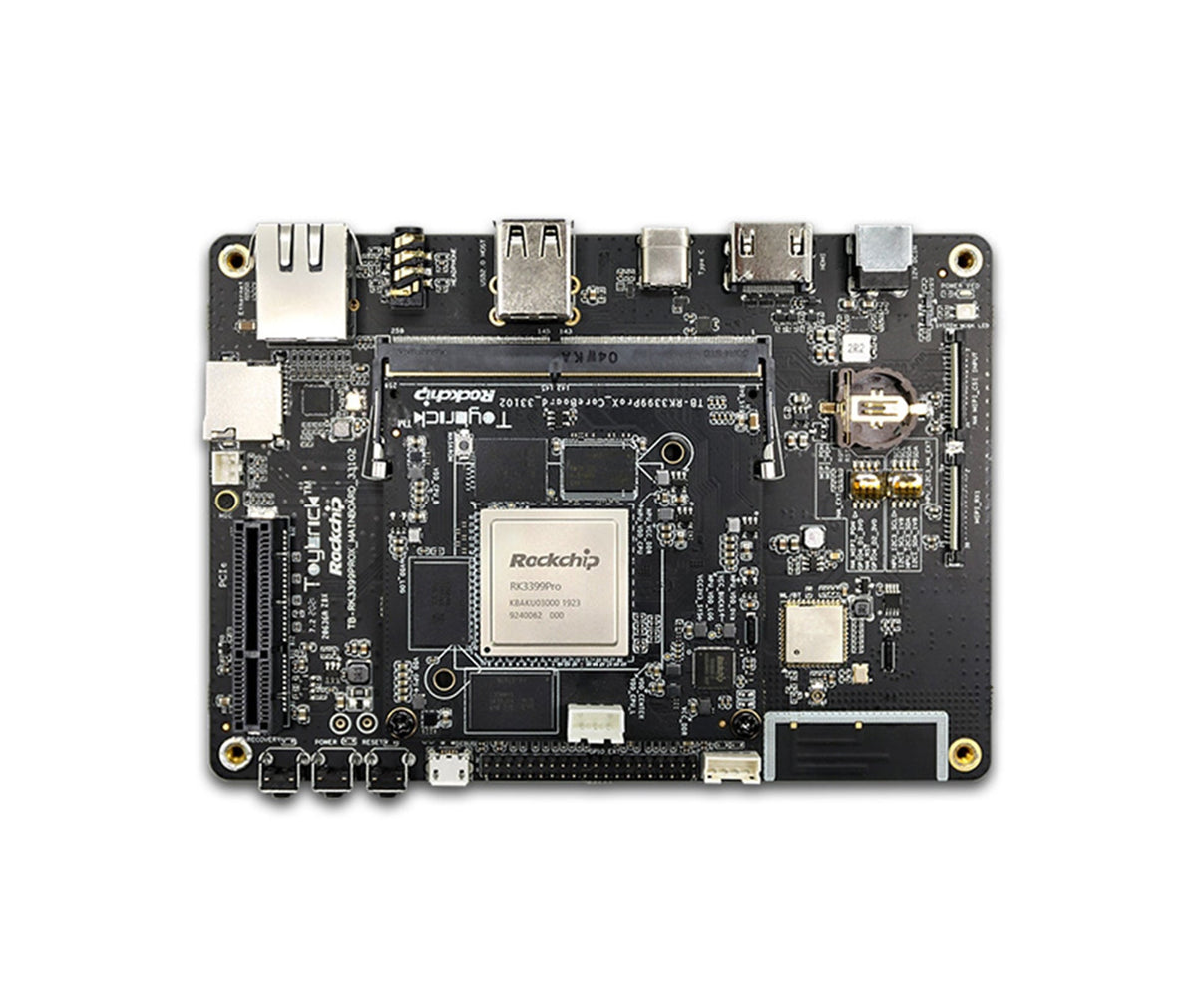

  • Toybrick TB-RK3399ProX — view 2
1 2

Toybrick

TB-RK3399ProX NPU 3.0TOPS RockChip RK3399Pro AI Artificial Intelligence Development Board Supports Android/Linux

TB-RK3399ProX NPU 3.0TOPS RockChip RK3399Pro AI Artificial Intelligence Development Board Supports Android/Linux

$90.51 USD
$90.51 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

TB-RK3399ProX artificial intelligence development board

  • Equipped with a high-performance AI processing chip RK3399Pro and an integrated neural network processor NPU, the computing power is as high as 3.0Tops.

  • It adopts the combination of core board and backplane, and is flexibly used in various embedded artificial intelligence fields.



Smaller size and strong compatibility

  • The size is only 69.6mm×70mm, which meets the space requirements of small terminal products.

  • SO-DIMM 260P standard gold finger interface to meet various signal requirements.

Support multiple operating systems: Android, Debian

Combination of core board + backplane to form a complete industrial application motherboard

Product Interface Information

Core board specifications

SOC

Rockchip RK3399Pro

CPU

Dual-core Cortex-A72 up to 1.8GHz

Quad-core Cortex-A53 up to 1.4GHz

GPU

ARM Mali-T860 MP4 Quad-core GPU

Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

Support AFBC (framebuffer compression)

NPU

Support 8bit/16bit operation, Support TensorFlow, Caffe model,Computing performance up to 3.0TOPS

VPU

Support 4K VP9 and 4K 10bits H265/H264 video decoding,reach up to 60fps

1080P multi-format video decoding (WMV, MPEG-1/2/4, VP8)

1080P video encoding, supports H.264, VP8 format

Video post processor: de-interlacing, denoising, edge/detail/color optimization

CPU Memory

2GB/4GB LPDRR4

NPU Memory

1GB DRR3

Storage flash

16GB/32GB eMMC for CPU

input power

DC 12V/2A

OS

Android, Linux

Core board size

69.6mm×70mm

PCB Specifications

10-layer board, thickness 1.2mm

Interface Type

SODIMM-260Pin

Baseplate Specifications

display interface

1ch HDMI2.0(Type-A) interface, support 4K/60fps output

1 channel DP1.2 (Type-A) interface, supports 4K@60fps output

1 MIPI interface, supports 1920*1080@60fps output

1 channel eDP1.3 interface, support 2K@60fps output

audio port

1 channel HDMI audio output

1 channel Speaker, speaker output

1 headphone output

1 microphone, onboard audio input

Ethernet

10/100/1000Mbps Ethernet, RJ45 interface

Wireless network

Supports 5G/2.4G dual-band wifi, BT4.2

camera interface

2-way MIPI-CSI camera interface (CPU side supports up to 13Mpixel, NPU side supports up to 2Mpixel)

USB

2x USB2.0 Host, Type-A (CPU side)

1x USB3.0 OTG, Type-C (CPU side)

PCIe

1-way PCIe x4 standard interface, supports expansion based on PCIe high-speed WIFI, storage, and other devices

button

1x Recovery button;

1x Reset button;

1x Power button;

debugging

1channel debugging serial port (Micro USB interface)

serial port

1-way UART interface

Extension ports

The 40Pin expansion interface includes:

  • 8-channel I2S interface (supports microphone array)

  • 2-channel ADC interface

  • 2-way I2C interface

  • 2 GPIO ports

  • Output 3-way VCC power supply (12V, 3.3V, 5V))

TB-RK3399ProX AI Development Board – High-Performance Edge AI Computing The TB-RK3399ProX is a compact, industrial-grade AI development board powered by Rockchip's RK3399Pro processor and integrated 3.0TOPS NPU. Designed for edge AI applications, it combines high-performance computing with flexible deployment across Android and Linux environments. Key Features: High-Performance AI Processing: RK3399Pro SoC with dual-core Cortex-A72 (1.8GHz) and quad-core Cortex-A53 (1.4GHz), paired with a dedicated 3.0TOPS neural network processor supporting 8-bit and 16-bit operations. Compatible with TensorFlow and Caffe models. Compact Form Factor: Measuring just 69.6mm × 70mm with SO-DIMM 260P gold-finger interface, the core board fits space-constrained embedded systems while maintaining full signal compatibility. Rich Multimedia Support: ARM Mali-T860 MP4 GPU with OpenGL ES, OpenVG, and OpenCL support. 4K VP9 and H.265/H.264 video decoding at 60fps; 1080P multi-format encoding. Flexible I/O Connectivity: Dual HDMI 2.0 and DisplayPort 1.2 (4K@60fps), dual MIPI-CSI camera interfaces, PCIe x4 expansion, dual USB 3.0, Gigabit Ethernet, and dual-band WiFi 5G/2.4G with Bluetooth 4.2. Modular Architecture: Core board + backplane design enables rapid prototyping and scalable industrial deployment. Memory & Storage: 2GB/4GB LPDDR4 CPU memory, 1GB DDR3 NPU memory, 16GB/32GB eMMC storage. Multi-OS Support: Pre-configured for Android and Debian Linux with comprehensive development documentation. Ideal for computer vision, edge inference, robotics, IoT gateways, and AI-powered embedded systems requiring low-latency processing.

✅ Traceable Supply Chain — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied through a traceable supply chain. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

Why Buy From Ai-Paipai?

  • Genuine & Traceable — sourced through a verifiable supply chain.
  • Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
  • OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
  • One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
View full details

Frequently asked questions

What is TB-RK3399ProX NPU 3.0TOPS RockChip RK3399Pro AI Artificial Intelligence Development Board Supports Android/Linux used for?
TB-RK3399ProX NPU 3.0TOPS RockChip RK3399Pro AI Artificial Intelligence Development Board Supports Android/Linux is a Single Board Computer (SBC) from Toybrick. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does TB-RK3399ProX NPU 3.0TOPS RockChip RK3399Pro AI Artificial Intelligence Development Board Supports Android/Linux include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order TB-RK3399ProX NPU 3.0TOPS RockChip RK3399Pro AI Artificial Intelligence Development Board Supports Android/Linux with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is TB-RK3399ProX NPU 3.0TOPS RockChip RK3399Pro AI Artificial Intelligence Development Board Supports Android/Linux shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.

Specifications

SOC Rockchip RK3399Pro
CPU Dual-core Cortex-A72 up to 1.8GHz
GPU ARM Mali-T860 MP4 Quad-core GPU
NPU Support 8bit/16bit operation, Support TensorFlow, Caffe model,Computing performance up to 3.0TOPS
VPU Support 4K VP9 and 4K 10bits H265/H264 video decoding,reach up to 60fps
CPU Memory 2GB/4GB LPDRR4
NPU Memory 1GB DRR3
Storage flash 16GB/32GB eMMC for CPU
input power DC 12V/2A
OS Android, Linux
Core board size 69.6mm×70mm
PCB Specifications 10-layer board, thickness 1.2mm
Interface Type SODIMM-260Pin
display interface 1ch HDMI2.0(Type-A) interface, support 4K/60fps output 1 channel DP1.2 (Type-A) interface, supports 4K@60fps output 1 MIPI interface, supports 1920*1080@60fps output 1 channel eDP1.3 interface, support 2K@60fps output
audio port 1 channel HDMI audio output 1 channel Speaker, speaker output 1 headphone output 1 microphone, onboard audio input
Ethernet 10/100/1000Mbps Ethernet, RJ45 interface
Wireless network Supports 5G/2.4G dual-band wifi, BT4.2
camera interface 2-way MIPI-CSI camera interface (CPU side supports up to 13Mpixel, NPU side supports up to 2Mpixel)
USB 2x USB2.0 Host, Type-A (CPU side) 1x USB3.0 OTG, Type-C (CPU side)
PCIe 1-way PCIe x4 standard interface, supports expansion based on PCIe high-speed WIFI, storage, and other devices
button 1x Recovery button; 1x Reset button; 1x Power button;
debugging 1channel debugging serial port (Micro USB interface)
serial port 1-way UART interface
Extension ports The 40Pin expansion interface includes: 8-channel I2S interface (supports microphone array) 2-channel ADC interface 2-way I2C interface 2 GPIO ports Output 3-way VCC power supply (12V, 3.3V, 5V))
