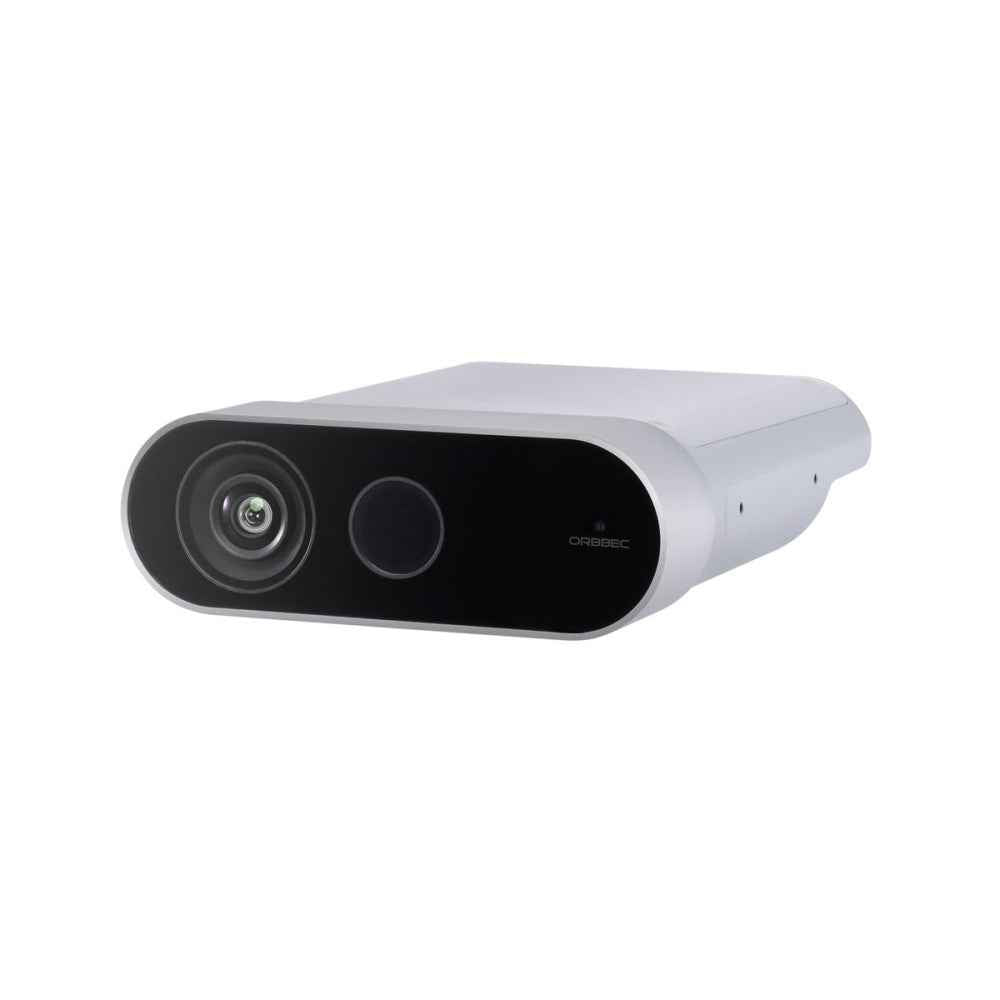

• Orbbec Femto Mega Depth Camera,Built-in Depth and AI computer, 1MP ToF Sensor, 4K RGB,POE

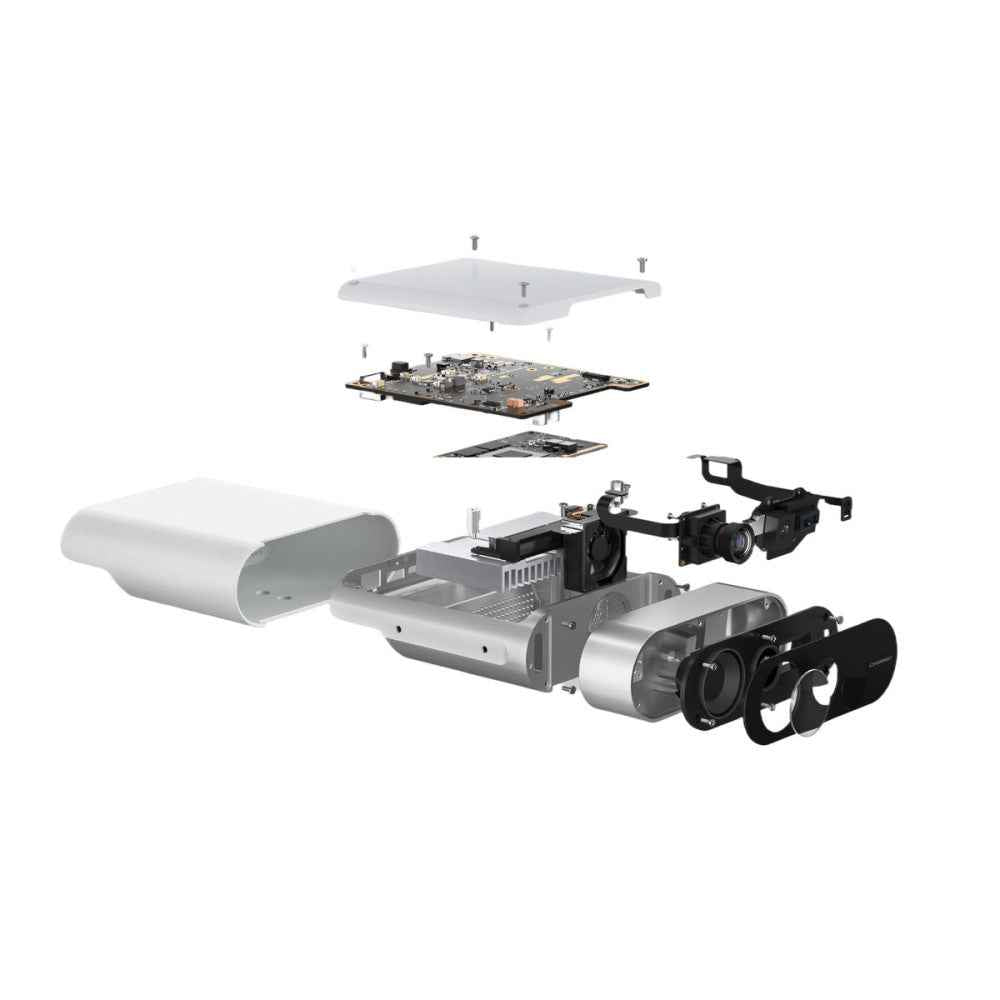

  • Orbbec 1MP — view 2

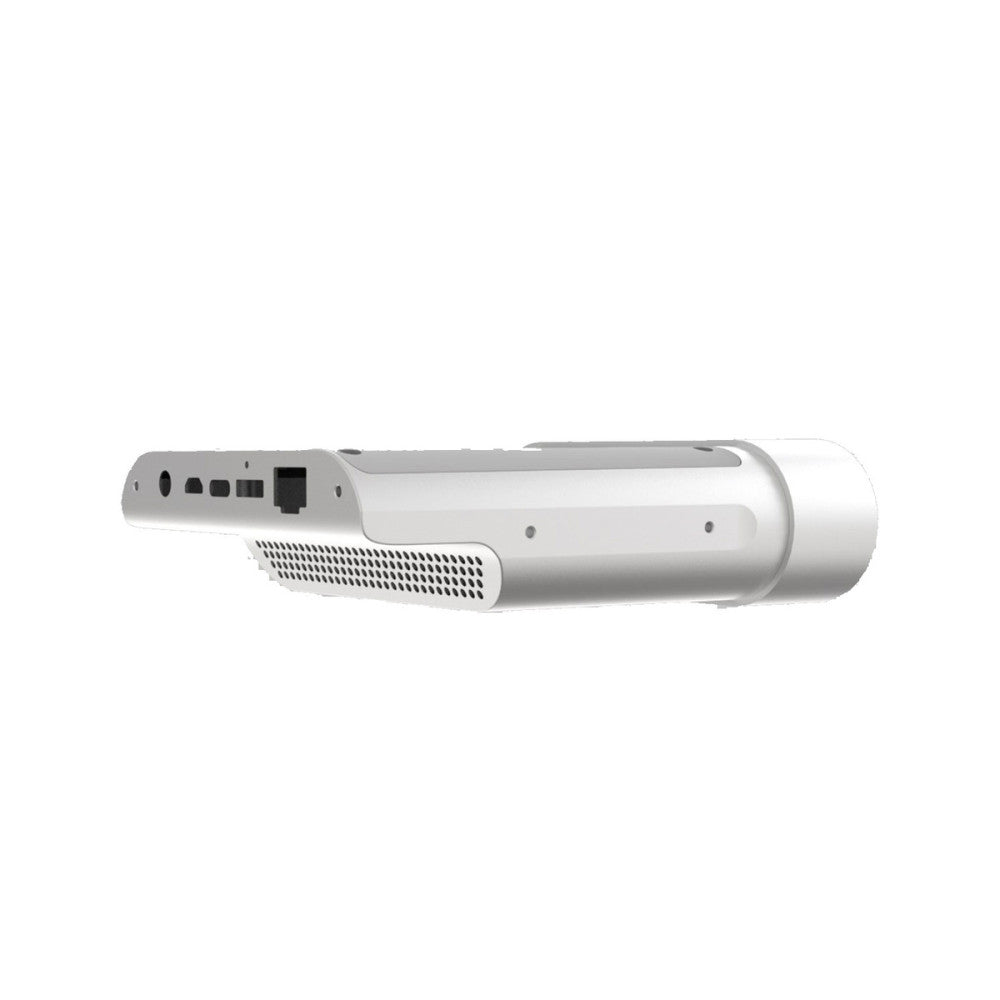

  • Orbbec 1MP — view 3
1 3

Orbbec

Orbbec Femto Mega Depth Camera,Built-in Depth and AI computer, 1MP ToF Sensor, 4K RGB,POE

Orbbec Femto Mega Depth Camera,Built-in Depth and AI computer, 1MP ToF Sensor, 4K RGB,POE

$803.04 USD
$803.04 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

Femto Mega


Femto Mega is a programmable multi-mode Depth and RGB camera with real-time streaming of processed images over Ethernet or USB connections. The camera uses Microsoft’s industry-proven ToF technology and the NVIDIA  Jetson platform to deliver a software-defined Depth and RGB vision platform for computer vision and AI developers.

Performance

High-resolution sensor provides detailed scene understanding.
A Wide Field of View covers a large area.
Various operating modes for different applications.

Programmability

In-camera processing of advanced depth vision algorithms.
Integrated NVIDIA Jetson Nano system-on-module for AI processing can remove the need for dedicated compute.
Orbbec SDK enables easy setup and has a rich set of APIs for integration with various applications.


Packaging

1. Depth and RGB cameras in a single device.
2. Combined data and power with Power over Ethernet (PoE) or USB-C 3.1 connections, eliminating the need for multiple cables.
3. Can be directly connected to servers or the cloud as an IoT device. Precise synchronization control uses standard ethernet cables

Technical Specs

Product Name

Femto Mega

Certifications

Class 1, FCC, RoHS 2.0, CE

Accuracy

< 11 mm + 0.1% distance

Depth FOV

NFoV unbinned & binned: H 75° V 65°
WFoV unbinned & binned: H 120° V 120°

RGB FOV

H 80° V 51° D 89°
RGB Resolution Framerate

3840x2160 @Up to 25 FPS
1920x1080 @Up to 30 FPS

Depth Resolution Framerate

WFOV unbinned 1024x1024 @Up to 15 FPS
WFOV 2x2 binned 512x512 @Up to 30 FPS
NFOV unbinned 640x576 @Up to 30 FPS
NFOV 2x2 binned 320x288 @Up to 30 FPS

Range

WFOV unbinned 0.5-3.86m
WFOV 2x2 binned 0.5-5.46m
NFOV unbinned 0.25-2.88m
NFOV 2x2 binned 0.25-2.21m

Processor

Nvidia Jetson Nano

Operating Systems

Windows/ Linux
SDK

Orbbec SDK

Temperature

10-25°C

Data Transfer

USB 3.0 Ethernet

Average Power Consumption

DC: 11W
POE: 13W

IMU

6DoF

Sync

8-Pin Connector

Power Supply

USB Type C;
Power Adapter 5V/3A;
PoE



✅ Traceable Supply Chain — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)

This product is supplied through a traceable supply chain. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.

Why Buy From Ai-Paipai?

  • Genuine & Traceable — sourced through a verifiable supply chain.
  • Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
  • OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
  • Certified Options — CE / FCC / RoHS available on request for EU / US imports.
  • One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
View full details

Frequently asked questions

What is Orbbec Femto Mega Depth Camera,Built-in Depth and AI computer, 1MP ToF Sensor, 4K RGB,POE used for?
Orbbec Femto Mega Depth Camera,Built-in Depth and AI computer, 1MP ToF Sensor, 4K RGB,POE is a AI Camera from Orbbec. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does Orbbec Femto Mega Depth Camera,Built-in Depth and AI computer, 1MP ToF Sensor, 4K RGB,POE include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order Orbbec Femto Mega Depth Camera,Built-in Depth and AI computer, 1MP ToF Sensor, 4K RGB,POE with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is Orbbec Femto Mega Depth Camera,Built-in Depth and AI computer, 1MP ToF Sensor, 4K RGB,POE shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.

Specifications

Product Name Femto Mega
Certifications Class 1, FCC, RoHS 2.0, CE
Accuracy < 11 mm + 0.1% distance
Depth FOV NFoV unbinned & binned: H 75° V 65° WFoV unbinned & binned: H 120° V 120°
RGB FOV H 80° V 51° D 89°
RGB Resolution Framerate 3840x2160 @Up to 25 FPS 1920x1080 @Up to 30 FPS
Depth Resolution Framerate WFOV unbinned 1024x1024 @Up to 15 FPS WFOV 2x2 binned 512x512 @Up to 30 FPS NFOV unbinned 640x576 @Up to 30 FPS NFOV 2x2 binned 320x288 @Up to 30 FPS
Range WFOV unbinned 0.5-3.86m WFOV 2x2 binned 0.5-5.46m NFOV unbinned 0.25-2.88m NFOV 2x2 binned 0.25-2.21m
Processor Nvidia Jetson Nano
Operating Systems Windows/ Linux
SDK Orbbec SDK
Temperature 10-25°C
Data Transfer USB 3.0 Ethernet
Average Power Consumption DC: 11W POE: 13W
IMU 6DoF
Sync 8-Pin Connector
Power Supply USB Type C; Power Adapter 5V/3A; PoE
