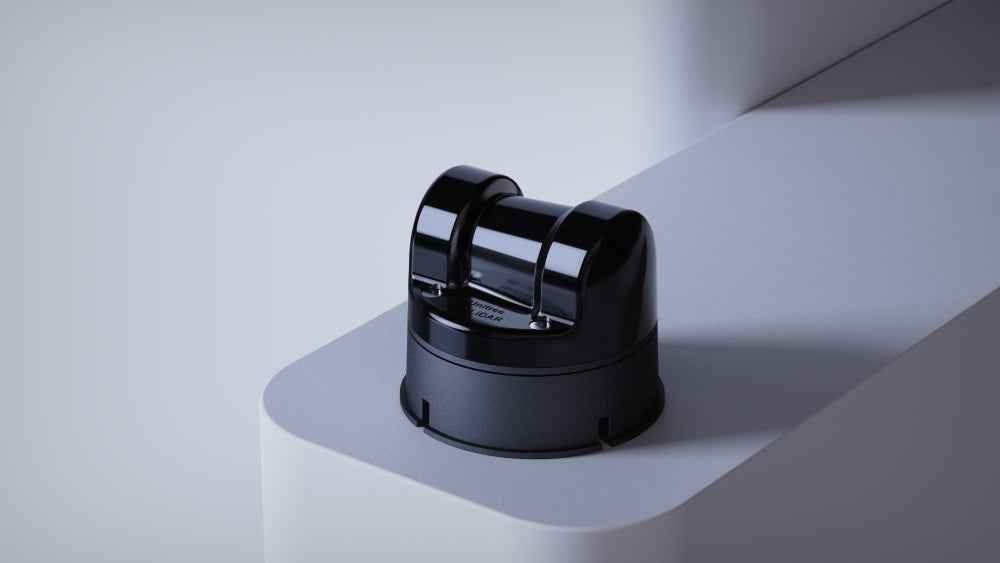

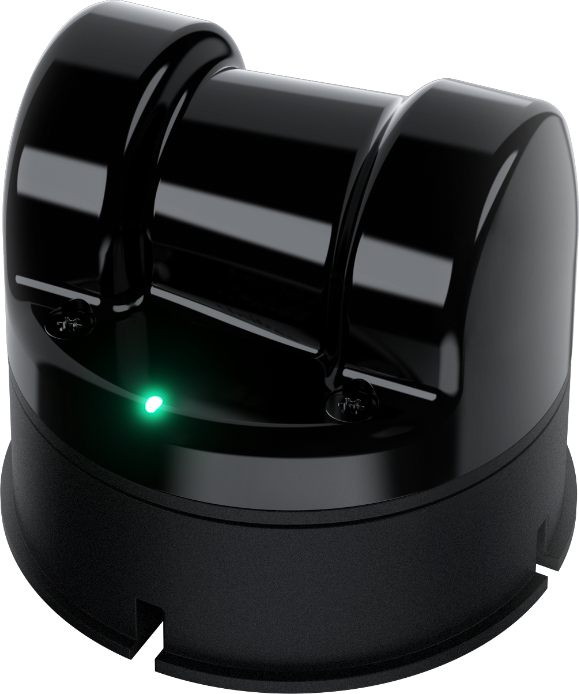

Unitree L2, New Version 4D 3D Lidar - 30 Meter 360° × 96° Omnidirectional Ultra-wide Angle Scanning - Sampling frequency 128000points/s , RJ45 UDP - Unitree L1 Upgarde
Unitree L2, New Version 4D 3D Lidar - 30 Meter 360° × 96° Omnidirectional Ultra-wide Angle Scanning - Sampling frequency 128000points/s , RJ45 UDP - Unitree L1 Upgarde
Couldn't load pickup availability
Unitree Unitree L2, New Version 4D 3D Lidar - 30 Meter 360° × 96° Omnidirectional Ultra-wide Angle Scanning - Sampling frequency 128000points/s, RJ45 UDP - Unitree L1 Upgarde — an embedded computing platform for industrial and edge applications.
Available from Ai-Paipai with local engineering support, datasheets and pre-flashed images where applicable, plus OEM / ODM options and worldwide shipping.
Specification
| Model | |||
| Model | L2 | L1 PM (Precision Measurement) | L1 RM (Remote Measurement) |
| Price | $4XX | $2XX | $3XX |
| Scanning distance | 30m(@90% reflectivity) | 20m(@90% reflectivity) | 30m(@90% reflectivity) |
| 15m(@10% reflectivity) | 10m(@10% reflectivity) | 15m(@10% reflectivity) | |
| FOV | 360°×96° | 360°×90° | 360°×90° |
| Sampling frequency | 128000points/s | 43200points/s | 43200points/s |
| Effective frequency | 64000points/s | 21600points/s | 21600points/s |
| Communication interface | NET UDP RJ45/TTL UART | TTL UART | TTL UART |
| 4D data | 3D position +1D grayscale(supports 2D mode) | 3D position +1D grayscale | 3D position +1D grayscale |
| Circumferential scanning frequency | 5.55Hz (Customizable adjustment) | 11Hz | 11Hz |
| Vertical scanning frequency | 216Hz | 180Hz | 180Hz |
| Distance resolution | 4.5mm | 8mm | 8mm |
| Measurement accuracy | ≤ 2.0cm | ± 2.0cm | ± 2.0cm |
| Nearbyblind area | 0.05m | ||
| IMU | 3-axis acceleration +3-axis gyroscope | ||
| Human eye safety level | Class 1(IEC60825-1:2014) Human eye safety | ||
| Anti-glare capability | >100KIux | ||
✅ Traceable Supply Chain — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied through a traceable supply chain. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
Why Buy From Ai-Paipai?
- Genuine & Traceable — sourced through a verifiable supply chain.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is Unitree L2, New Version 4D 3D Lidar - 30 Meter 360° × 96° Omnidirectional Ultra-wide Angle Scanning - Sampling frequency 128000points/s , RJ45 UDP - Unitree L1 Upgarde used for?
Unitree L2, New Version 4D 3D Lidar - 30 Meter 360° × 96° Omnidirectional Ultra-wide Angle Scanning - Sampling frequency 128000points/s , RJ45 UDP - Unitree L1 Upgarde is a Embedded Computing from Unitree. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does Unitree L2, New Version 4D 3D Lidar - 30 Meter 360° × 96° Omnidirectional Ultra-wide Angle Scanning - Sampling frequency 128000points/s , RJ45 UDP - Unitree L1 Upgarde include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order Unitree L2, New Version 4D 3D Lidar - 30 Meter 360° × 96° Omnidirectional Ultra-wide Angle Scanning - Sampling frequency 128000points/s , RJ45 UDP - Unitree L1 Upgarde with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is Unitree L2, New Version 4D 3D Lidar - 30 Meter 360° × 96° Omnidirectional Ultra-wide Angle Scanning - Sampling frequency 128000points/s , RJ45 UDP - Unitree L1 Upgarde shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Model | L2 / L1 PM (Precision Measurement) / L1 RM (Remote Measurement) |
| Price | $4XX / $2XX / $3XX |
| Scanning distance | 30m(@90% reflectivity) / 20m(@90% reflectivity) / 30m(@90% reflectivity) |
| FOV | 360°×96° / 360°×90° / 360°×90° |
| Sampling frequency | 128000points/s / 43200points/s / 43200points/s |
| Effective frequency | 64000points/s / 21600points/s / 21600points/s |
| Communication interface | NET UDP RJ45/TTL UART / TTL UART / TTL UART |
| 4D data | 3D position +1D grayscale(supports 2D mode) / 3D position +1D grayscale / 3D position +1D grayscale |
| Circumferential scanning frequency | 5.55Hz (Customizable adjustment) / 11Hz / 11Hz |
| Vertical scanning frequency | 216Hz / 180Hz / 180Hz |
| Distance resolution | 4.5mm / 8mm / 8mm |
| Measurement accuracy | ≤ 2.0cm / ± 2.0cm / ± 2.0cm |
| Nearbyblind area | / 0.05m / |
| IMU | 3-axis acceleration +3-axis gyroscope |
| Human eye safety level | Class 1(IEC60825-1:2014) Human eye safety |
| Anti-glare capability | >100KIux |
