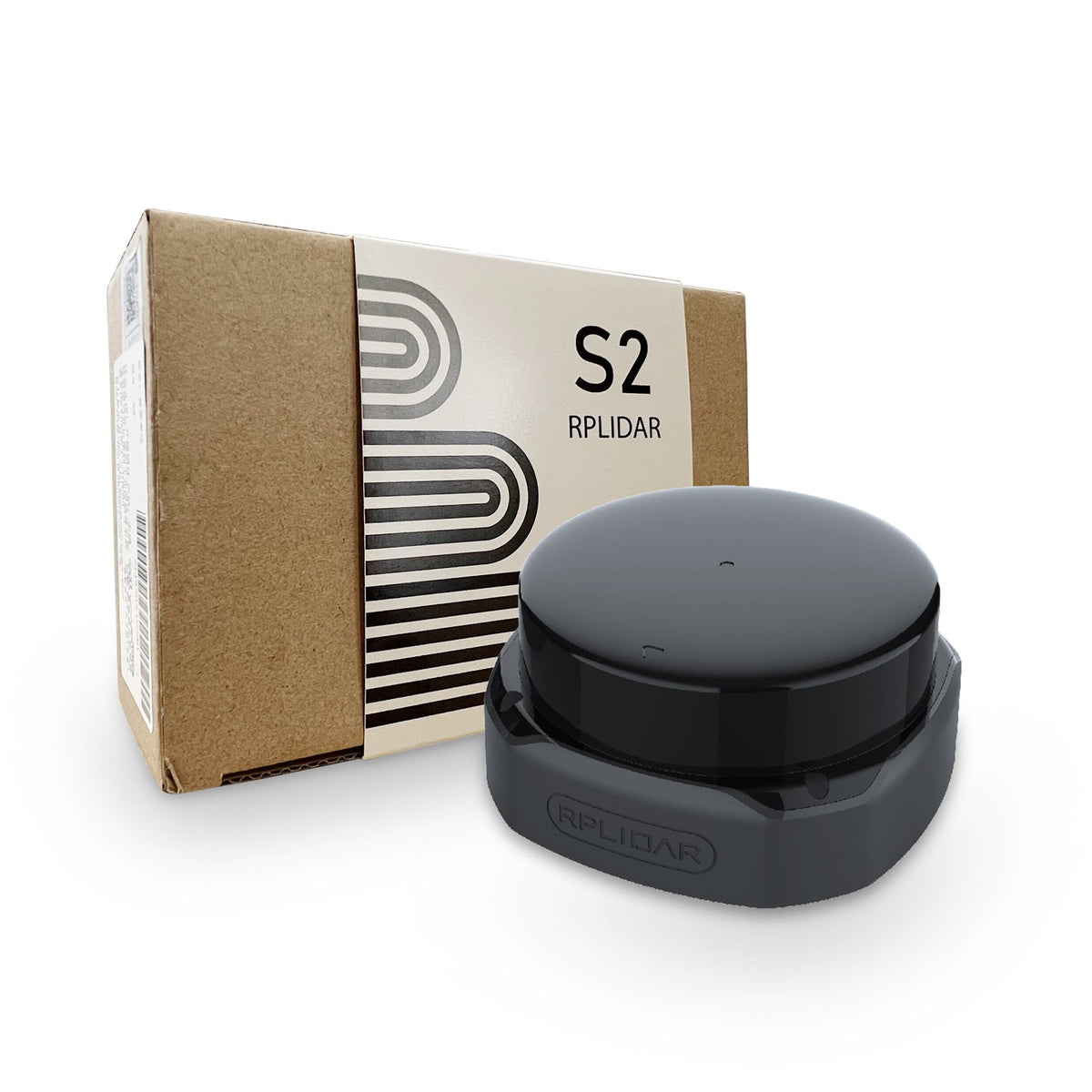

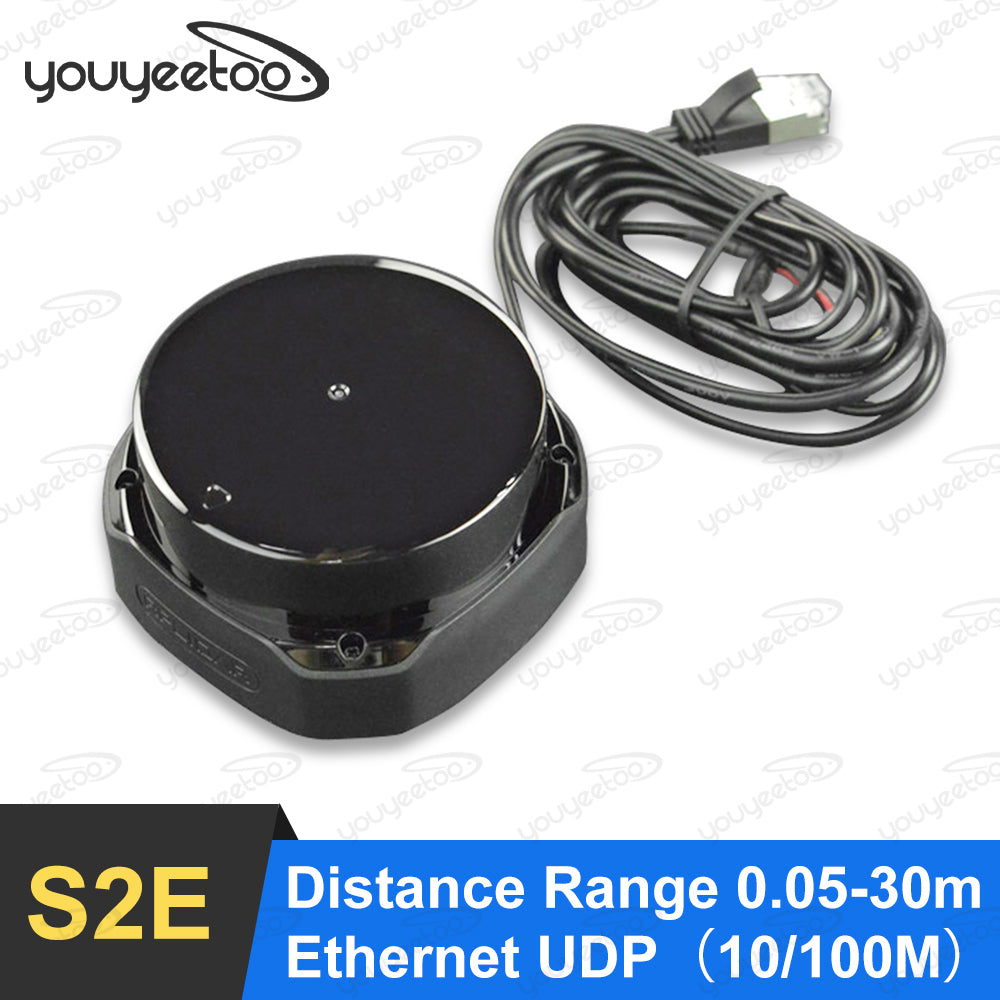

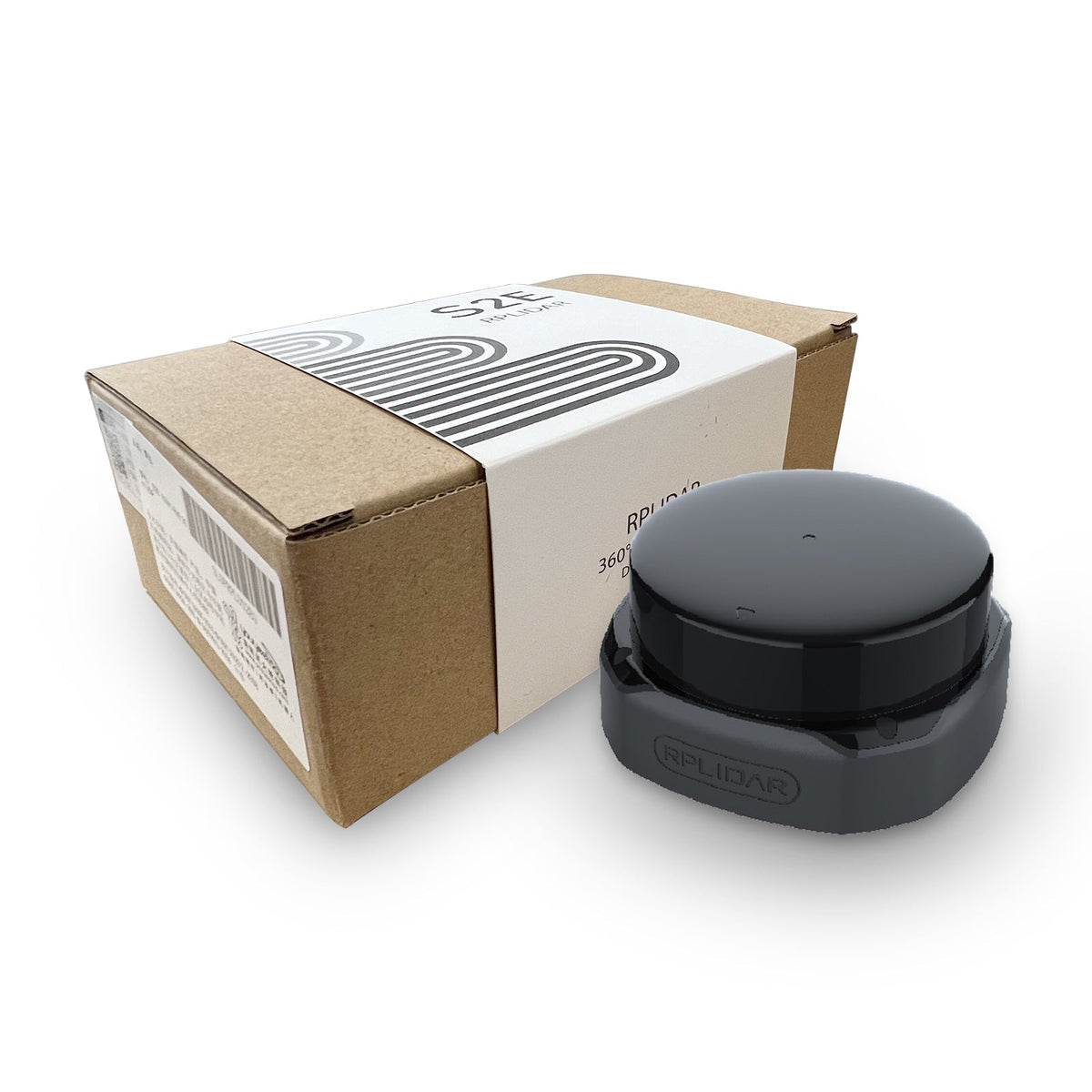

Slamtec RPLIDAR S2E TOF Lidar Sensor- (30m, 12V, Ethernet UDP, IP65)
Slamtec RPLIDAR S2E TOF Lidar Sensor- (30m, 12V, Ethernet UDP, IP65)
Couldn't load pickup availability
Measurement Performance
| Recommended applications | Works well both in an indoor and outdoor environment, with reliable resistance to daylight | |||

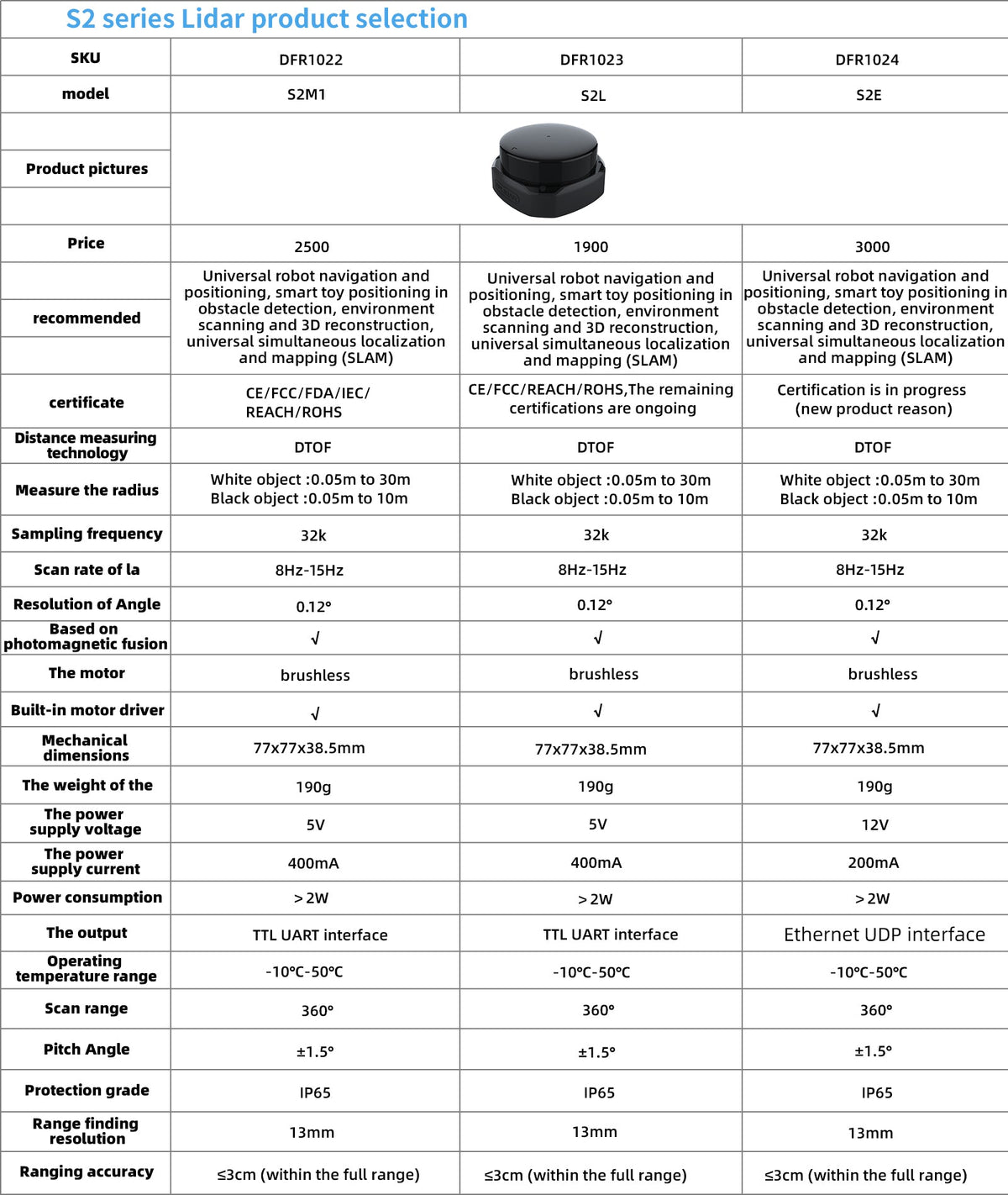

| Product | S2L | S2 | S2P | S2E |
| Models | S2M1-RxL | S2M1-Rx | S2M1-RxP | S2M1-RxE |
| Distance Range | 0.05-18m (90% reflection) | 0.05-30m (90% reflection) | 0.05-50m (90% reflection) | 0.05-30m (90% reflection) |
| 0.05-8m (10% reflection) | 0.05-10m (10% reflection) | 0.05-15m (10% reflection) | 0.05-10m (10% reflection) | |
| Blind Range | 0.05m | |||
| Sample Rate | 32000 times per second | |||
| Scan Rate | 10Hz | |||
| Angular Resolution | 0.1125° | |||
| Scan Field Flatness | ±1.5° | |||
| Accuracy | ±30mm | |||
| Distance Resolution | 13mm | |||

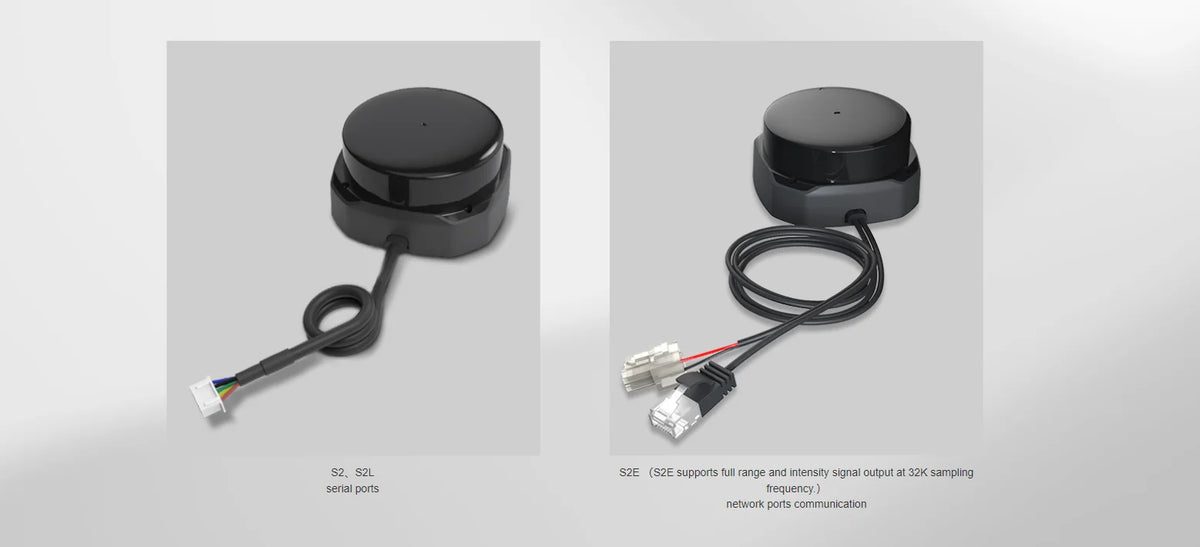

| Communication Interface | URAT Serial (1M) | URAT Serial (1M) | URAT Serial (1M) | Ethernet UDP (10/100M) |
| System Voltage | 5V | 12V | ||
| Power Consumption | > 2W | |||
| Proof Level | IP65 | |||
| Temperature Range | -10℃-50℃ | |||
| Note: X indicates 1 or 2, negative pitch angle is 1 (-1.5°-0°), positive pitch angle is 2 (0°-1.5°). | ||||
✅ Traceable Supply Chain — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied through a traceable supply chain. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
Why Buy From Ai-Paipai?
- Genuine & Traceable — sourced through a verifiable supply chain.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is Slamtec RPLIDAR S2E TOF Lidar Sensor- (30m, 12V, Ethernet UDP, IP65) used for?
Slamtec RPLIDAR S2E TOF Lidar Sensor- (30m, 12V, Ethernet UDP, IP65) is a Embedded Computing from Slamtec. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does Slamtec RPLIDAR S2E TOF Lidar Sensor- (30m, 12V, Ethernet UDP, IP65) include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order Slamtec RPLIDAR S2E TOF Lidar Sensor- (30m, 12V, Ethernet UDP, IP65) with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is Slamtec RPLIDAR S2E TOF Lidar Sensor- (30m, 12V, Ethernet UDP, IP65) shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.

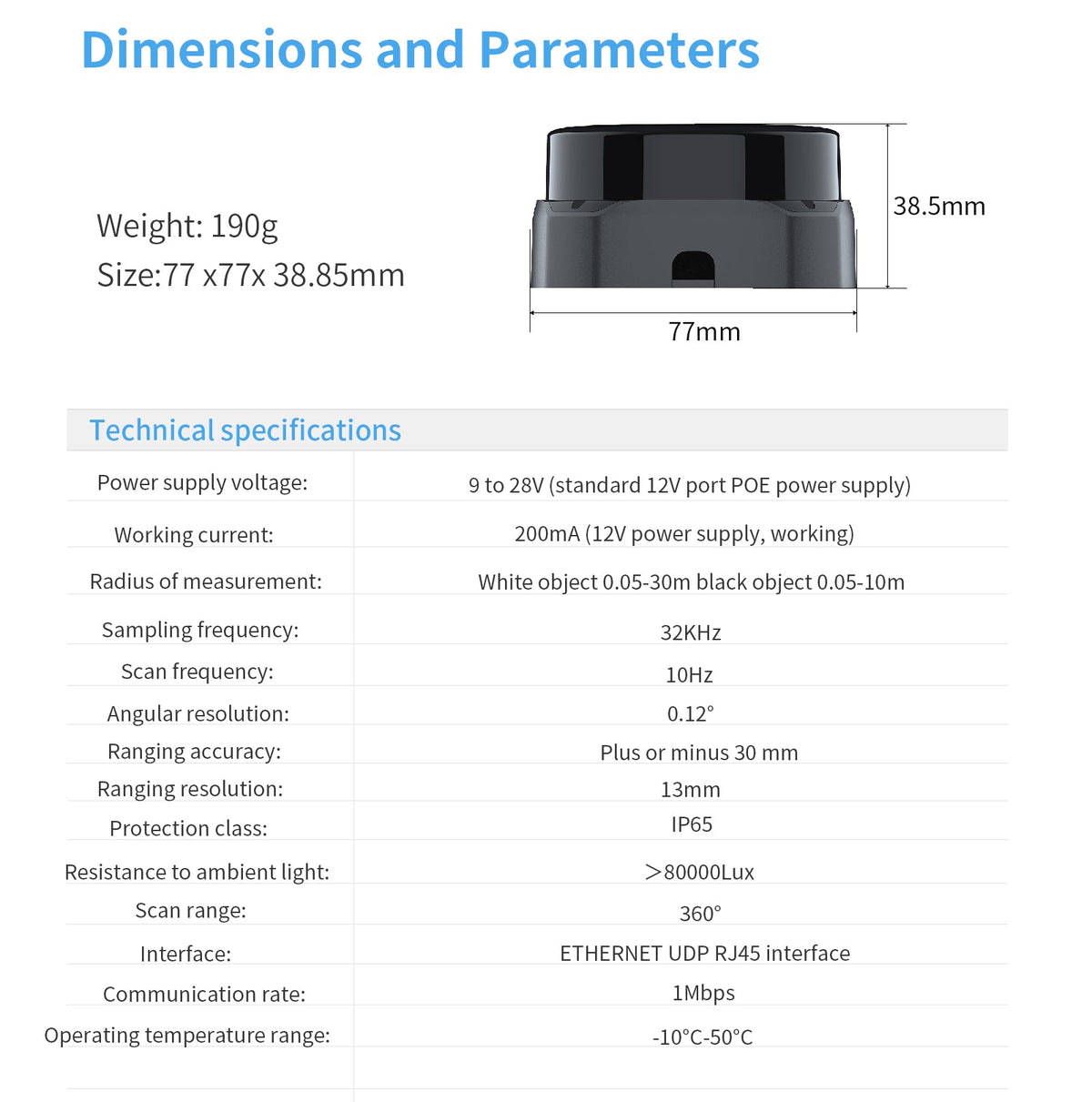

Specifications
| Recommended applications | Works well both in an indoor and outdoor environment, with reliable resistance to daylight |
| Product | S2L / S2 / S2P / S2E |
| Models | S2M1-RxL / S2M1-Rx / S2M1-RxP / S2M1-RxE |
| Distance Range | 0.05-18m (90% reflection) / 0.05-30m (90% reflection) / 0.05-50m (90% reflection) / 0.05-30m (90% reflection) |
| 0.05-8m (10% reflection) | 0.05-10m (10% reflection) / 0.05-15m (10% reflection) / 0.05-10m (10% reflection) |
| Blind Range | 0.05m |
| Sample Rate | 32000 times per second |
| Scan Rate | 10Hz |
| Angular Resolution | 0.1125° |
| Scan Field Flatness | ±1.5° |
| Accuracy | ±30mm |
| Distance Resolution | 13mm |
| Communication Interface | URAT Serial (1M) / URAT Serial (1M) / URAT Serial (1M) / Ethernet UDP (10/100M) |
| System Voltage | 5V / / 12V |
| Power Consumption | > 2W |
| Proof Level | IP65 |
| Temperature Range | -10℃-50℃ |
