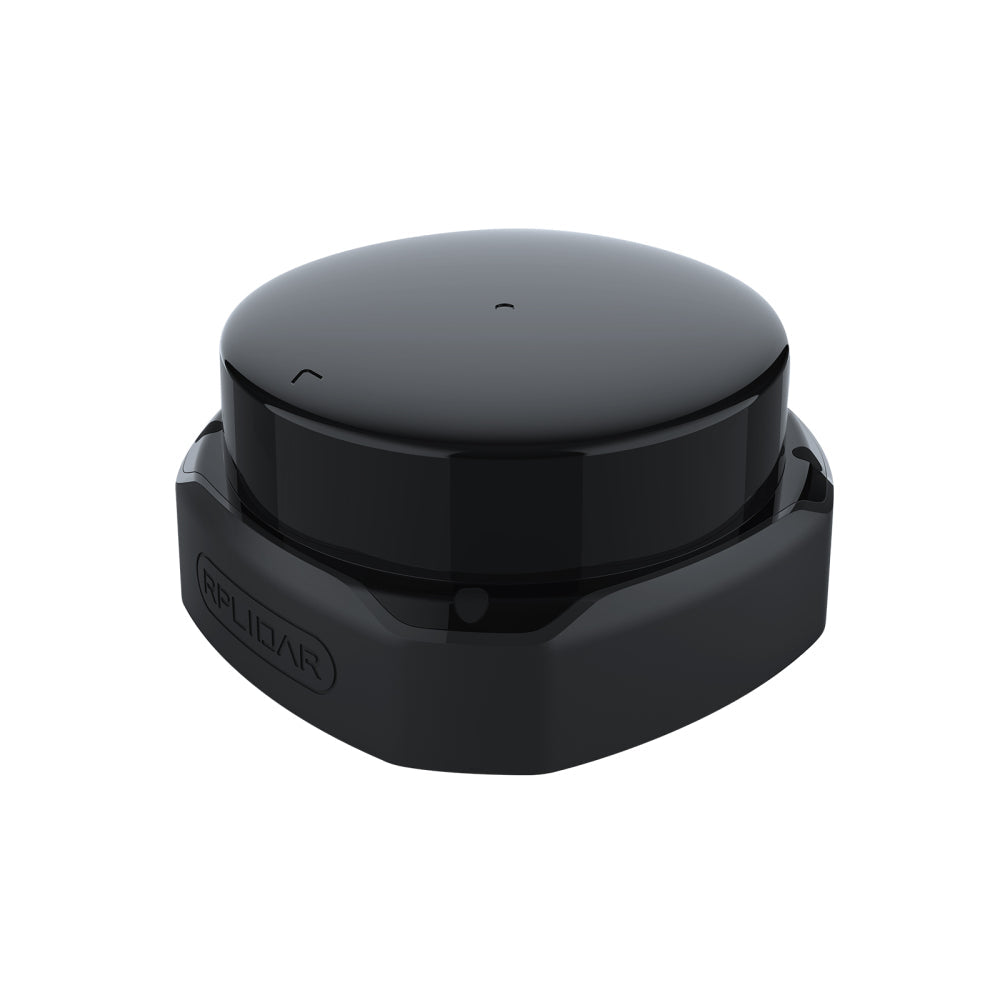

RPLIDAR S2 360 degree Long Range Scanning Radius LIDAR Scanner - RPLIDAR S2/S2E/ S2L/S2P - Max 50 Meter
RPLIDAR S2 360 degree Long Range Scanning Radius LIDAR Scanner - RPLIDAR S2/S2E/ S2L/S2P - Max 50 Meter
Couldn't load pickup availability
| Appearance | |||||
| Product | S2L | S2 | S2P | S2E | |
| Model | S2M1-RxL | S2M1-Rx | S2M1-RxP | S2M1-RxE | |
| Measuring Range | 90% reflection | 0.05m-18m | 0.05m-30m | 0.05m-50m | 0.05m-30m |
| 10% reflection | 0.05m-8m | 0.05m-10m | 0.05m-15m | 0.05m-10m | |
| Sampling Frequency | 32k | 32k | 32K | 32k | |
| Rotational Speed (Typical value) | 10Hz | 10Hz | 10Hz | 10Hz | |
| Angular Resolution (Typical value) | 0.12° | 0.12° | 0.12° | 0.12° | |
|
Scan Field Flatness |
±1.5° | ±1.5° | ±1.5° | ±1.5° | |
|
Accuracy |
±30mm | ±30mm | ±30mm | ±30mm | |
|
Distance Resolution |
13mm | 13mm | 13mm | 13mm | |
|
Communication Interface |
URAT Serial (1M) | URAT Serial (1M) | URAT Serial (1M) | Ethernet UDP (10/100M) | |
|
System Voltage |
5V | 5V | 5V | 12V | |
|
Proof Level |
IP65 | IP65 | IP65 | IP65 | |
✅ Traceable Supply Chain — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied through a traceable supply chain. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
Why Buy From Ai-Paipai?
- Genuine & Traceable — sourced through a verifiable supply chain.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is RPLIDAR S2 360 degree Long Range Scanning Radius LIDAR Scanner - RPLIDAR S2/S2E/ S2L/S2P - Max 50 Meter used for?
RPLIDAR S2 360 degree Long Range Scanning Radius LIDAR Scanner - RPLIDAR S2/S2E/ S2L/S2P - Max 50 Meter is a Embedded Computing from Slamtec. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does RPLIDAR S2 360 degree Long Range Scanning Radius LIDAR Scanner - RPLIDAR S2/S2E/ S2L/S2P - Max 50 Meter include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order RPLIDAR S2 360 degree Long Range Scanning Radius LIDAR Scanner - RPLIDAR S2/S2E/ S2L/S2P - Max 50 Meter with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is RPLIDAR S2 360 degree Long Range Scanning Radius LIDAR Scanner - RPLIDAR S2/S2E/ S2L/S2P - Max 50 Meter shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Appearance | / |
| Product | S2L / S2 / S2P / S2E |
| Model | S2M1-RxL / S2M1-Rx / S2M1-RxP / S2M1-RxE |
| Measuring Range | 90% reflection / 0.05m-18m / 0.05m-30m / 0.05m-50m / 0.05m-30m |
| 10% reflection | 0.05m-8m / 0.05m-10m / 0.05m-15m / 0.05m-10m |
| Sampling Frequency | 32k / 32k / 32K / 32k |
| Rotational Speed (Typical value) | 10Hz / 10Hz / 10Hz / 10Hz |
| Angular Resolution (Typical value) | 0.12° / 0.12° / 0.12° / 0.12° |
| Scan Field Flatness | ±1.5° / ±1.5° / ±1.5° / ±1.5° |
| Accuracy | ±30mm / ±30mm / ±30mm / ±30mm |
| Distance Resolution | 13mm / 13mm / 13mm / 13mm |
| Communication Interface | URAT Serial (1M) / URAT Serial (1M) / URAT Serial (1M) / Ethernet UDP (10/100M) |
| System Voltage | 5V / 5V / 5V / 12V |
| Proof Level | IP65 / IP65 / IP65 / IP65 |
