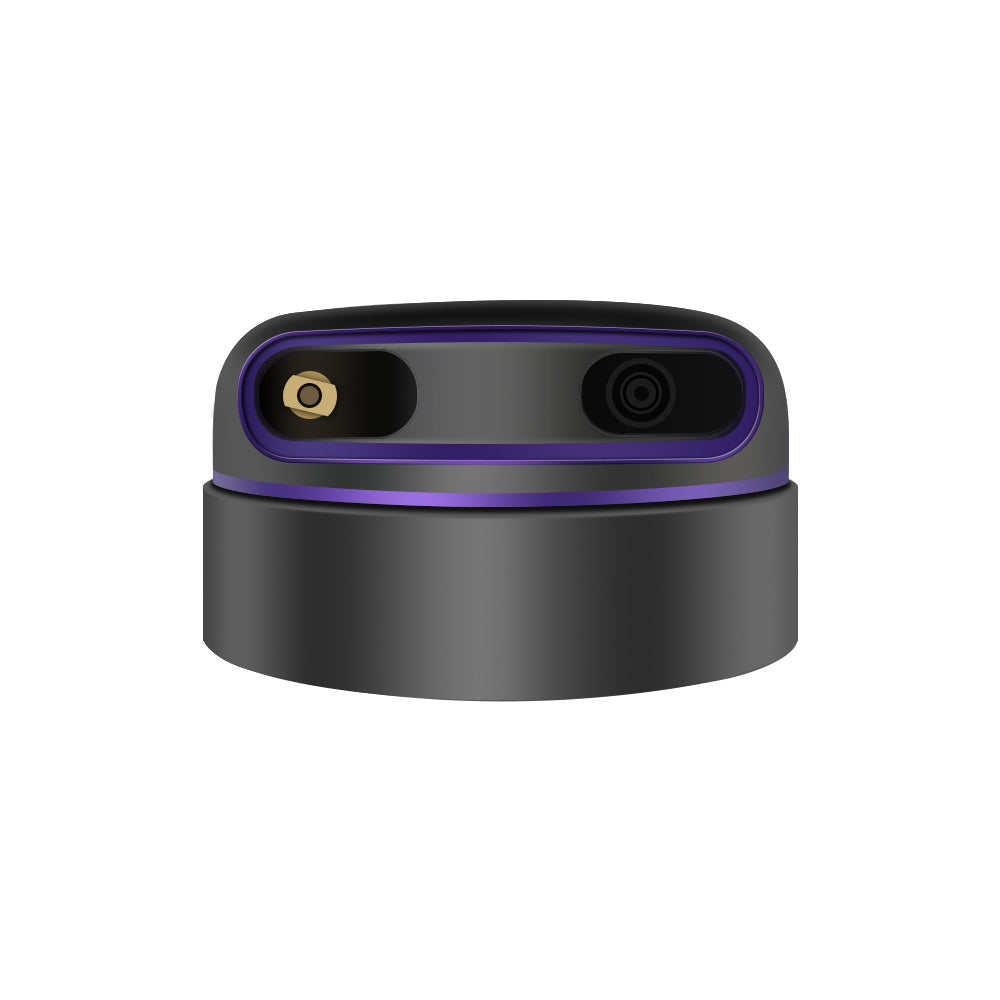

Slamtec RPLIDAR A3M1 (25M) - 2D Laser Range Sensor Kit,25meters Scanning Radius Lidar Module for Robot/Navigation AGV/UAV/Maker Education

Ranging 16000 Times per Second
The sample rate of LIDAR directly decides whether the robot can build a map quickly and accurately.
RPLIDAR A3 improves the internal optical design and algorithm system to make the sample rate up to 16000 times per second, which is much better than most competitors.

25 Meters Range Radius
With algorithm optimization, the ranging radius of RPLIDAR A3 has been increased to 25 meters,
which means more environmental outline information is collected.

Indoor and Outdoor Availability
PLIDRA A3 supports working under two alternative modes: enhanced mode and outdoor mode.
In enhanced mode, RPLIDAR A3 works with the maximum ranging radius and sampling rate to realize
an optimistic mapping performance in indoor environments.
While in outdoor mode, RPLIDAR A3 works with a more reliable resistance to daylight interference.
It keeps its stable performance when detecting white and black objects.

360 Degree Omnidirectional Laser Range Scanning
The ranging core of RPLIDAR A3 runs clockwise to perform a 360 degree omnidirectional laser range scanning for its surrounding environment and then generate an outline map for the environment.

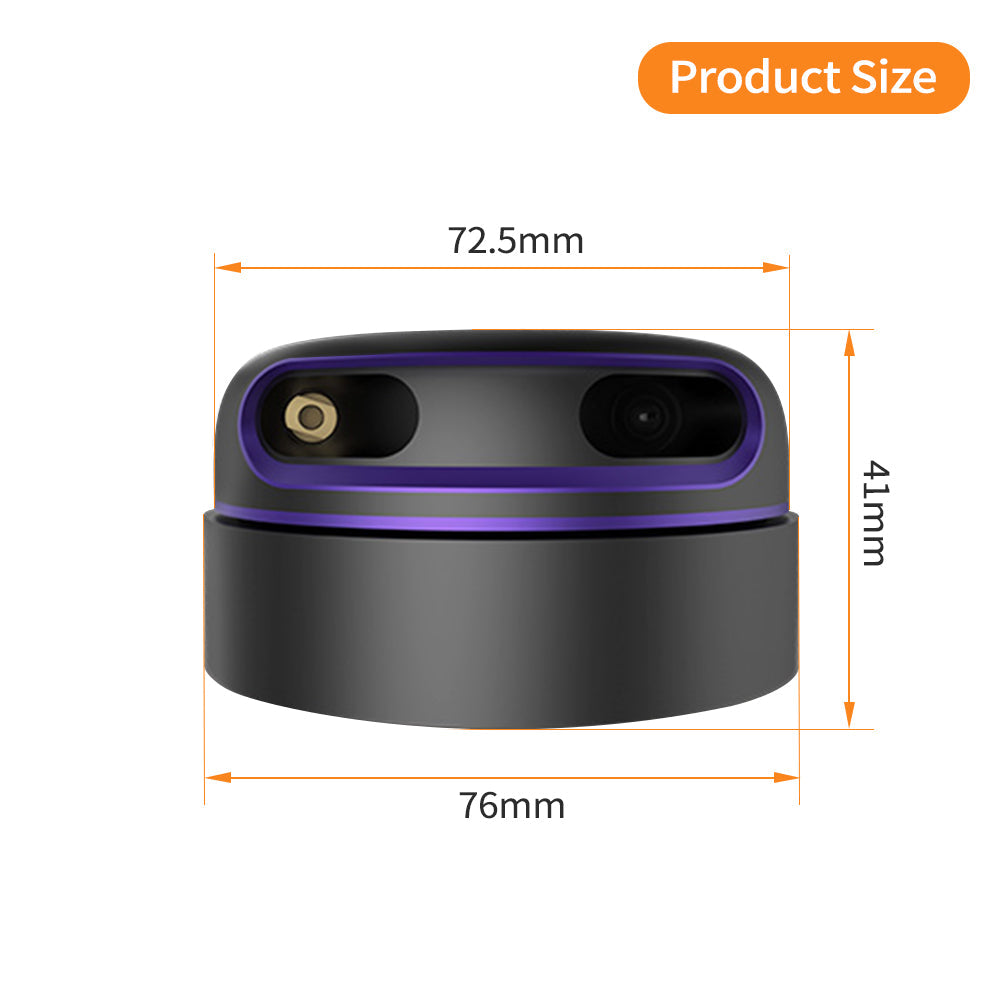

4 Centimeters Ultra-thin
With carefully designed parts and an internal mechanical system, the RPLIDAR A3 keeps its exceptional performance within its 4-cm thick compact size. It is ideal for all kinds of service robots.

Brushless Motor, Low Noise, New Non-contact Drive
Compared with the traditional belt drive mode, RPLIDAR A3 uses the self-designed brushless motor to reduce mechanical friction in running.
Therefore, the RPLIDAR A3 can run smoothly without any noise.

OPTMAG Original Design, 5 Years Ultra-long Life
Most traditional non-solid LIDARs use slip rings to transfer power and data information; however, they only have thousands of hours of life due to mechanical wear. SLAMTEC has integrated wireless power and optical communication technology to self-design the OPTMAG technology, which breaks the life limitation of the traditional LIDAR system. It fixes the electrical connection failure caused by physical wear so as to prolong the life to 5 years and even more.

The RPLIDAR A3 system adopts the low-power infrared laser light as its light source, and drives it by using modulated pulse. The laser emits light in a very short time frame which can ensure its safety to humans and pets. It has already reached Class 1 Safety Standard.

Why Buy From Ai-Paipai?

• Genuine & Traceable — sourced through a verifiable supply chain.
• Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
• OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
• One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.

Specifications
