Slamtec

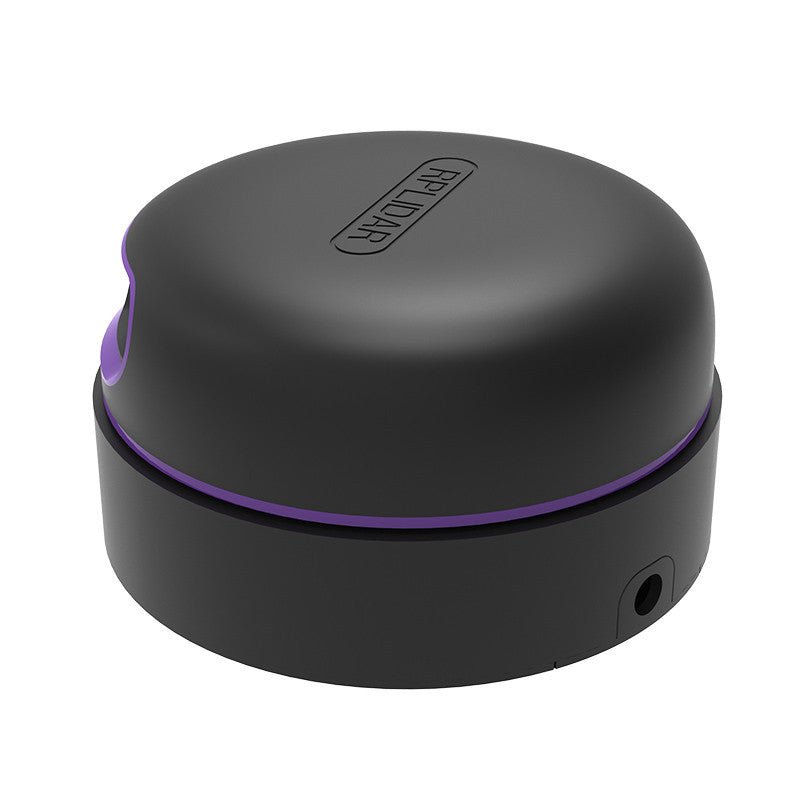

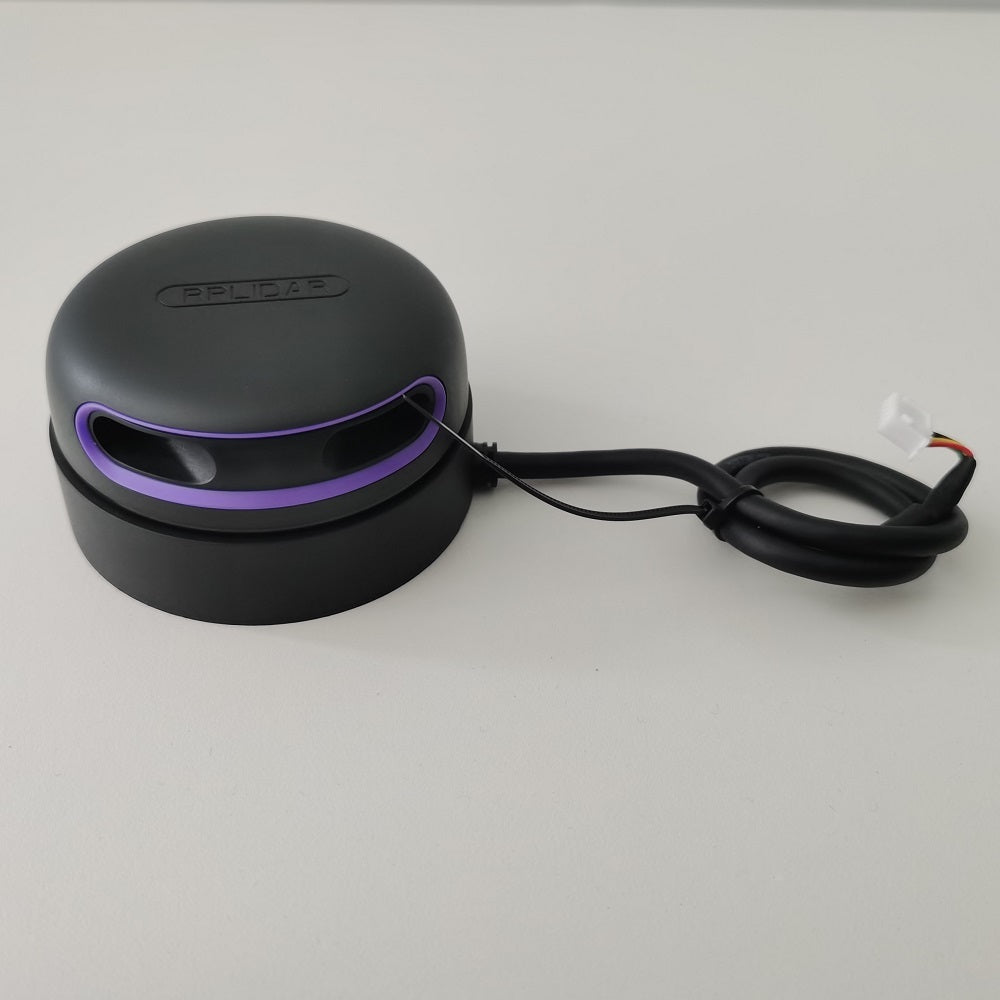

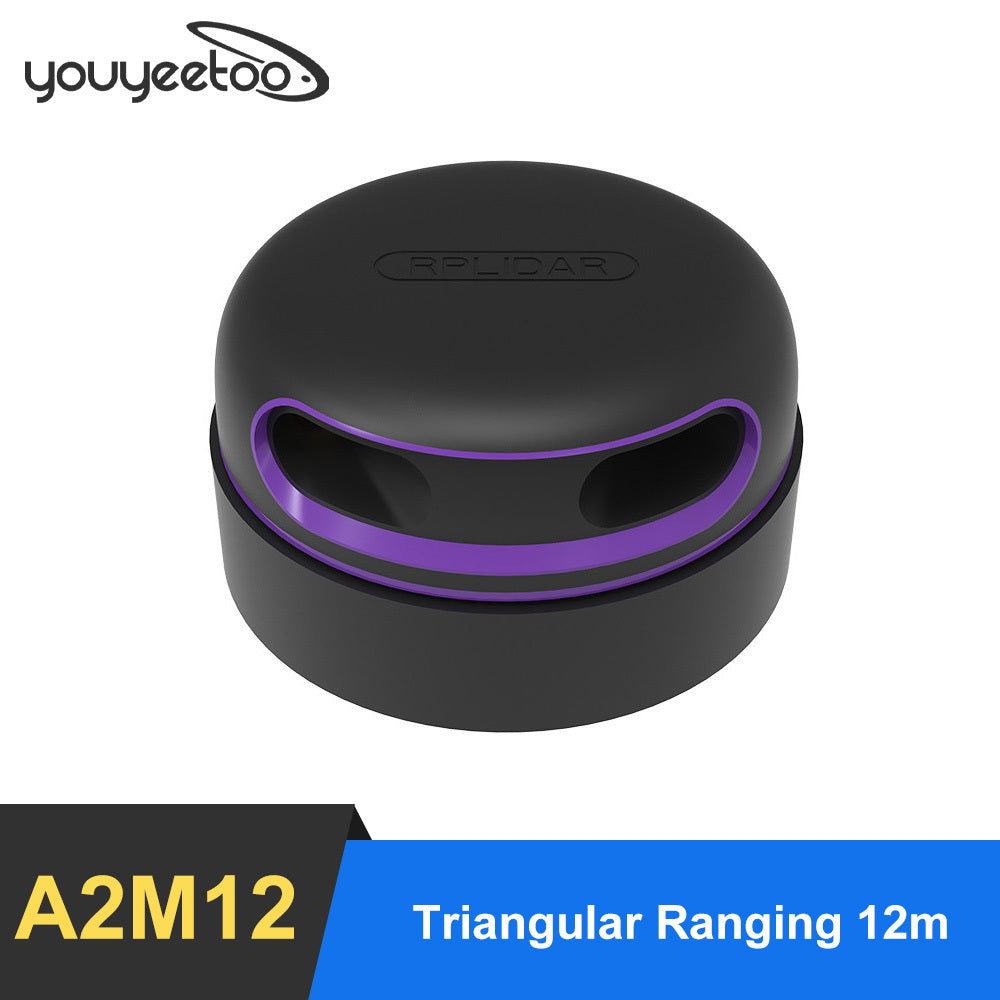

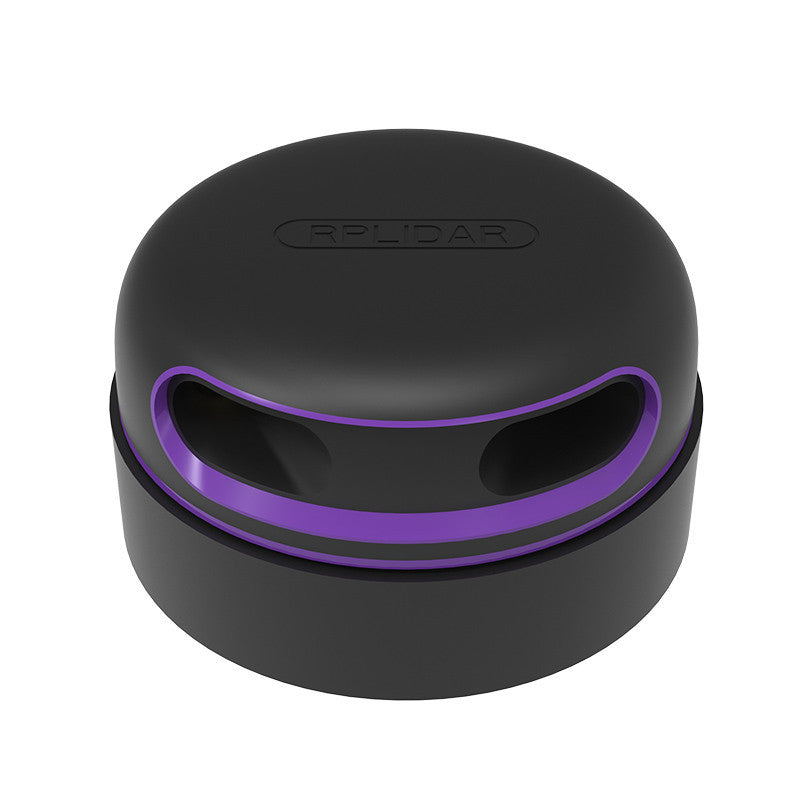

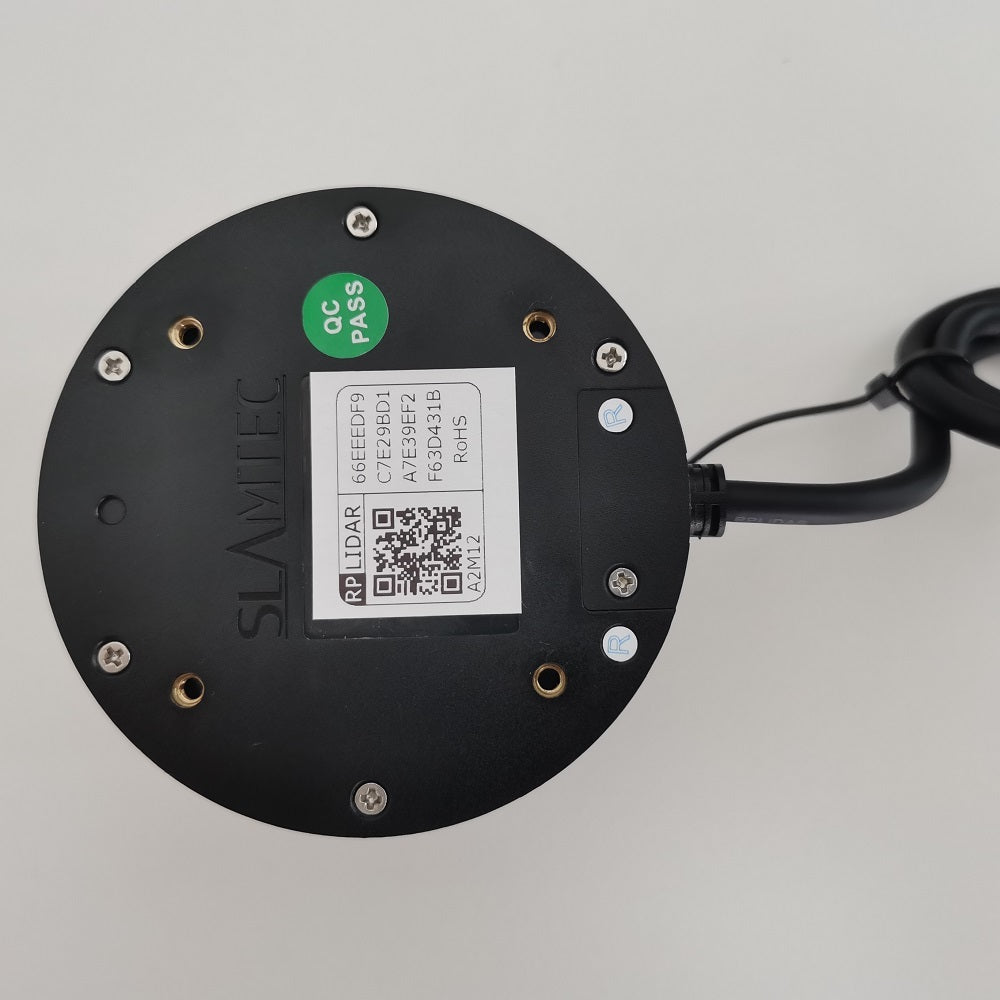

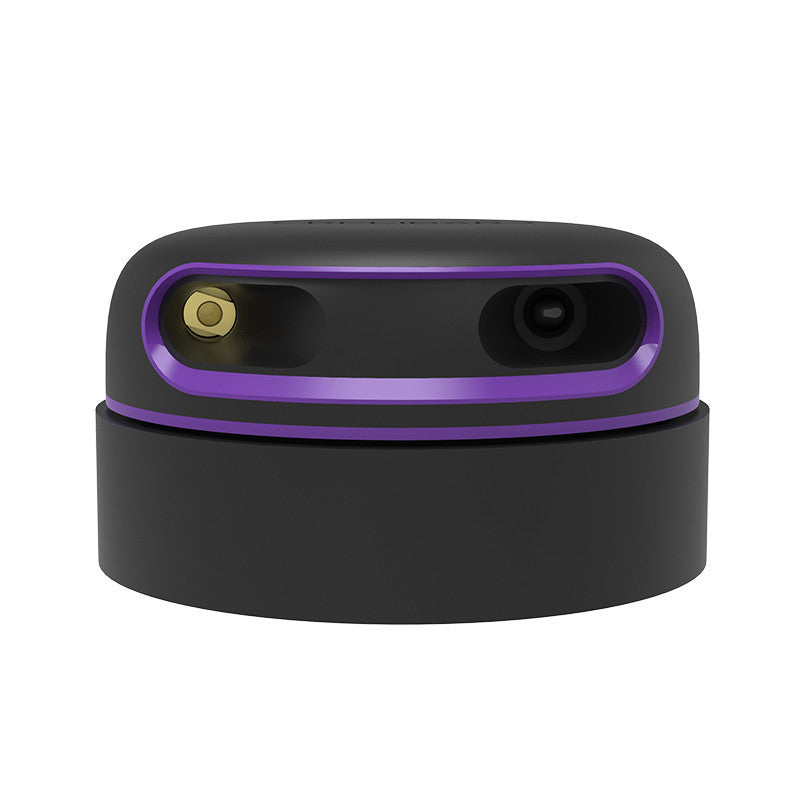

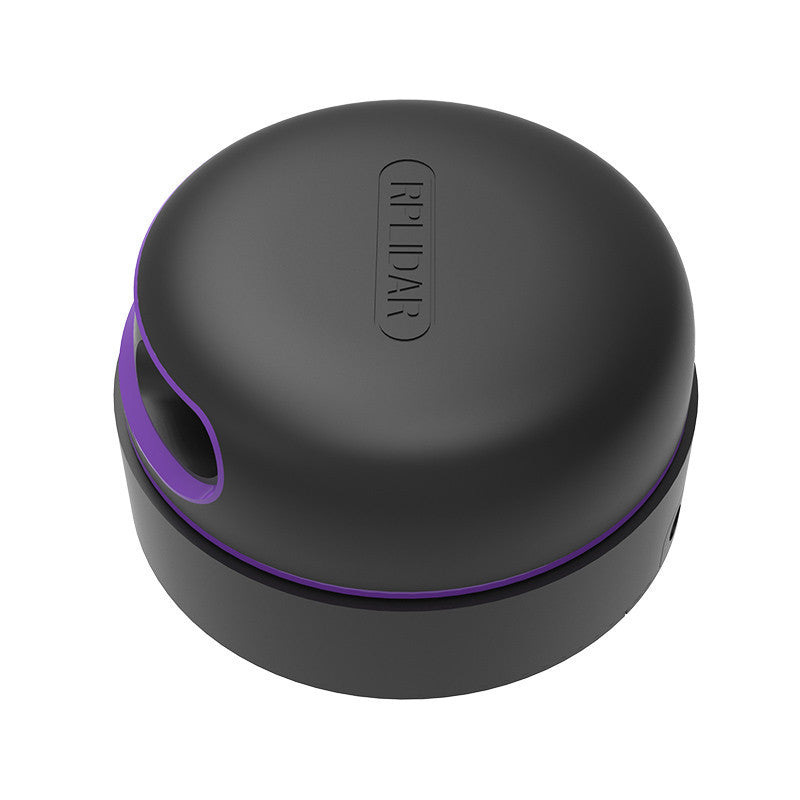

RPLIDAR A2M12 - (12m) 360 Degree Laser Range Scanne Triangular Ranging - lidar Mapper Rplidar Scanner Kit sensor measurement tool
RPLIDAR A2M12 - (12m) 360 Degree Laser Range Scanne Triangular Ranging - lidar Mapper Rplidar Scanner Kit sensor measurement tool
Couldn't load pickup availability
✅ Traceable Supply Chain — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied through a traceable supply chain. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
Detailed Descriptions
|
Recommended applications |
Consumer robot, Commercial robot, Multi-point touch |
||
|
Appearance |
|
|
|
|
Model |
A2M7 |
A2M8 |
A2M12 |
|
Measuring Range |
0.2m - 16m |
0.2m - 12m |
0.2m - 12m |
|
Sampling Frequency |
16K |
8K |
16K |
|
Rotational Speed |
10Hz (5Hz-15Hz) |
10Hz (5Hz-15Hz) |
10Hz (5Hz-15Hz) |
|
Angular Resolution |
0.225° |
0.45° |
0.225° |
|
Scan Field Flatness |
±1.5° |
||
|
Proof Level |
Class 1 |
||
|
System Voltage |
5V |
||
|
System Current |
450mA - 600mA |
||
|
Power Consumption |
2.25W-3W |
||
|
Output |
UART Serial |
UART Serial |
UART Serial |
|
(256000bps) |
(115200bps) |
(256000bps) |
|
|
Temperature Range |
0℃-40℃ |
||
|
Angular Range |
360° |
||
|
Range Resolution |
≤1% of the range (≤12m) |
||
|
≤2% of the range (12m-16m) |
|||
|
Accuracy |
1% of the range (≤3 m) |
||
|
2% of the range (3-5 m) |
|||
|
2.5% of the range (5-25m) |
|||

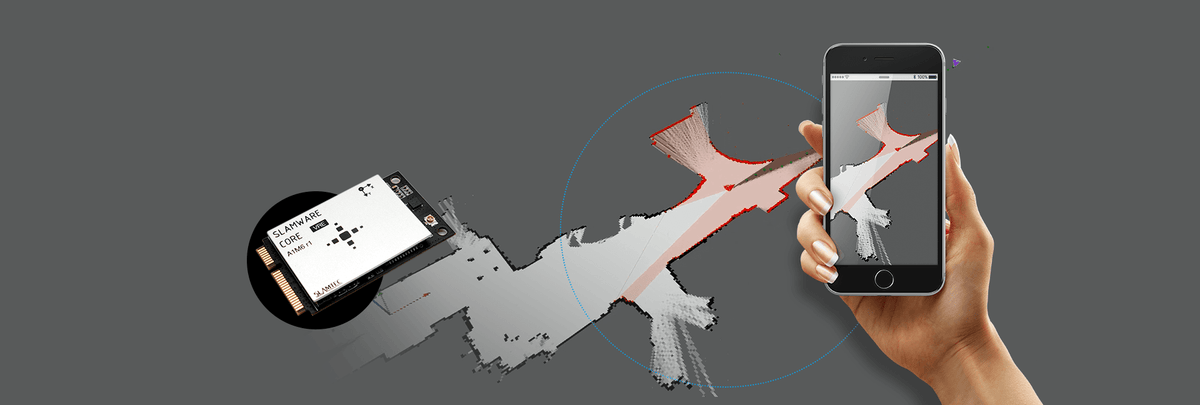

 Robot simultaneous localization and mapping (SLAM) |
 Environment scanning and 3D rebuilding |
 Obstacle detecting and avoiding |
 Multi-point touching and man-mechine interaction |
Laser Power Specification
Mechanical Dimensions
The mechanical dimensions of the RPLIDAR A2M12 are shown as below:
?
Why Buy From Ai-Paipai?
- Genuine & Traceable — sourced through a verifiable supply chain.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Frequently asked questions
What is RPLIDAR A2M12 - (12m) 360 Degree Laser Range Scanne Triangular Ranging - lidar Mapper Rplidar Scanner Kit sensor measurement tool used for?
RPLIDAR A2M12 - (12m) 360 Degree Laser Range Scanne Triangular Ranging - lidar Mapper Rplidar Scanner Kit sensor measurement tool is a Embedded Computing from Slamtec. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does RPLIDAR A2M12 - (12m) 360 Degree Laser Range Scanne Triangular Ranging - lidar Mapper Rplidar Scanner Kit sensor measurement tool include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order RPLIDAR A2M12 - (12m) 360 Degree Laser Range Scanne Triangular Ranging - lidar Mapper Rplidar Scanner Kit sensor measurement tool with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is RPLIDAR A2M12 - (12m) 360 Degree Laser Range Scanne Triangular Ranging - lidar Mapper Rplidar Scanner Kit sensor measurement tool shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Recommended applications | Consumer robot, Commercial robot, Multi-point touch |
| Appearance | / / |
| Model | A2M7 / A2M8 / A2M12 |
| Measuring Range | 0.2m - 16m / 0.2m - 12m / 0.2m - 12m |
| Sampling Frequency | 16K / 8K / 16K |
| Rotational Speed | 10Hz (5Hz-15Hz) / 10Hz (5Hz-15Hz) / 10Hz (5Hz-15Hz) |
| Angular Resolution | 0.225° / 0.45° / 0.225° |
| Scan Field Flatness | ±1.5° |
| Proof Level | Class 1 |
| System Voltage | 5V |
| System Current | 450mA - 600mA |
| Power Consumption | 2.25W-3W |
| Output | UART Serial / UART Serial / UART Serial |
| (256000bps) | (115200bps) / (256000bps) |
| Temperature Range | 0℃-40℃ |
| Angular Range | 360° |
| Range Resolution | ≤1% of the range (≤12m) |
| Accuracy | 1% of the range (≤3 m) |
| Robot simultaneous localization and mapping (SLAM) | Environment scanning and 3D rebuilding |
| Obstacle detecting and avoiding | Multi-point touching and man-mechine interaction |
