ROC-RK3566-PC Quad-Core ARM Mini Single Board Computer
ROC-RK3566-PC Quad-Core ARM Mini Single Board Computer
Couldn't load pickup availability
ROC-RK3566-PC Quad-Core ARM Mini Single Board Computer is a Firefly product sold by Ai-Paipai. Key specifications — Soc: RockChip RK3566 · Ram: 2GB / 4GB / 8GB LPDDR4 32Bit,supports all-data-link ECC · Storage: 32GB / 64GB / 128GB eMMC M.2 PCIe 2.0 × 1 (Expand with… · Ethernet: Supports Gigabit Ethernet (RJ45. 1000 Mbps) · Display: 1 × HDMI2.0. Supports 4K@60fps output 1 × MIPI DSI.…. Typical applications: machine vision, industrial automation and digital signage and HMI. Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.) is an authorized distributor providing local technical support, pre-installed SDK / OS images, OEM / ODM customization, and worldwide shipping.
✅ Authorized Distributor — Ai-Paipai (Shenzhen AiPaipai Intelligent Technology Co., Ltd.)
This product is supplied by an authorized distributor of the original brand. We provide local technical support, pre-installed SDK / mirror images, and OEM / ODM customization, plus fast global shipping.
The ROC-RK3566-PC SBC is equipped with an RK3566 quad-core 64-bit processor, supports up to 8 GB of memory, and features an M.2 interface that can be expanded to accommodate a large-capacity hard disk. It supports multiple systems and startup methods, and has exclusive applications and forums, which bring endless fun to geeks and makers.
- Product Wiki: Click Here
- Product Datasheet: Click Here
Feature
- RK3566 Quad-core 64-bit Processor: RK3566 quad-core 64-bit Cortex-A55 processor, with a main frequency of up to 1.8GHz, greatly improved efficiency. Adopting 22nm photolithography process, low power consumption and high performance.
- 8GB Large RAM, All-data-link ECC: It supports up to 8GB RAM, up to 32-bit width, and full data link ECC, making data more secure and reliable, meeting the needs of running large memory product applications.
- Integrated Co-processors: It integrates dual-core GPU, high-performance VPU and efficient NPU. GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan 1.1. VPU can realize 4K 60fps H.264/VP9 video decoding and 1080P 60fps H.264 video encoding. NPU supports one-click switching of mainstream frameworks such as Caffe/TensorFlow.
- M.2 Interface Expansion: The onboard M.2 PCIe 2.0 interface can be connected to NVMe SSD, which has the advantages of high-speed reading and writing and large-capacity storage.

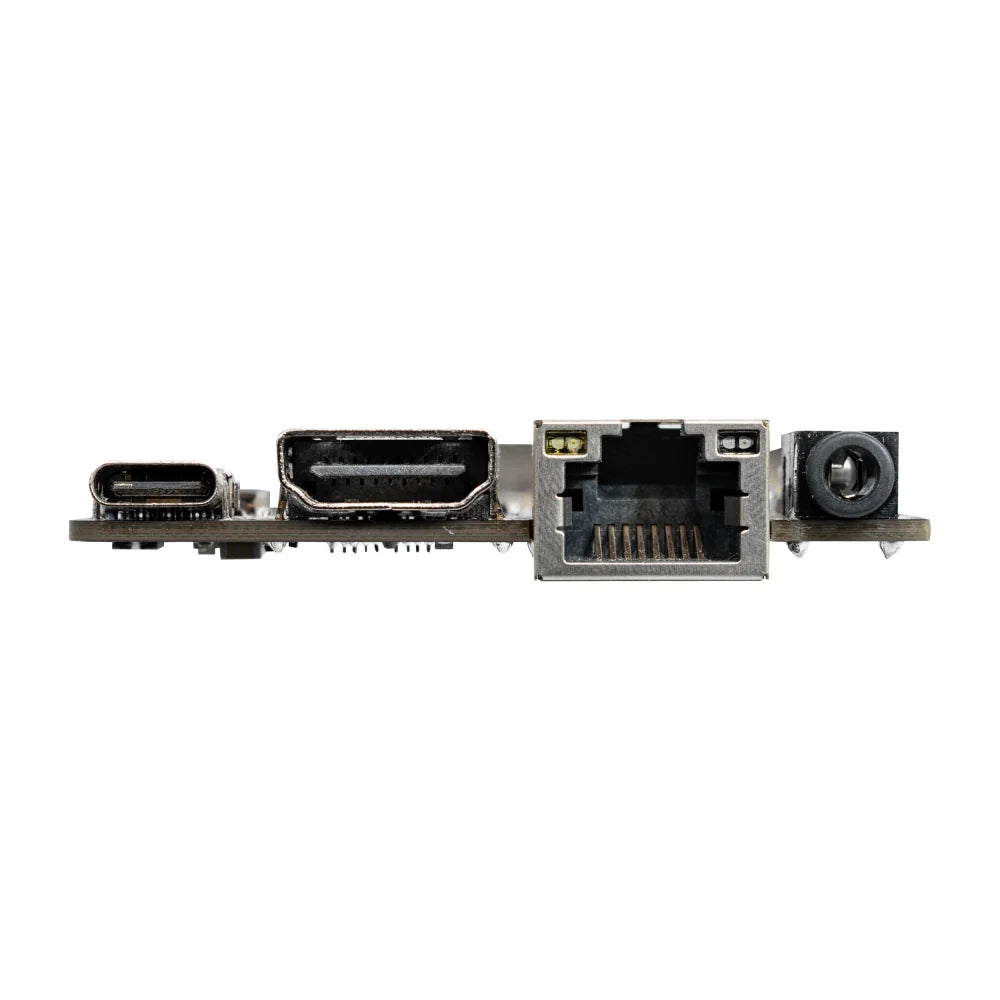

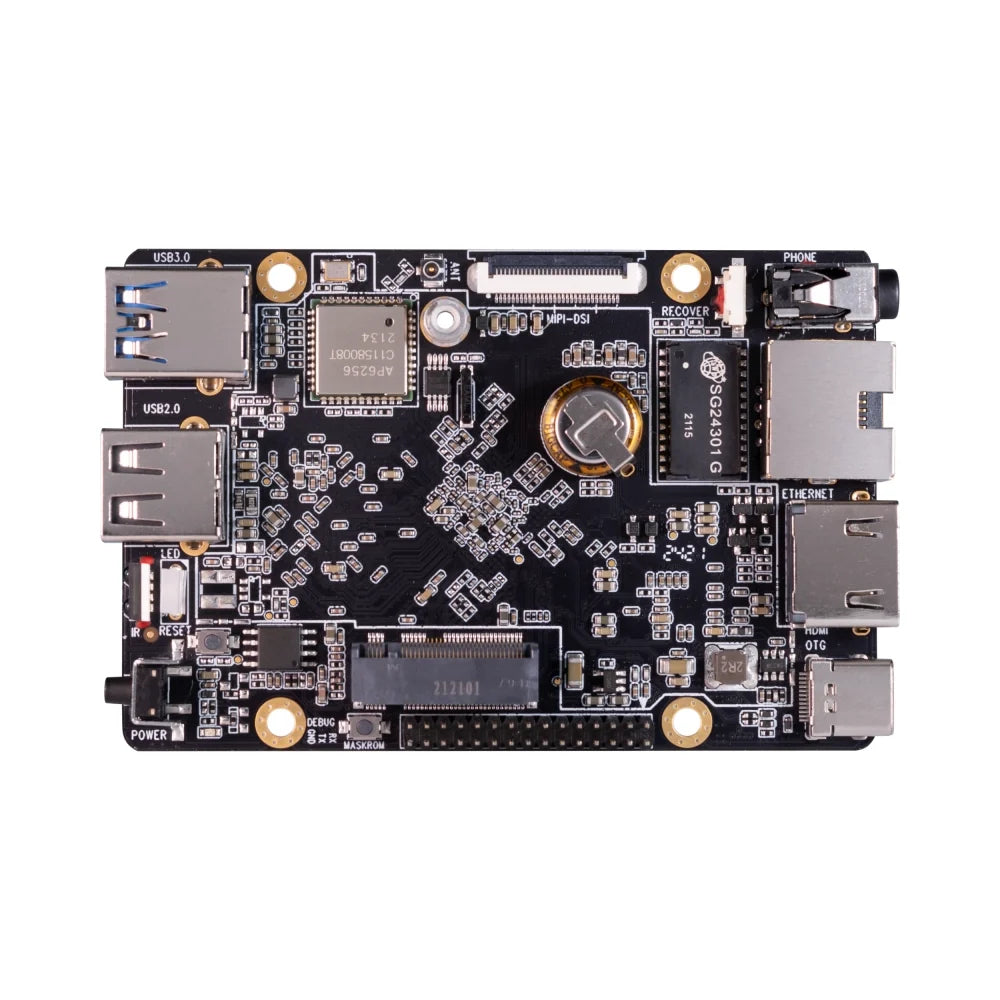

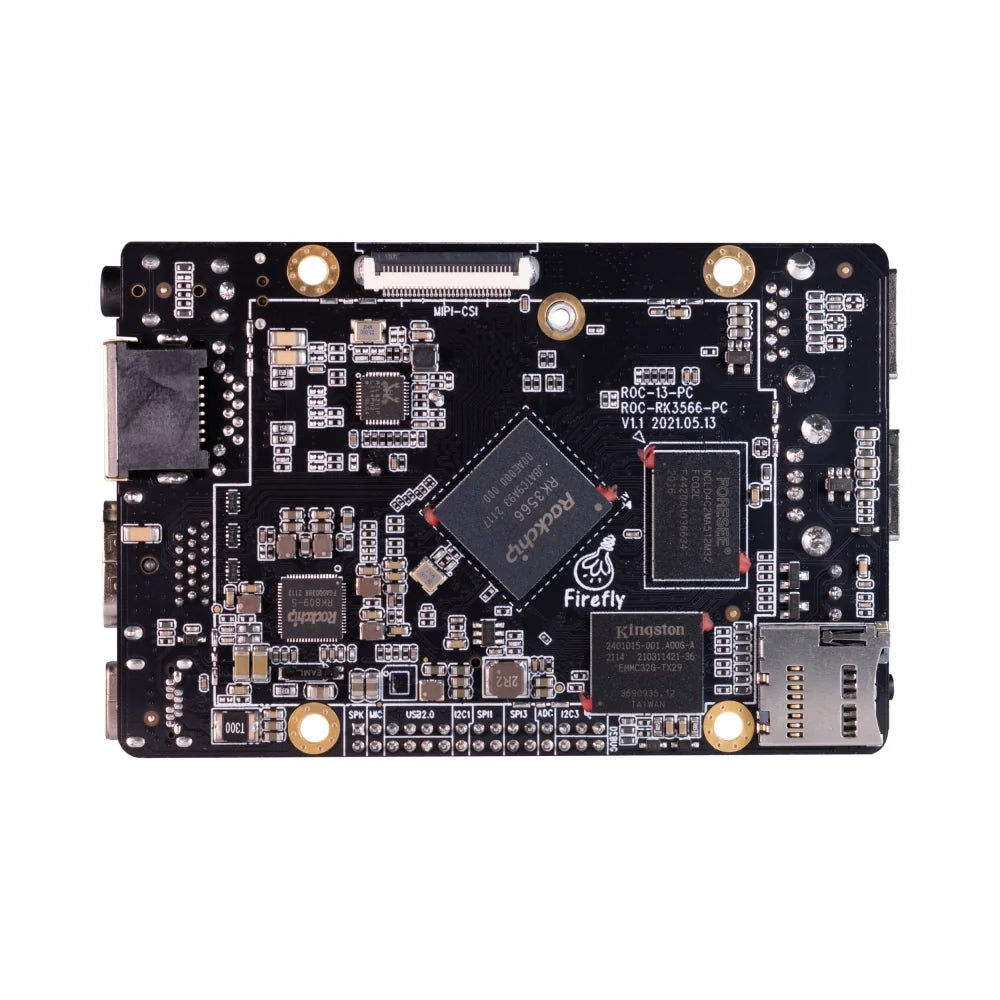

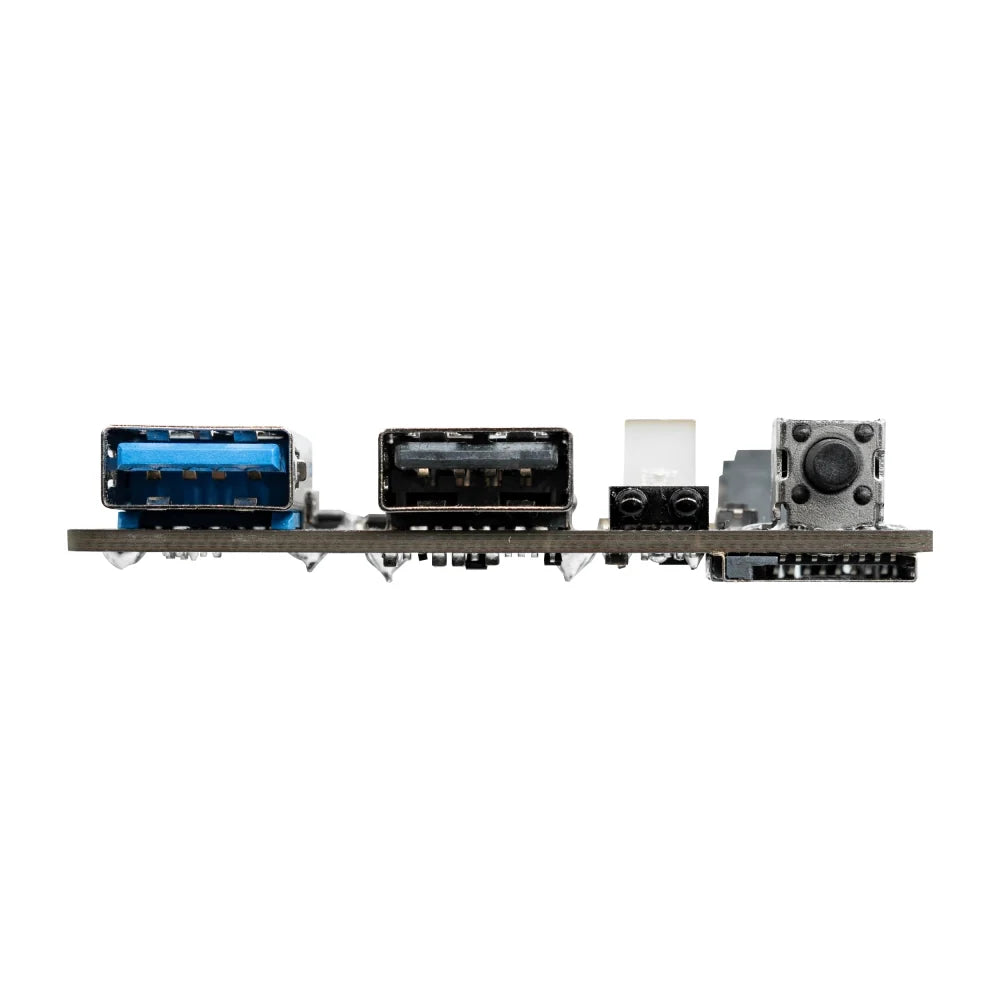

Hardware Overview
Shipping list
- Main unit × 1
- Power adapter / cable (region plug on request) × 1
- Accessories vary by configuration — contact us for the exact included list.
Document links will be replaced with the official Firefly resource URLs on request.
Our cooperating carriers: FedEx, DHL, UPS, SF Express
Delivery Area And Cost
| Country/Region | 0–2kg | 2–3kg | 3–4kg | 4–5kg | 5–6kg | 6–7kg | 7–8kg | 8–9kg | 9–10kg |
|---|---|---|---|---|---|---|---|---|---|
| Japan, Taiwan, Hong Kong, Macau | $15 | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 |
| Singapore, Thailand, Malaysia | $20 | $25 | $30 | $35 | $40 | $45 | $50 | $55 | $60 |
| Indonesia, Philippines | $25 | $30 | $40 | $50 | $60 | $70 | $80 | $85 | $95 |
| South Korea | $25 | $35 | $35 | $45 | $45 | $55 | $55 | $65 | $65 |
| United States, Australia, New Zealand, Canada, UK, and most of Western Europe | $30 | $45 | $55 | $65 | $75 | $85 | $95 | $105 | $115 |
| Other regions (Eastern Europe, Middle East, Latin America, etc.) | $50 | $65 | $80 | $95 | $110 | $125 | $135 | $150 | $165 |
Shipping time is for reference only; the actual situation shall prevail.
- Authorized & Genuine — sourced directly from brand-approved channels.
- Local Engineering Support — datasheets, SDKs, and pre-flashed images in English and Chinese.
- OEM / ODM & FPGA Customization — tailor specs, enclosures, and BSP for your project.
- One-Stop Sourcing — Firefly + youyeetoo + our own FPGA / edge lineup in one store.
Not sure which platform fits your project?
Frequently asked questions
What is ROC-RK3566-PC Quad-Core ARM Mini Single Board Computer used for?
ROC-RK3566-PC Quad-Core ARM Mini Single Board Computer is a Single Board Computer (SBC) from Firefly. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.
Does ROC-RK3566-PC Quad-Core ARM Mini Single Board Computer include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item as an authorized distributor and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.
Can I order ROC-RK3566-PC Quad-Core ARM Mini Single Board Computer with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.
How is ROC-RK3566-PC Quad-Core ARM Mini Single Board Computer shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
Specifications
| Product Wiki | Click Here |
| Product Datasheet | Click Here |
| RK3566 Quad-core 64-bit Processor | RK3566 quad-core 64-bit Cortex-A55 processor, with a main frequency of up to 1.8GHz, greatly improved efficiency. Adopting 22nm photolithography process, low power consumption and high performance. |
| 8GB Large RAM, All-data-link ECC | It supports up to 8GB RAM, up to 32-bit width, and full data link ECC, making data more secure and reliable, meeting the needs of running large memory product applications. |
| M.2 Interface Expansion | The onboard M.2 PCIe 2.0 interface can be connected to NVMe SSD, which has the advantages of high-speed reading and writing and large-capacity storage. |
