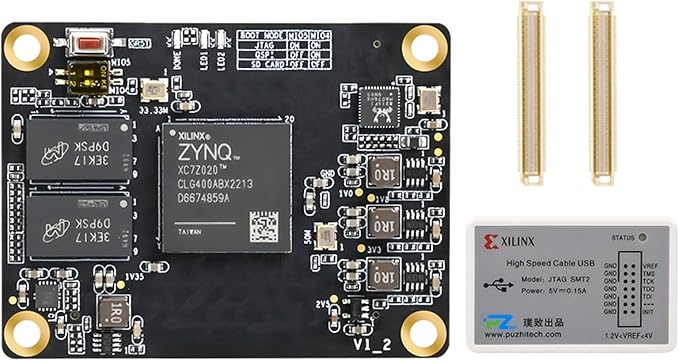

  • PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z… — view 3
  • PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z… — view 4
  • PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z… — view 5
  • PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z… — view 6
  • PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z… — view 7
  • PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z… — view 8
1 8

ALINX

PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z010 XC7Z020 AMD Xilinx SOM Industrial Grade DDR3 512MB 1GB QSPI Flash 256MB Gigabit Ethernet (PZ7020S-SOM, Package3)

PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z010 XC7Z020 AMD Xilinx SOM Industrial Grade DDR3 512MB 1GB QSPI Flash 256MB Gigabit Ethernet (PZ7020S-SOM, Package3)

$166.90 USD
$166.90 USD
Sale Sold out
Shipping calculated at checkout.

PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z010 XC7Z020 AMD Xilinx SOM Industrial Grade DDR3 512MB 1GB QSPI Flash 256MB Gigabit Ethernet (PZ7020S-SOM, Package3)

  • Powerful FPGA Integration: Equipped with Xilinx Zynq-7000 series SoC (XC7Z010 or XC7Z020), combining programmable logic with dual-core ARM Cortex-A9 processors for versatile embedded computing applications.
  • Industrial Grade Reliability: Designed for -40°C to +85°C operation, ideal for harsh environments in industrial automation, embedded control, and IoT edge computing.
  • Flexible Memory Options: Comes with DDR3/DDR3L RAM (512MB for 7010S, 1GB for 7020S) and 256MB QSPI Flash, ensuring fast data access and program storage.
  • Comprehensive IO Support: Offers up to 116 single-ended PL IOs and 30 PS MIOs with voltage flexibility (1.8V/2.5V/3.3V), along with dual 120-pin connectors for seamless integration.
  • High-Speed Connectivity: Built-in Gigabit Ethernet and dual crystal oscillators (50MHz PL and 33.333MHz PS) ensure stable performance and accurate timing for embedded networking systems.

The PZ7010S-SOM and PZ7020S-SOM are compact, industrial-grade FPGA System on Modules (SoMs) based on the AMD Xilinx Zynq-7000 series (XC7Z010 or XC7Z020). Engineered for performance and durability, they integrate a dual-core ARM Cortex-A9 processor and powerful FPGA fabric, enabling efficient hardware/software co-design. With up to 1GB DDR3/DDR3L RAM, 256MB QSPI Flash, and support for Gigabit Ethernet, these SoMs provide robust memory and connectivity for real-time control, AI acceleration, and industrial automation. Featuring 92–116 adjustable PL IOs and dual 120-pin connectors, they support flexible expansion for your embedded applications. The modules also include dedicated user LEDs, mode selection switches, and reset buttons for streamlined development. Ideal for edge computing, robotics, industrial control, and SDR front-end design, these modules offer a reliable and scalable platform with wide temperature tolerance and industrial-grade components.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ7010S
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM
SKU ALINX-B0FHFQG7YP
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
View full details

Not sure which platform fits your project?

Frequently asked questions

What is PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z010 XC7Z020 AMD Xilinx SOM Industrial Grade DDR3 512MB 1GB QSPI Flash 256MB Gigabit Ethernet (PZ7020S-SOM, Package3) used for?
PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z010 XC7Z020 AMD Xilinx SOM Industrial Grade DDR3 512MB 1GB QSPI Flash 256MB Gigabit Ethernet (PZ7020S-SOM, Package3) is a ALINX SoM / Core Board from ALINX. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z010 XC7Z020 AMD Xilinx SOM Industrial Grade DDR3 512MB 1GB QSPI Flash 256MB Gigabit Ethernet (PZ7020S-SOM, Package3) include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z010 XC7Z020 AMD Xilinx SOM Industrial Grade DDR3 512MB 1GB QSPI Flash 256MB Gigabit Ethernet (PZ7020S-SOM, Package3) with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is PZ7010S-SOM PZ7020S-SOM FPGA Core Board XC7Z010 XC7Z020 AMD Xilinx SOM Industrial Grade DDR3 512MB 1GB QSPI Flash 256MB Gigabit Ethernet (PZ7020S-SOM, Package3) shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
