PZ7010-SOM PZ7020-SOM ZYNQ XC7Z010 XC7Z020 FPGA Core Board ARM Cortex A9 512MB 1GB DDR3 4GB 8GB EMMC QSPI Flash Industrial Module (PZ7010-SOM, SOM Core Board)

  • Industrial-Grade ZYNQ Core Module:Based on Xilinx XC7Z010 or XC7Z020, dual-core ARM Cortex-A9 processor, supporting -40°C to +85°C for harsh environments.
  • High-Performance Memory & Storage:Integrated DDR3/DDR3L with 512MB or 1GB capacity, 128Mb QSPI Flash, and onboard 4GB or 8GB eMMC for robust data handling.
  • Rich IO & Connectivity:Offers up to 118 single-ended I/Os, onboard Gigabit Ethernet, 3 start-up modes including JTAG/QSPI/SD, and user-configurable MIO and DIP switches.
  • Optimized for Embedded Applications:Compact 61mm x 61mm form factor with dual crystal oscillators (33.333MHz for PS, 50MHz for PL), supporting ARM+FPGA hybrid processing.
  • Solderable Stamp Hole Design:Bottom side with no components, soldered directly to carrier board; ideal for stable, scalable industrial integration.

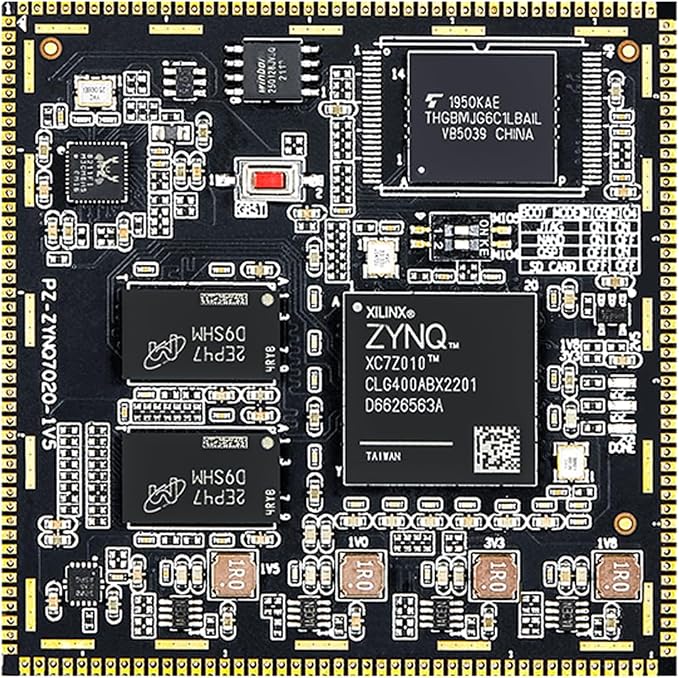

The PZ7010-SOM and PZ7020-SOM are high-reliability FPGA core modules based on Xilinx ZYNQ-7000 SoCs, integrating dual-core ARM Cortex-A9 processors with programmable logic. Featuring 512MB or 1GB DDR3, 4GB or 8GB eMMC, and 128Mb QSPI Flash, they provide ample resources for complex embedded tasks. Engineered with an industrial-grade temperature range (-40°C to +85°C) and supporting up to 118 I/Os, the modules offer versatile connectivity via MIO and PL I/Os. Built-in Gigabit Ethernet, user LEDs, voltage regulation, and flexible boot modes (JTAG, QSPI, SD) make them ideal for edge computing, robotics, machine vision, and industrial automation. Designed in a compact 61mm x 61mm footprint with solderable stamp holes, the modules ensure secure integration into custom baseboards with no components on the reverse side. Perfect for developers seeking stable and scalable ARM+FPGA hybrid systems.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ7010
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM
SKU ALINX-B0FHF22RXW
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
