PZ-ZU9EG-SOM PZ-ZU15EG-SOM XCZU9EG XCZU15EG Zynq Ultrascale+ SOM ARM Cortex A53 R5 GPU DDR4 4GB 2GB EMMC 8GB QSPI 168Pin FPGA Board (PZ-ZU15EG-SOM, SOM Core Board)

PZ-ZU9EG-SOM PZ-ZU15EG-SOM XCZU9EG XCZU15EG Zynq Ultrascale+ SOM ARM Cortex A53 R5 GPU DDR4 4GB 2GB EMMC 8GB QSPI 168Pin FPGA Board (PZ-ZU15EG-SOM, SOM Core Board)

$1,129.00 USD
$1,129.00 USD
Sale Sold out
Shipping calculated at checkout.

PZ-ZU9EG-SOM PZ-ZU15EG-SOM XCZU9EG XCZU15EG Zynq Ultrascale+ SOM ARM Cortex A53 R5 GPU DDR4 4GB 2GB EMMC 8GB QSPI 168Pin FPGA Board (PZ-ZU15EG-SOM, SOM Core Board)

  • Dual Model Support:Compatible with XCZU9EG and XCZU15EG chips offering up to 747K logic cells and 3528 DSP slices for high-performance applications
  • Integrated Memory Architecture:PS side 4GB DDR4 and PL side 2GB DDR4 plus 8GB eMMC and dual 256Mb QSPI FLASH for efficient boot and storage
  • Advanced Processing Capability:Quad ARM Cortex A53 and dual Cortex R5 processors with Mali 400MP2 GPU for AI edge computing and image processing
  • High Speed IO and Expansion:Includes 4 PS GTR lanes 24 PL GTH lanes and 3×168 pin board to board connectors for maximum system flexibility
  • Compact Rugged Design:85x75mm module supports -40 to 85 Celsius with 33MHz 125MHz oscillators reset button and user LED indicators

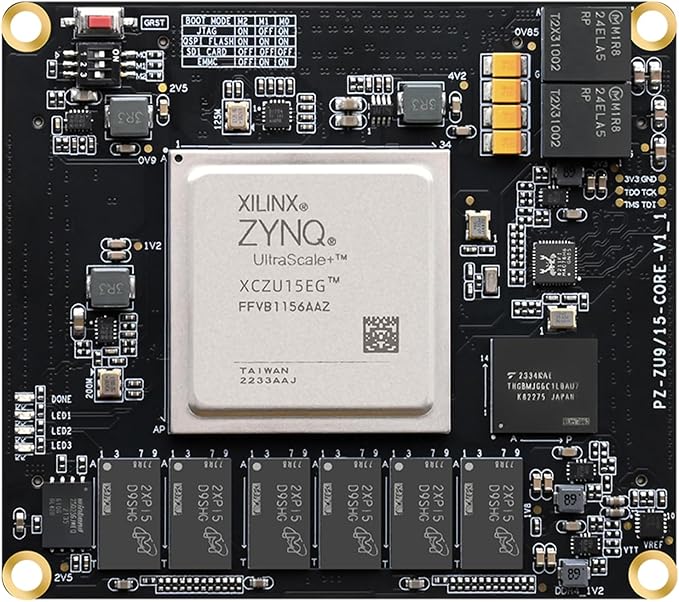

The PZ-ZU9EG-SOM and PZ-ZU15EG-SOM are high-performance FPGA System on Modules built around AMD Xilinx Zynq UltraScale+ devices XCZU9EG and XCZU15EG. These industrial-grade modules integrate 4× ARM Cortex-A53 processors (1.333GHz), 2× ARM Cortex-R5 (533MHz), and Mali-400MP2 GPU. Each module includes 4GB DDR4 on the PS side, 2GB DDR4 on the PL side, 8GB eMMC, and dual 256Mb QSPI Flash for storage and fast boot. With 3×168-pin connectors, 4 GTR lanes, and 24 GTH transceivers, they offer broad IO scalability. Operating from -40°C to +85°C in a compact 85×75mm footprint, they are ideal for AI acceleration, edge computing, SDR, and custom embedded systems. Startup modes include JTAG, QSPI, SD, and eMMC with onboard oscillators and user LEDs for development convenience.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM, Xilinx-UltraScale+, Xilinx-ZynqUS+
SKU ALINX-B0FHDPD627
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
View full details

Not sure which platform fits your project?

Frequently asked questions

What is PZ-ZU9EG-SOM PZ-ZU15EG-SOM XCZU9EG XCZU15EG Zynq Ultrascale+ SOM ARM Cortex A53 R5 GPU DDR4 4GB 2GB EMMC 8GB QSPI 168Pin FPGA Board (PZ-ZU15EG-SOM, SOM Core Board) used for?
PZ-ZU9EG-SOM PZ-ZU15EG-SOM XCZU9EG XCZU15EG Zynq Ultrascale+ SOM ARM Cortex A53 R5 GPU DDR4 4GB 2GB EMMC 8GB QSPI 168Pin FPGA Board (PZ-ZU15EG-SOM, SOM Core Board) is a ALINX SoM / Core Board from ALINX. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does PZ-ZU9EG-SOM PZ-ZU15EG-SOM XCZU9EG XCZU15EG Zynq Ultrascale+ SOM ARM Cortex A53 R5 GPU DDR4 4GB 2GB EMMC 8GB QSPI 168Pin FPGA Board (PZ-ZU15EG-SOM, SOM Core Board) include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order PZ-ZU9EG-SOM PZ-ZU15EG-SOM XCZU9EG XCZU15EG Zynq Ultrascale+ SOM ARM Cortex A53 R5 GPU DDR4 4GB 2GB EMMC 8GB QSPI 168Pin FPGA Board (PZ-ZU15EG-SOM, SOM Core Board) with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is PZ-ZU9EG-SOM PZ-ZU15EG-SOM XCZU9EG XCZU15EG Zynq Ultrascale+ SOM ARM Cortex A53 R5 GPU DDR4 4GB 2GB EMMC 8GB QSPI 168Pin FPGA Board (PZ-ZU15EG-SOM, SOM Core Board) shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
