PZ-ZU47DR-SOM Xilinx Zynq UltraScale Plus RFSoC XCZU47DR SOM Module 8G DDR4 32G EMMC 16 Channel ADC DAC 240Pin FPGA Board (PZ-ZU47DR-SOM, SOM Core Board)

PZ-ZU47DR-SOM Xilinx Zynq UltraScale Plus RFSoC XCZU47DR SOM Module 8G DDR4 32G EMMC 16 Channel ADC DAC 240Pin FPGA Board (PZ-ZU47DR-SOM, SOM Core Board)

$3,999.00 USD
$3,999.00 USD
Sale Sold out
Shipping calculated at checkout.

PZ-ZU47DR-SOM Xilinx Zynq UltraScale Plus RFSoC XCZU47DR SOM Module 8G DDR4 32G EMMC 16 Channel ADC DAC 240Pin FPGA Board (PZ-ZU47DR-SOM, SOM Core Board)

  • Powerful Zynq RFSoC Core:Built on Xilinx XCZU47DR-2FFVE1156I with 930k logic cells, 425k LUTs, 4272 DSP slices, and 38Mb BRAM. Integrates 4x Cortex-A53 and 2x Cortex-R5 cores for signal processing and edge AI.
  • High-Speed Data Conversion:Equipped with 8-channel ADC (5Gsps) and 8-channel DAC (9.85Gsps) to support advanced SDR, wireless, radar, and test equipment applications.
  • Robust Memory Architecture:8GB DDR4 for PS, 4GB DDR4 for PL, 32GB eMMC, and 1Gb QSPI Flash deliver fast boot-up, stable runtime, and massive user data storage.
  • Comprehensive Interfaces:Supports PS-side Gigabit Ethernet, 4 GTR TX/RX lanes, 8 GTY TX/RX pairs, and 82 user IOs including differential clocks and MIO/HD expansion.
  • Industrial Grade Reliability:Designed for -40°C to +85°C operation, with onboard clock generators, DIP boot selection, and gold-fingered 240-pin connectors.

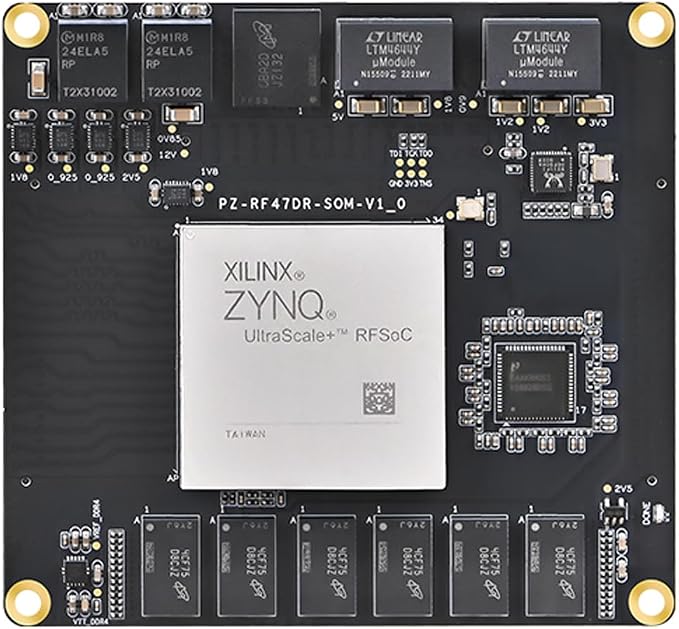

PZ-ZU47DR-SOM is a high-performance FPGA System-on-Module based on the Xilinx Zynq UltraScale+ RFSoC XCZU47DR-2FFVE1156I. It combines programmable logic with 4x ARM Cortex-A53, 2x Cortex-R5 processors, and 8-channel high-speed ADC/DAC for powerful real-time computing and RF signal conversion. With industrial-grade reliability (-40°C to +85°C), this SOM features 930k logic cells, 425k LUTs, 4272 DSP slices, 38Mb BRAM, and integrated 8GB + 4GB DDR4 RAM. Multiple interfaces including Gigabit Ethernet, GTY/GTR transceivers, and user I/Os make it ideal for embedded SDR, radar systems, spectrum analysis, and high-performance data acquisition. It comes equipped with 32GB onboard eMMC, dual QSPI Flash, and flexible boot modes (JTAG/QSPI/SD/EMMC). The SOM uses a 240-pin connector layout and immersion gold finish to ensure durability and signal integrity. Perfect for system integrators and research engineers developing wideband RF solutions.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM, Xilinx-ZynqUS+
SKU ALINX-B0FH9HDM8D
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
View full details

Not sure which platform fits your project?

Frequently asked questions

What is PZ-ZU47DR-SOM Xilinx Zynq UltraScale Plus RFSoC XCZU47DR SOM Module 8G DDR4 32G EMMC 16 Channel ADC DAC 240Pin FPGA Board (PZ-ZU47DR-SOM, SOM Core Board) used for?
PZ-ZU47DR-SOM Xilinx Zynq UltraScale Plus RFSoC XCZU47DR SOM Module 8G DDR4 32G EMMC 16 Channel ADC DAC 240Pin FPGA Board (PZ-ZU47DR-SOM, SOM Core Board) is a ALINX SoM / Core Board from ALINX. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does PZ-ZU47DR-SOM Xilinx Zynq UltraScale Plus RFSoC XCZU47DR SOM Module 8G DDR4 32G EMMC 16 Channel ADC DAC 240Pin FPGA Board (PZ-ZU47DR-SOM, SOM Core Board) include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order PZ-ZU47DR-SOM Xilinx Zynq UltraScale Plus RFSoC XCZU47DR SOM Module 8G DDR4 32G EMMC 16 Channel ADC DAC 240Pin FPGA Board (PZ-ZU47DR-SOM, SOM Core Board) with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is PZ-ZU47DR-SOM Xilinx Zynq UltraScale Plus RFSoC XCZU47DR SOM Module 8G DDR4 32G EMMC 16 Channel ADC DAC 240Pin FPGA Board (PZ-ZU47DR-SOM, SOM Core Board) shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
