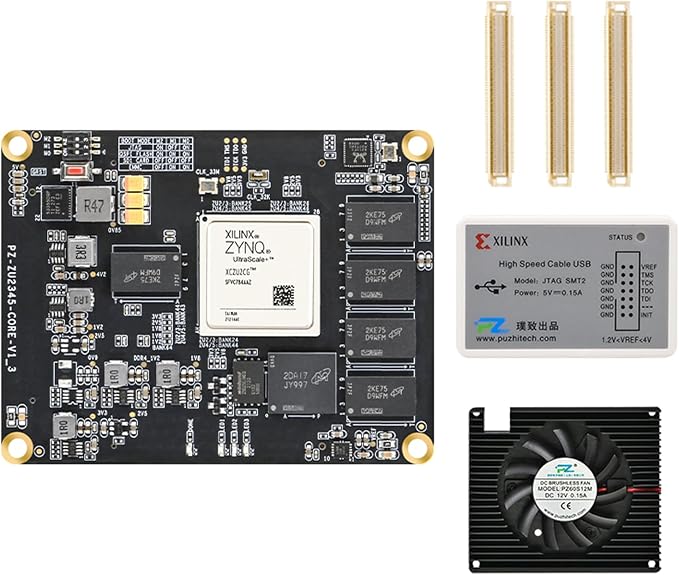

  • PZ-ZU2CG-SOM ZU3EG Core Board XCZU2CG XCZU3E… — view 3
  • PZ-ZU2CG-SOM ZU3EG Core Board XCZU2CG XCZU3E… — view 4
  • PZ-ZU2CG-SOM ZU3EG Core Board XCZU2CG XCZU3E… — view 5
  • PZ-ZU2CG-SOM ZU3EG Core Board XCZU2CG XCZU3E… — view 6
  • PZ-ZU2CG-SOM ZU3EG Core Board XCZU2CG XCZU3E… — view 7
  • PZ-ZU2CG-SOM ZU3EG Core Board XCZU2CG XCZU3E… — view 8
1 8

ALINX

PZ-ZU2CG-SOM ZU3EG Core Board XCZU2CG XCZU3EG FPGA SoM with DDR4 4GB+1GB EMMC 8GB QSPI Ethernet ARM Cortex A53 R5 Industrial Grade Zynq UltraScale+ (PZ-ZU2CG-SOM, Package4)

PZ-ZU2CG-SOM ZU3EG Core Board XCZU2CG XCZU3EG FPGA SoM with DDR4 4GB+1GB EMMC 8GB QSPI Ethernet ARM Cortex A53 R5 Industrial Grade Zynq UltraScale+ (PZ-ZU2CG-SOM, Package4)

$310.70 USD
$310.70 USD
Sale Sold out
Shipping calculated at checkout.

PZ-ZU2CG-SOM ZU3EG Core Board XCZU2CG XCZU3EG FPGA SoM with DDR4 4GB+1GB EMMC 8GB QSPI Ethernet ARM Cortex A53 R5 Industrial Grade Zynq UltraScale+ (PZ-ZU2CG-SOM, Package4)

  • Advanced Zynq UltraScale+ Platform:Features Xilinx XCZU2CG or XCZU3EG SoC with ARM Cortex-A53 (up to 4 cores) + R5 cores, ideal for edge AI, SDR, and embedded systems.
  • Industrial Grade Performance:Operates in harsh environments from -40°C to +85°C; supports industrial-grade reliability with integrated QSPI Flash and eMMC.
  • Comprehensive Memory Integration:Includes 4GB DDR4 for PS, 1GB DDR4 for PL, 256Mb QSPI Flash, and 8GB eMMC for high-speed data storage and processing.
  • Rich High-Speed IO & Interfaces:Offers up to 192 user IOs (including 1.2V/1.8V/3.3V adjustable), 4x GTR lanes, 38x MIOs, and 3x 120-pin connectors for expansion.
  • Compact and Versatile SoM Design:Compact 83.8mm x 64.8mm board with Ethernet chip, dual crystal oscillators (33.33MHz/200MHz), reset key, user LED, and flexible startup modes.

The PZ-ZU2CG/3EG-SOM is a powerful FPGA System-on-Module based on AMD Xilinx Zynq UltraScale+ MPSoC (XCZU2CG or XCZU3EG). It integrates up to four ARM Cortex-A53 cores, two Cortex-R5 cores, and programmable FPGA logic into a single compact module. Designed for industrial-grade applications, the board supports wide temperature ranges (-40°C to +85°C) and is ideal for edge computing, SDR, machine vision, and industrial control. This SOM includes 4GB DDR4 on the PS side, 1GB DDR4 on the PL side, 256Mb QSPI Flash, and 8GB eMMC, offering high-speed memory access and robust data storage. Interface flexibility is ensured with up to 192 user IOs, 4x GTR lanes, and 3x 120-pin high-speed expansion connectors. Supporting JTAG, QSPI, SD, and EMMC startup modes, the module also includes Gigabit Ethernet chip, reset key, user LEDs, and dual crystal oscillators (33.333MHz for PS, 200MHz for PL). The PZ-ZU2CG-SOM is ideal for engineers and developers building high-performance embedded solutions.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM, Xilinx-UltraScale+, Xilinx-ZynqUS+
SKU ALINX-B0FHD92JN2
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
