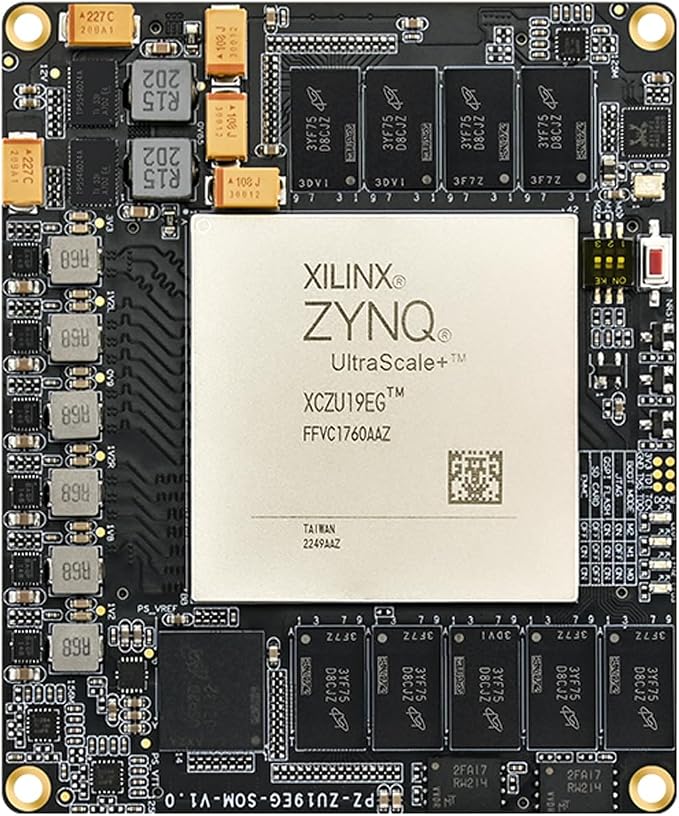

  • PZ-ZU19EG-SOM Xilinx Zynq Ultrascale+ MPSOC… — view 3
  • PZ-ZU19EG-SOM Xilinx Zynq Ultrascale+ MPSOC… — view 4
  • PZ-ZU19EG-SOM Xilinx Zynq Ultrascale+ MPSOC… — view 5
  • PZ-ZU19EG-SOM Xilinx Zynq Ultrascale+ MPSOC… — view 6
  • PZ-ZU19EG-SOM Xilinx Zynq Ultrascale+ MPSOC… — view 7
  • PZ-ZU19EG-SOM Xilinx Zynq Ultrascale+ MPSOC… — view 8
1 8

ALINX

PZ-ZU19EG-SOM Xilinx Zynq Ultrascale+ MPSOC Core Board XCZU17EG XCZU19EG FPGA SOM ARM Cortex A53 R5 DDR4 8GB EMMC 32GB QSPI Flash 1GB Ethernet Industrial SOM (PZ-ZU19EG-SOM, SOM Core Board)

PZ-ZU19EG-SOM Xilinx Zynq Ultrascale+ MPSOC Core Board XCZU17EG XCZU19EG FPGA SOM ARM Cortex A53 R5 DDR4 8GB EMMC 32GB QSPI Flash 1GB Ethernet Industrial SOM (PZ-ZU19EG-SOM, SOM Core Board)

$2,999.00 USD
$2,999.00 USD
Sale Sold out
Shipping calculated at checkout.

PZ-ZU19EG-SOM Xilinx Zynq Ultrascale+ MPSOC Core Board XCZU17EG XCZU19EG FPGA SOM ARM Cortex A53 R5 DDR4 8GB EMMC 32GB QSPI Flash 1GB Ethernet Industrial SOM (PZ-ZU19EG-SOM, SOM Core Board)

  • High-Performance Core:Based on Xilinx Zynq UltraScale+ XCZU17EG or XCZU19EG FPGA with ARM Cortex-A53 (1.333GHz) and Cortex-R5F (533MHz) processors, delivering powerful computing and real-time performance.
  • Robust Memory Architecture:Equipped with 8GB DDR4 with ECC on PS side, 8GB DDR4 on PL side, 32GB onboard eMMC, and dual 512Mb QSPI Flash for high-speed boot and ample storage.
  • Comprehensive Connectivity:Supports 38 IOs for PS, 336 IOs for PL including HP/HD IOs, 4 pairs GTR, 32 pairs GTH, and 16 pairs GTY with speeds up to 32.75Gbps, ideal for high-speed transceiver applications.
  • Precise Timing and Control:Integrated with multiple oscillators: 33.33MHz (PS), 200MHz (PL), dual 125MHz and 156.25MHz (GT clock), enabling stable high-frequency signal control and synchronization.
  • Industrial-Grade Reliability:Designed for harsh environments with industrial-grade temperature support (-40°C to +85°C), startup via JTAG/QSPI/SD/EMMC, user LED, and gigabit Ethernet for embedded systems.

The PZ-ZU17EG-SOM and PZ-ZU19EG-SOM are high-performance core boards powered by Xilinx Zynq UltraScale+ MPSoC XCZU17EG and XCZU19EG. Each module integrates a quad-core ARM Cortex-A53, dual-core Cortex-R5F, and Mali-400 MP2 GPU, enabling efficient heterogeneous computing. Featuring dual DDR4 (8GB each on PS and PL), 32GB eMMC, and dual QSPI Flash (512Mb + 512Mb), these SOMs offer rapid boot, data integrity, and flexibility in memory management. With advanced GT transceivers (GTH up to 16.3Gbps, GTY up to 32.75Gbps), high-speed IOs, and multiple precision crystal oscillators, the modules meet the demands of data-intensive applications such as embedded AI, SDR, industrial automation, and defense. Built for reliability, they support JTAG, SD, QSPI, and EMMC boot modes, gigabit Ethernet, and industrial-grade operation.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM, Xilinx-UltraScale+, Xilinx-ZynqUS+
SKU ALINX-B0FHDWSVLC
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
