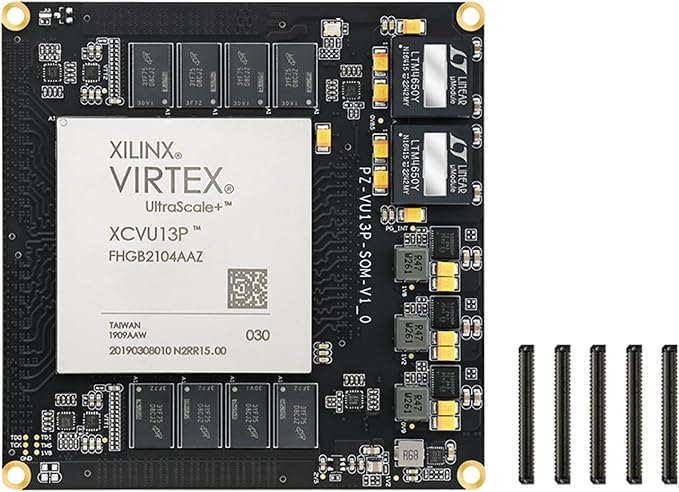

  • PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex U… — view 3
  • PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex U… — view 4
  • PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex U… — view 5
  • PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex U… — view 6
  • PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex U… — view 7
  • PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex U… — view 8
1 8

ALINX

PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex UltraScale+ SOM XCVU9P XCVU13P 16GB DDR4 76 GTY 240P Connector Board (PZ-VU13P-SOM, SOM with Connectors)

PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex UltraScale+ SOM XCVU9P XCVU13P 16GB DDR4 76 GTY 240P Connector Board (PZ-VU13P-SOM, SOM with Connectors)

$12,104.00 USD
$12,104.00 USD
Sale Sold out
Shipping calculated at checkout.

PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex UltraScale+ SOM XCVU9P XCVU13P 16GB DDR4 76 GTY 240P Connector Board (PZ-VU13P-SOM, SOM with Connectors)

  • High-End FPGA Performance:Powered by Xilinx Virtex UltraScale+ series XCVU9P or XCVU13P chips with up to 3.78 million logic cells and 12,288 DSP slices.
  • Integrated 16GB DDR4 Memory:Dual DDR4 groups (8GB+8GB) ensure high bandwidth data buffering and parallel computing for intensive processing.
  • Rich High-Speed IOs:Features 360 single-ended and 180 differential IOs, 76 GTY transceiver pairs, suitable for high-speed communication applications.
  • Reliable Industrial-Grade Design:Supports industrial temperature range (-40°C to +85°C), ideal for harsh environments and 24/7 operation.
  • Compact and Modular Architecture:Standard 100mm x 100mm SOM form factor with 5x 240-pin connectors, ready for high-density integration in your custom system.

PZ-VU9P-SOM and PZ-VU13P-SOM are industrial-grade FPGA System on Modules based on Xilinx Virtex UltraScale+ devices (XCVU9P-2FLGB2104I or XCVU13P-2FHGB2104I). With up to 3.78 million logic cells, 16GB DDR4 RAM, and 76 GTY transceivers, this SOM offers exceptional compute performance for 5G, radar, data center acceleration, and advanced signal processing. It integrates: Dual 8GB DDR4 banks (total 16GB) 360 single-ended / 180 differential IOs 3 high-frequency crystal oscillators (125/156.25/200 MHz) Five 240-pin connectors for expansion Full support for JTAG/BPI/SPI start-up modes Designed for embedded computing in industrial and commercial systems, the module follows a compact 100mm x 100mm standard, with black matte finish and gold immersion for durability and signal integrity.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ VU9P
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-Flagship, ALINX-SoM, Xilinx-UltraScale+, Xilinx-Virtex, Xilinx-ZynqUS+
SKU ALINX-B0FHGSKLTH
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
View full details

Frequently asked questions

What is PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex UltraScale+ SOM XCVU9P XCVU13P 16GB DDR4 76 GTY 240P Connector Board (PZ-VU13P-SOM, SOM with Connectors) used for?
PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex UltraScale+ SOM XCVU9P XCVU13P 16GB DDR4 76 GTY 240P Connector Board (PZ-VU13P-SOM, SOM with Connectors) is a ALINX SoM / Core Board from ALINX. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex UltraScale+ SOM XCVU9P XCVU13P 16GB DDR4 76 GTY 240P Connector Board (PZ-VU13P-SOM, SOM with Connectors) include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex UltraScale+ SOM XCVU9P XCVU13P 16GB DDR4 76 GTY 240P Connector Board (PZ-VU13P-SOM, SOM with Connectors) with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is PZ VU9P-SOM PZ-VU13P-SOM AMD Xilinx Virtex UltraScale+ SOM XCVU9P XCVU13P 16GB DDR4 76 GTY 240P Connector Board (PZ-VU13P-SOM, SOM with Connectors) shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
