PZ-V7690T-SOM AMD Xilinx Virtex 7 690T FPGA SOM 4GB DDR3 36 GTH 528 iOS Industrial Grade Core Board 125MHz 156MHz 200MHz Crystal Oscillator (PZ-V7690T-SOM, Package3)

PZ-V7690T-SOM AMD Xilinx Virtex 7 690T FPGA SOM 4GB DDR3 36 GTH 528 iOS Industrial Grade Core Board 125MHz 156MHz 200MHz Crystal Oscillator (PZ-V7690T-SOM, Package3)

$4,060.90 USD
$4,060.90 USD
Sale Sold out
Shipping calculated at checkout.

PZ-V7690T-SOM AMD Xilinx Virtex 7 690T FPGA SOM 4GB DDR3 36 GTH 528 iOS Industrial Grade Core Board 125MHz 156MHz 200MHz Crystal Oscillator (PZ-V7690T-SOM, Package3)

  • High Performance FPGA Core:Built with Xilinx XC7VX690T-2FFG1761I offering 693k logic cells 866400 flip-flops and 3600 DSP slices for intensive processing tasks.
  • Reliable Industrial Grade Design:Designed for -40°C to +85°C environments ensuring stability in harsh applications including telecom military and aerospace.
  • Abundant Memory and IO Resources:Equipped with 4GB DDR3 (2GB x2 64bit) and 528 single-ended or 264 differential IOs supporting 1.2V/1.8V adjustable logic levels.
  • Multiple Crystal Oscillators for Precision Timing:Integrated 125MHz and 156.25MHz oscillators for GT reference and a 200MHz oscillator for system logic to meet high-speed data needs.
  • Compact and Expandable SOM Module:100mm x 80mm core board with six 144P connectors and JTAG QSPI BPI boot modes making it easy to integrate into your custom design.

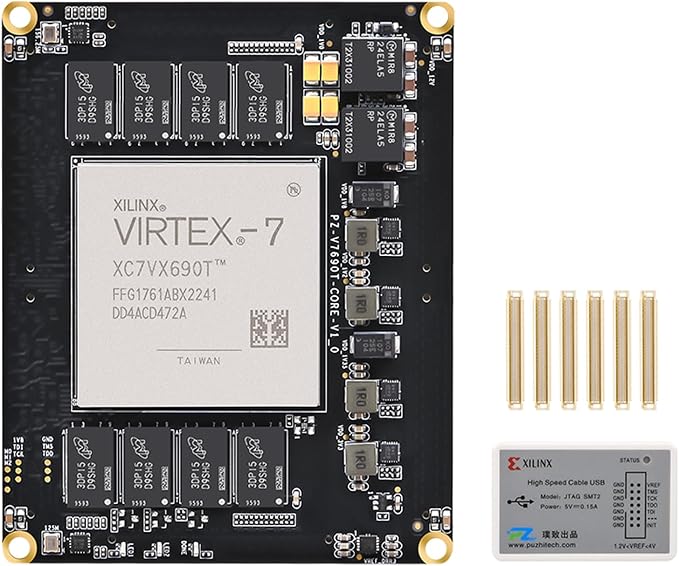

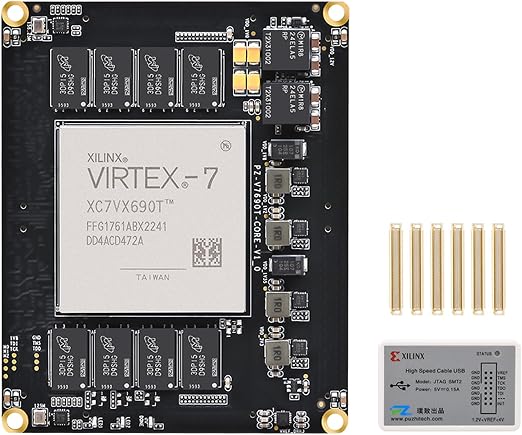

PZ-V7690T-SOM is a high-performance industrial-grade FPGA system-on-module (SOM) based on Xilinx XC7VX690T-2FFG1761I from the Virtex-7 family. It provides an ideal hardware platform for data-intensive, high-speed applications such as high-end communication systems, scientific computing, and real-time processing. This core board integrates: 693k Logic Cells, 866400 Flip-Flops, and 3600 DSP slices 4GB DDR3 RAM (2GB x2 with 64-bit interface) 36 pairs of GTH transceivers Over 500 IOs with voltage control (1.2V/1.8V adjustable) 3 High-precision crystal oscillators: 125MHz, 156.25MHz, 200MHz Start-up support for JTAG, QSPI, BPI Dimensions: 100mm x 80mm (3.94"" x 3.15"") With immersion gold finish and six 144P expansion connectors, this board delivers robust connectivity and seamless integration in demanding applications.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM, Xilinx-Virtex
SKU ALINX-B0FHH4FYPQ
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
