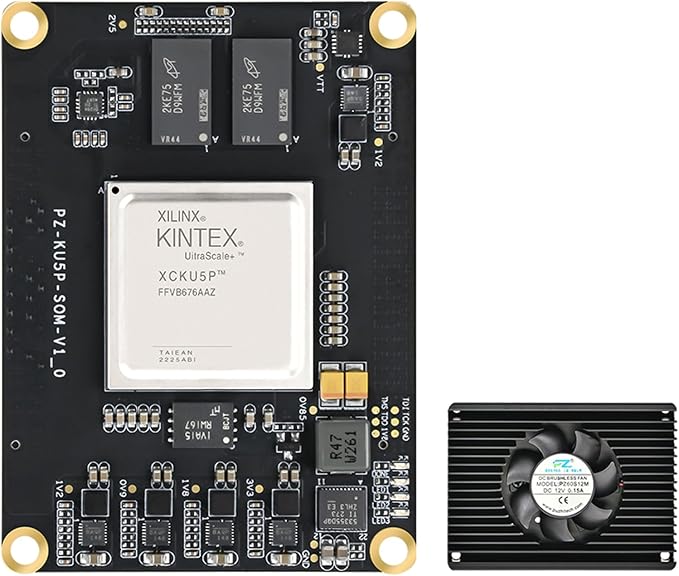

  • PZ-KU3P-SOM PZ-KU5P-SOM AMD Xilinx SOM FPGA… — view 3
  • PZ-KU3P-SOM PZ-KU5P-SOM AMD Xilinx SOM FPGA… — view 4
  • PZ-KU3P-SOM PZ-KU5P-SOM AMD Xilinx SOM FPGA… — view 5
  • PZ-KU3P-SOM PZ-KU5P-SOM AMD Xilinx SOM FPGA… — view 6
  • PZ-KU3P-SOM PZ-KU5P-SOM AMD Xilinx SOM FPGA… — view 7
  • PZ-KU3P-SOM PZ-KU5P-SOM AMD Xilinx SOM FPGA… — view 8
1 8

ALINX

PZ-KU3P-SOM PZ-KU5P-SOM AMD Xilinx SOM FPGA Core Board Xilinx Kintex Ultrascale XCKU3P XCKU5P DDR4 2GB QSPI 256Mb Industrial Grade SOM (PZ-KU5P-SOM, SOM with Heatsink)

PZ-KU3P-SOM PZ-KU5P-SOM AMD Xilinx SOM FPGA Core Board Xilinx Kintex Ultrascale XCKU3P XCKU5P DDR4 2GB QSPI 256Mb Industrial Grade SOM (PZ-KU5P-SOM, SOM with Heatsink)

$518.80 USD
$518.80 USD
Sale Sold out
Shipping calculated at checkout.

PZ-KU3P-SOM PZ-KU5P-SOM AMD Xilinx SOM FPGA Core Board Xilinx Kintex Ultrascale XCKU3P XCKU5P DDR4 2GB QSPI 256Mb Industrial Grade SOM (PZ-KU5P-SOM, SOM with Heatsink)

  • High-Performance Xilinx FPGA:Powered by Kintex UltraScale XCKU3P or XCKU5P FPGA with up to 475K logic cells and 434K flip-flops for complex computing tasks.
  • Optimized Memory & Flash:Integrated 2GB DDR4 32-bit memory and 256Mb QSPI Flash, ideal for storing boot files and user data.
  • Industrial-Grade Reliability:Wide temperature tolerance from -40°C to +85°C, suitable for industrial and mission-critical environments.
  • Rich Connectivity & IO Support:Up to 168 IOs (including 84 differential pairs), 16 GTY transceivers, and dual 240P high-speed connectors for system expansion.
  • Precision Clocking & Compact Size:Built-in 200MHz and 125MHz oscillators provide accurate timing; compact 75mm x 55mm design fits embedded systems with limited space.

The PZ-KU3P-SOM and PZ-KU5P-SOM are high-performance FPGA System on Modules (SOMs) based on the Xilinx Kintex UltraScale XCKU3P and XCKU5P chips. These modules deliver exceptional processing capability, enhanced DSP performance, and high I/O flexibility, ideal for signal processing, embedded systems, and industrial automation. Each SOM integrates 2GB of DDR4 memory, a 256Mb QSPI Flash, and precision crystal oscillators (200MHz for FPGA logic and 125MHz for transceiver clock). With up to 475K logic cells, 1824 DSP slices, and 16 GTY lanes, the SOM supports intensive parallel processing applications. Its robust industrial-grade design (−40°C to +85°C), 240P high-density connectors, and black matte PCB with immersion gold process make it a dependable solution for long-term deployment in complex systems.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM
SKU ALINX-B0FHHK8J9V
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
