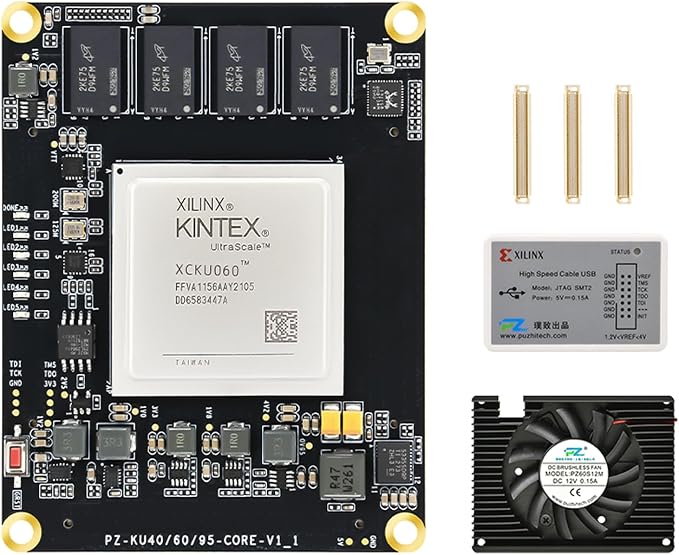

  • PZ-KU040-SOM PZ-KU060-SOM AMD Xilinx SoM Kin… — view 3
  • PZ-KU040-SOM PZ-KU060-SOM AMD Xilinx SoM Kin… — view 4
  • PZ-KU040-SOM PZ-KU060-SOM AMD Xilinx SoM Kin… — view 5
  • PZ-KU040-SOM PZ-KU060-SOM AMD Xilinx SoM Kin… — view 6
  • PZ-KU040-SOM PZ-KU060-SOM AMD Xilinx SoM Kin… — view 7
  • PZ-KU040-SOM PZ-KU060-SOM AMD Xilinx SoM Kin… — view 8
1 8

ALINX

PZ-KU040-SOM PZ-KU060-SOM AMD Xilinx SoM Kintex UltraScale FPGA Core Board KU040 060 4GB DDR4 512Mb QSPI Flash Gigabit Ethernet (PZ-KU060-SOM, Package4)

PZ-KU040-SOM PZ-KU060-SOM AMD Xilinx SoM Kintex UltraScale FPGA Core Board KU040 060 4GB DDR4 512Mb QSPI Flash Gigabit Ethernet (PZ-KU060-SOM, Package4)

$856.70 USD
$856.70 USD
Sale Sold out
Shipping calculated at checkout.

PZ-KU040-SOM PZ-KU060-SOM AMD Xilinx SoM Kintex UltraScale FPGA Core Board KU040 060 4GB DDR4 512Mb QSPI Flash Gigabit Ethernet (PZ-KU060-SOM, Package4)

  • Kintex UltraScale FPGA Chip:Equipped with Xilinx XCZU040 or XCZU060 FPGAs with up to 726k logic cells and 2760 DSP slices for high-performance applications.
  • Industrial Grade Reliability:Designed for -40°C to +85°C operating range with advanced thermal and power management, ideal for mission-critical industrial use.
  • 4GB DDR4 & 512Mb QSPI Flash:Includes 64-bit 4GB DDR4 memory and dual QSPI Flash (256Mb + 256Mb) for stable boot and user data storage
  • High-Speed I/O and GTH Support:Offers 20 pairs of GTH transceivers and 296 single-ended I/Os with adjustable voltage for flexible high-speed interfacing.
  • Compact and Expandable:Compact 64.8mm x 83.8mm core board with 3x168-pin connectors, Gigabit Ethernet chip, onboard oscillators and voltage regulators.

The PZ-KU040-SOM and PZ-KU060-SOM are high-performance FPGA core board built on Xilinx Kintex UltraScale series (XCZU040-2FFVA1156I or XCZU060-2FFVA1156I). Designed for industrial applications, it supports an extended temperature range from -40°C to +85°C. The module integrates 4GB 64-bit DDR4 memory and 512Mb QSPI Flash (256Mb x2) to store boot files and user data. With 20 pairs of GTH transceivers, 296 I/O (including HR and HP differential pairs), and onboard oscillators (200MHz for FPGA and 125MHz for transceivers), it provides robust performance for data processing and transmission. The board also features Gigabit Ethernet chip support and 3 x 168-pin connectors for expansion. Built with black matte and immersion gold technology, this compact 64.8mm x 83.8mm module is optimized for reliability and scalability in high-speed systems, embedded designs, and FPGA acceleration projects. **Key Features:** - Xilinx XCZU040/060 Industrial Grade FPGAs - 4GB DDR4 / 512Mb QSPI Flash - 2760 DSP Slices / 38Mb Block RAM (KU060) - 20 GTH TX/RX pairs - 3x168P Expansion Connectors - JTAG and QSPI Boot Support

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM
SKU ALINX-B0FHH314RW
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
