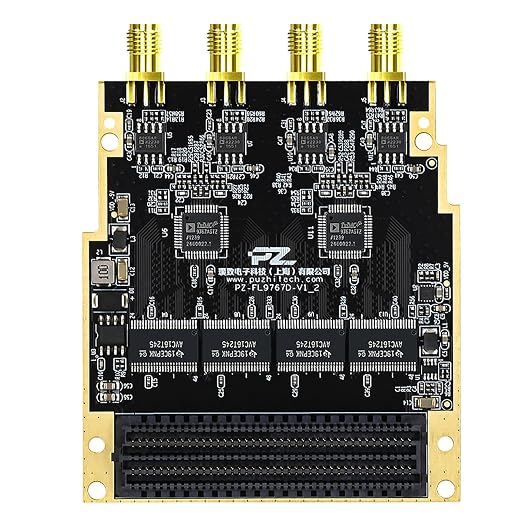

PZ-FL9767D 4 Channel DAC Module AD9767 14bit 125MSPS FMC LPC Interface Industrial Grade ±5V Output Powered from FMC Interface

PZ-FL9767D 4 Channel DAC Module AD9767 14bit 125MSPS FMC LPC Interface Industrial Grade ±5V Output Powered from FMC Interface

$209.00 USD
$209.00 USD
Sale Sold out
Shipping calculated at checkout.

PZ-FL9767D 4 Channel DAC Module AD9767 14bit 125MSPS FMC LPC Interface Industrial Grade ±5V Output Powered from FMC Interface

  • High-Speed DAC Performance: Integrated with AD9767 DAC chip supporting up to 125MSPS for accurate signal generation in demanding applications.
  • Multi-Channel Output: Equipped with 4 independent DAC channels for enhanced parallel signal processing capabilities.
  • Industrial Grade Reliability: Operates in a wide temperature range (-40°C to +85°C), suitable for rugged industrial environments.
  • FMC LPC Interface: Designed with FMC LPC interface for seamless integration with FPGA development platforms.
  • Compact and Efficient: Measures only 3.01 x 2.72 inches and powered directly from FMC (12V), simplifying system power management.

The PZ-FL9767D is a high-performance DAC expansion board featuring the AD9767 chip. With 14-bit resolution and a maximum sampling rate of 125MSPS, this module delivers precise and reliable digital-to-analog conversion. The 4-channel output design supports parallel analog signal processing, making it ideal for signal simulation, waveform generation, and data output applications in embedded systems and RF development. Built to industrial-grade standards, it ensures stable performance across a wide temperature range (-40°C to +85°C). Its FMC LPC interface provides compatibility with a variety of FPGA boards, while the compact form factor (76.5 mm x 69 mm) and 12V FMC-powered input streamline system integration. Whether for lab testing or field deployment, the PZ-FL9767D offers a professional-grade DAC solution.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM
SKU ALINX-B0FHHPJPK3
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
View full details

Frequently asked questions

What is PZ-FL9767D 4 Channel DAC Module AD9767 14bit 125MSPS FMC LPC Interface Industrial Grade ±5V Output Powered from FMC Interface used for?
PZ-FL9767D 4 Channel DAC Module AD9767 14bit 125MSPS FMC LPC Interface Industrial Grade ±5V Output Powered from FMC Interface is a ALINX SoM / Core Board from ALINX. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does PZ-FL9767D 4 Channel DAC Module AD9767 14bit 125MSPS FMC LPC Interface Industrial Grade ±5V Output Powered from FMC Interface include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order PZ-FL9767D 4 Channel DAC Module AD9767 14bit 125MSPS FMC LPC Interface Industrial Grade ±5V Output Powered from FMC Interface with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is PZ-FL9767D 4 Channel DAC Module AD9767 14bit 125MSPS FMC LPC Interface Industrial Grade ±5V Output Powered from FMC Interface shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
