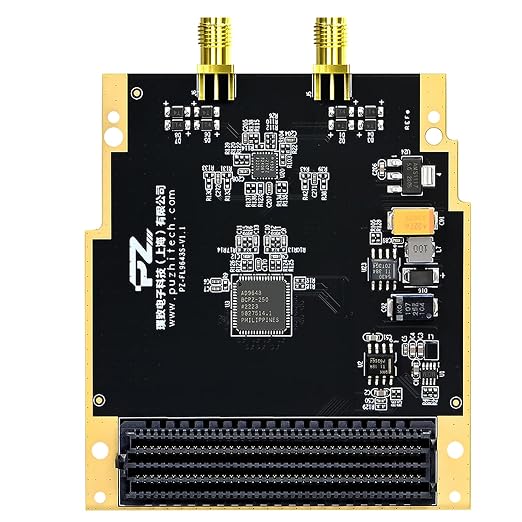

PZ-FL9643S High Speed ADC Module with AD9643 Dual Channel 14bit 250MSPS FMC LPC Interface Industrial Grade -40 to 85C Powered by FMC 12V

PZ-FL9643S High Speed ADC Module with AD9643 Dual Channel 14bit 250MSPS FMC LPC Interface Industrial Grade -40 to 85C Powered by FMC 12V

$259.00 USD
$259.00 USD
Sale Sold out
Shipping calculated at checkout.

PZ-FL9643S High Speed ADC Module with AD9643 Dual Channel 14bit 250MSPS FMC LPC Interface Industrial Grade -40 to 85C Powered by FMC 12V

  • High-Performance ADC Chip: – Equipped with AD9643 offering 2-channel 14-bit resolution and 250MSPS sampling rate for precise analog-to-digital conversion.
  • Industrial-Grade Reliability: – Designed for harsh environments with -40°C to +85°C operating temperature range, ideal for embedded and industrial applications.
  • Compact FMC LPC Interface: – Fully compatible with FMC LPC interface for seamless integration into Xilinx/Intel FPGA systems.
  • Low Power Design: – Efficient 12V power input directly from FMC interface ensures simplified power management.
  • Wide Voltage Range Support: – Handles analog input signals with a 1.75VPP range, suitable for various signal conditioning front-ends.

The PZ-FL9643S is a high-speed ADC acquisition module based on the Analog Devices AD9643 chip. It features two simultaneous 14-bit ADC channels with a maximum sampling rate of 250MSPS, delivering high-resolution digital output for precision data capture. With industrial-grade components supporting wide temperature ranges (-40°C to +85°C), the module is built for performance in demanding environments. Designed for compatibility, it uses a standard FMC LPC interface, allowing easy integration with most FPGA development boards. It is powered directly through the FMC interface with 12V input, simplifying deployment in embedded systems. The input voltage range of 1.75VPP makes it ideal for high-frequency analog signal acquisition in test equipment, SDR, medical imaging, or scientific applications.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM
SKU ALINX-B0FHHRYV94
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
View full details

Frequently asked questions

What is PZ-FL9643S High Speed ADC Module with AD9643 Dual Channel 14bit 250MSPS FMC LPC Interface Industrial Grade -40 to 85C Powered by FMC 12V used for?
PZ-FL9643S High Speed ADC Module with AD9643 Dual Channel 14bit 250MSPS FMC LPC Interface Industrial Grade -40 to 85C Powered by FMC 12V is a ALINX SoM / Core Board from ALINX. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does PZ-FL9643S High Speed ADC Module with AD9643 Dual Channel 14bit 250MSPS FMC LPC Interface Industrial Grade -40 to 85C Powered by FMC 12V include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order PZ-FL9643S High Speed ADC Module with AD9643 Dual Channel 14bit 250MSPS FMC LPC Interface Industrial Grade -40 to 85C Powered by FMC 12V with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is PZ-FL9643S High Speed ADC Module with AD9643 Dual Channel 14bit 250MSPS FMC LPC Interface Industrial Grade -40 to 85C Powered by FMC 12V shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
