PZ-FL9643D AD9643 250MSPS ADC Board 4 Channel 14bit Data Acquisition Module FMC LPC Interface DC AC Input Industrial Grade FPGA Capture Card

PZ-FL9643D AD9643 250MSPS ADC Board 4 Channel 14bit Data Acquisition Module FMC LPC Interface DC AC Input Industrial Grade FPGA Capture Card

$699.00 USD
$699.00 USD
Sale Sold out
Shipping calculated at checkout.

PZ-FL9643D AD9643 250MSPS ADC Board 4 Channel 14bit Data Acquisition Module FMC LPC Interface DC AC Input Industrial Grade FPGA Capture Card

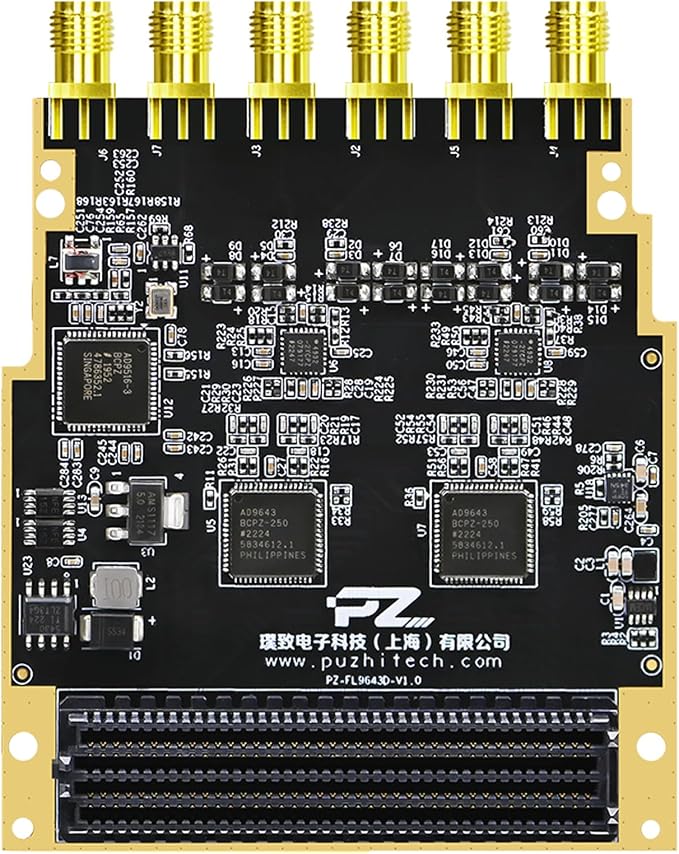

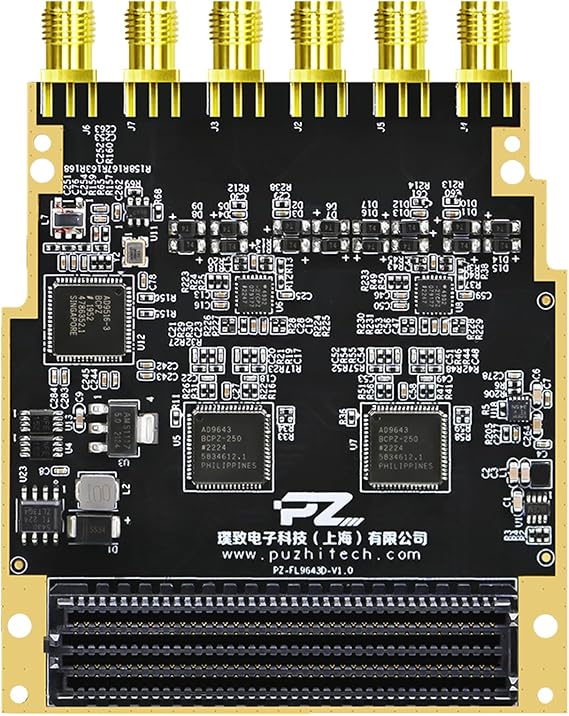

  • High-Performance ADC Chip:Equipped with AD9643 14-bit ADC, supporting up to 250MSPS sampling rate across 4 synchronized input channels for precise signal capture.
  • FMC LPC Interface Compatible:Seamlessly integrates with FPGA development platforms via FMC LPC interface, delivering high-speed and reliable data transmission.
  • Flexible Input Configuration:Supports DC/AC dual-mode signal input (default DC), with optional balun soldering for AC coupling customization based on application needs.
  • Industrial-Grade Durability:Designed for -40°C to +85°C operating temperature range, ideal for demanding industrial, research, and field data acquisition environments.
  • Integrated Trigger and Clock Channels:One trigger input and one external clock input ensure synchronized data acquisition for complex multi-channel systems.

The PZ-FL9643D is a high-performance analog-to-digital converter module designed for industrial and research-level signal acquisition. Featuring the AD9643 14-bit ADC with up to 250MSPS sampling rate, this board supports 4 differential input channels and offers 1 trigger input and 1 external clock input. The default input mode is DC-coupled, with AC coupling available through optional balun soldering. The board connects through an FMC LPC interface and is powered directly via the FMC slot (12V), ensuring seamless integration with Xilinx or Intel FPGA development kits. Its wide industrial temperature range (-40°C to +85°C) makes it suitable for rigorous environments such as lab testing, field measurement, radar, and high-speed communication systems. Whether for prototyping or deployment in signal processing pipelines, PZ-FL9643D provides engineers with a stable, accurate, and flexible ADC solution.
