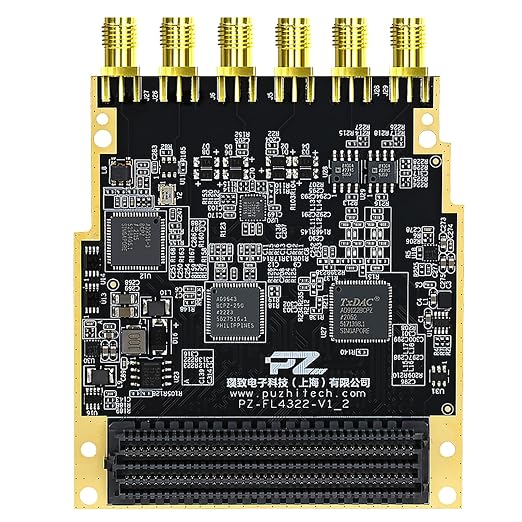

PZ-FL4322 FMC LPC Module AD9643 14bit 250Msps Dual ADC AD9122 16bit 500Msps Dual DAC Clock Trigger Input High-Speed Data Acquisition Board

PZ-FL4322 FMC LPC Module AD9643 14bit 250Msps Dual ADC AD9122 16bit 500Msps Dual DAC Clock Trigger Input High-Speed Data Acquisition Board

$499.00 USD
$499.00 USD
Sale Sold out
Shipping calculated at checkout.

PZ-FL4322 FMC LPC Module AD9643 14bit 250Msps Dual ADC AD9122 16bit 500Msps Dual DAC Clock Trigger Input High-Speed Data Acquisition Board

  • High-Performance ADC and DAC: Integrates Analog Devices AD9643 dual-channel 14-bit 250Msps ADC and AD9122 dual-channel 16-bit 500Msps DAC for precise data conversion.
  • Dual-Channel Input/Output: Supports two ADC input channels and two DAC output channels with adjustable voltage/current range, enabling flexible analog interfacing.
  • Robust Synchronization Features: Equipped with dedicated clock and trigger inputs (3.3V LVCMOS), supporting synchronized sampling and signal generation.
  • Industrial-Grade Reliability: Designed to operate in harsh environments with -40°C to +85°C industrial temperature range; powered through FMC interface.
  • FMC LPC Interface Compatible: Supports seamless integration with FPGA development boards using FMC LPC standard, ideal for data acquisition, waveform generation, and signal testing applications.

The PZ-FL4322 is a professional-grade FMC LPC data acquisition module featuring dual high-speed ADC and DAC channels. Utilizing the AD9643 (14-bit, 250Msps) and AD9122 (16-bit, 500Msps) chips from Analog Devices, it offers superior performance for both signal capture and waveform generation. Designed for integration with FPGA platforms via FMC LPC connector, the board supports clock and trigger synchronization, a default DC I/O mode (with optional AC), and industrial temperature tolerance (-40°C to +85°C). This module is an ideal choice for scientific research, high-speed signal processing, and embedded system prototyping.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.
