PZ-FL3014 FMC LPC USB30 Interface Board with CYUSB3014 Chip 3.2Gbps High Speed Data Transfer Module TypeC Connector for FPGA Development Industrial Grade

PZ-FL3014 FMC LPC USB30 Interface Board with CYUSB3014 Chip 3.2Gbps High Speed Data Transfer Module TypeC Connector for FPGA Development Industrial Grade

$119.00 USD
$119.00 USD
Sale Sold out
Shipping calculated at checkout.

PZ-FL3014 FMC LPC USB30 Interface Board with CYUSB3014 Chip 3.2Gbps High Speed Data Transfer Module TypeC Connector for FPGA Development Industrial Grade

  • High-Speed USB 3.0 Interface:Equipped with the Cypress CYUSB3014 USB 3.0 controller, delivering up to 3.2Gbps data transfer for fast and efficient communication.
  • FMC LPC Compatibility:Supports standard FMC LPC interface, ideal for FPGA development kits and custom hardware prototyping platforms.
  • Industrial Grade Reliability:Designed for industrial applications with -40°C to +85°C temperature range, ensuring long-term stability in harsh environments.
  • Flexible Configuration & Storage:Features EEPROM and SPI Flash, allowing for versatile configuration mode selection and persistent settings storage.
  • Type-C Port for Modern Connectivity:Integrates a USB Type-C connector for easy connection with modern PCs and host devices, simplifying setup and use.

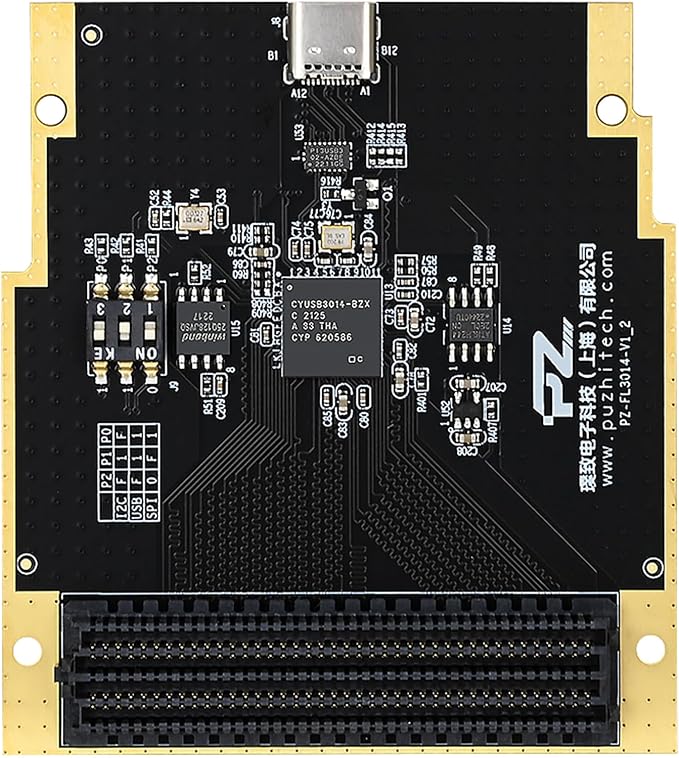

The PZ-FL3014 is a high-speed USB 3.0 interface module designed for FPGA development and embedded applications. It features the CYUSB3014 USB controller from Cypress, supporting a transfer rate up to 3.2Gbps via a reliable Type-C interface. With FMC LPC interface compatibility, this board enables seamless connection with standard FPGA carrier boards. Designed to meet industrial grade requirements, it operates reliably in temperatures ranging from -40°C to +85°C. Integrated EEPROM and SPI Flash memory allow for flexible configuration and persistent data storage. Powered through the FMC interface (12V), this compact module provides a streamlined solution for high-speed communication in industrial and research environments.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM
SKU ALINX-B0FHJQMRFR
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
