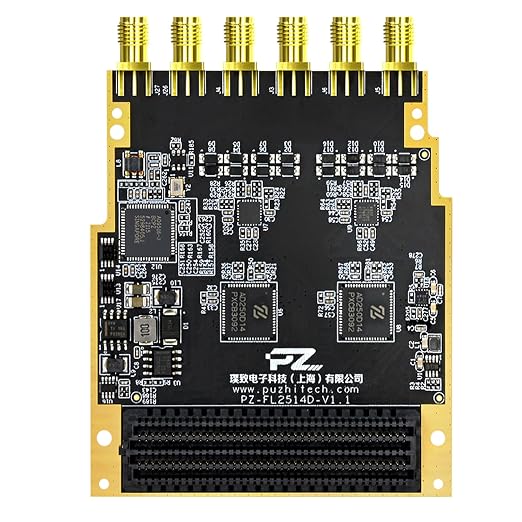

PZ-FL2514D ADC Data Acquisition Board AD250D14 14Bit 250MSPS 4CH FMC LPC Interface Trigger Clock Input Industrial Grade

PZ-FL2514D ADC Data Acquisition Board AD250D14 14Bit 250MSPS 4CH FMC LPC Interface Trigger Clock Input Industrial Grade

$699.00 USD
$699.00 USD
Sale Sold out
Shipping calculated at checkout.

PZ-FL2514D ADC Data Acquisition Board AD250D14 14Bit 250MSPS 4CH FMC LPC Interface Trigger Clock Input Industrial Grade

  • High-Speed 250MSPS Sampling:Equipped with the AD250D14 14-bit ADC chip, supporting up to 250MSPS real-time sampling rate across 4 independent channels.
  • Versatile Input Configuration:Supports DC/AC dual-mode input (default DC) with 1.5Vpp voltage range, plus dedicated trigger and clock input ports for precise synchronization.
  • Robust Industrial-Grade Design:Designed for harsh environments with operating temperature from -40°C to +85°C, ensuring reliable performance under industrial conditions.
  • FMC LPC Interface for FPGA Integration:Directly compatible with FMC LPC connector (12V powered), making it easy to pair with FPGA motherboards for high-speed data capture.
  • Flexible Analog Front-End Options:Onboard DC operational amplifiers and optional Balun soldering support both single-ended and differential signal processing.

PZ-FL2514D is a high-performance FMC-compatible ADC module designed for industrial and research-grade data acquisition systems. It integrates four channels of 14-bit ADCs with a maximum sampling rate of 250MSPS using the AD250D14 chip. A dedicated trigger input and clock input ensure precise synchronization across channels. The module supports both DC and AC coupling (DC default), offering versatility in analog signal capture. This board features an industrial-grade temperature tolerance from -40°C to +85°C and is powered directly from the FMC LPC interface, making it ideal for integration with Xilinx/AMD FPGA development boards. Optional Balun soldering provides flexibility for signal conversion. Whether for signal acquisition, test systems, or embedded designs, the PZ-FL2514D delivers speed, reliability, and industrial-grade stability.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SDR / RF Board
Tags ALINX, ALINX-SDR
SKU ALINX-B0FHKGSMKG
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
View full details

Frequently asked questions

What is PZ-FL2514D ADC Data Acquisition Board AD250D14 14Bit 250MSPS 4CH FMC LPC Interface Trigger Clock Input Industrial Grade used for?
PZ-FL2514D ADC Data Acquisition Board AD250D14 14Bit 250MSPS 4CH FMC LPC Interface Trigger Clock Input Industrial Grade is a ALINX SDR / RF Board from ALINX. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does PZ-FL2514D ADC Data Acquisition Board AD250D14 14Bit 250MSPS 4CH FMC LPC Interface Trigger Clock Input Industrial Grade include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order PZ-FL2514D ADC Data Acquisition Board AD250D14 14Bit 250MSPS 4CH FMC LPC Interface Trigger Clock Input Industrial Grade with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is PZ-FL2514D ADC Data Acquisition Board AD250D14 14Bit 250MSPS 4CH FMC LPC Interface Trigger Clock Input Industrial Grade shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
