PZ-FH9009 ADRV9009 FMC Module 16bit ADC 14bit DAC SDR Board 75MHz to 6GHz JESD204B Interface Supports TDD FDD Full Duplex Clock in Out HPC

PZ-FH9009 ADRV9009 FMC Module 16bit ADC 14bit DAC SDR Board 75MHz to 6GHz JESD204B Interface Supports TDD FDD Full Duplex Clock in Out HPC

$2,599.00 USD
$2,599.00 USD
Sale Sold out
Shipping calculated at checkout.

PZ-FH9009 ADRV9009 FMC Module 16bit ADC 14bit DAC SDR Board 75MHz to 6GHz JESD204B Interface Supports TDD FDD Full Duplex Clock in Out HPC

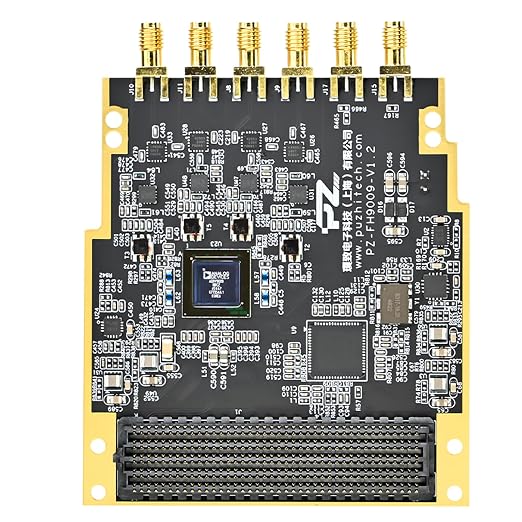

  • Wideband Frequency Coverage:Covers 75MHz–6GHz with support for both TDD and FDD duplexing. Ideal for wideband RF signal transmission and reception in SDR applications.
  • High-Performance ADRV9009 Chipset:Features Analog Devices ADRV9009 with 16-bit ADC and 14-bit DAC for high dynamic range and superior signal fidelity.
  • Flexible Clock Options:Supports both onboard and external clock sources with dedicated CLK IN/OUT ports, enabling phase synchronization across systems.
  • Advanced JESD204B Interface:High-speed JESD204B digital interface ensures low-latency, high-throughput data communication with FPGA carrier boards.
  • FMC HPC Interface & Compact Size:Designed with a high-pin-count FMC connector (HPC), compatible with Xilinx FPGA platforms. Compact form factor: 69mm × 76.5mm.

The PZ-FH9009 FMC module integrates the Analog Devices ADRV9009 transceiver to deliver a high-performance SDR front-end for advanced wireless systems. It supports 16-bit ADC and 14-bit DAC, offering excellent dynamic range for both transmission and reception. Operating over a wide frequency range from 75MHz to 6GHz, it supports TDD/FDD and full/half-duplex modes. Equipped with external clock input/output and an optional external local oscillator (LO) port, the board enables synchronized multi-channel operation. With FMC HPC interface and JESD204B support, it seamlessly connects to FPGA platforms for real-time signal processing. The compact form factor makes it suitable for embedded applications and lab setups. Whether for wireless research, radar prototyping, or industrial communication systems, the PZ-FH9009 provides unmatched flexibility and performance.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM
SKU ALINX-B0FHVX5VZV
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
View full details
