PZ-FH8052 AD9680 1GSPS ADC AD9152 1.125GSPS DAC FMC HPC Module Dual-Channel Industrial Grade Data Acquisition Board

PZ-FH8052 AD9680 1GSPS ADC AD9152 1.125GSPS DAC FMC HPC Module Dual-Channel Industrial Grade Data Acquisition Board

• High-Speed ADC/DAC Performance: Integrated with AD9680 14-bit 1GSPS dual-channel ADC and AD9152 16-bit 1.125GSPS dual-channel DAC, ensuring precise signal digitization and generation.
• Industrial Grade Reliability: Operates in harsh environments from -40°C to +85°C, suitable for robust embedded applications and field deployments.
• Flexible Signal Interface: Supports AC-coupled I/O with adjustable 4–20mA DAC current output and 1.7Vpp ADC input range for broad analog signal compatibility.
• FMC HPC Interface Ready: Seamlessly integrates into FPGA platforms via FMC HPC (High Pin Count) interface; powered directly from FMC with 12V supply.
• Compact Form Factor: Compact PCB size (76.5mm x 69mm) with well-labeled SMA connectors for trigger, clock, input, and output, ideal for lab and system integration.

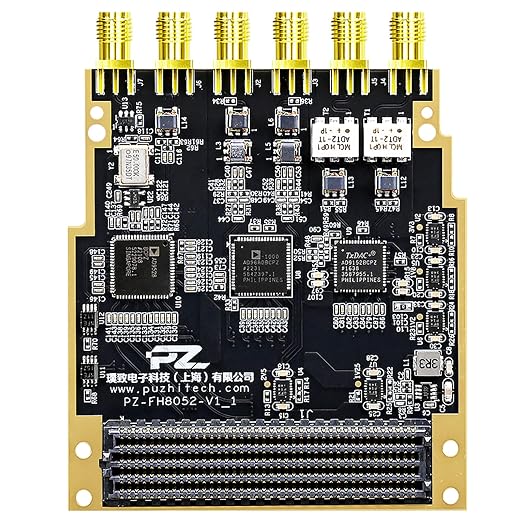

The PZ-FH8052 is a high-performance data acquisition and signal generation module built for advanced RF, instrumentation, and high-speed communication applications. Featuring the Analog Devices AD9680 (dual-channel, 14-bit, 1GSPS ADC) and AD9152 (dual-channel, 16-bit, 1.125GSPS DAC), it offers exceptional signal integrity and sampling precision. Designed with industrial-grade components for extreme environments (-40°C to +85°C), this module ensures consistent operation in both lab and field systems. Its FMC HPC interface allows seamless integration with FPGA development boards, while onboard clock, trigger, and analog I/O ports provide a plug-and-play interface for data converters. Key specifications include: ADC: AD9680, 2 channels, 14-bit, 1GSPS DAC: AD9152, 2 channels, 16-bit, 1.125GSPS I/O Mode: AC coupling Voltage/Current Range: 1.7Vpp (ADC), 4–20mA adjustable (DAC) Power: 12V via FMC HPC Form Factor: 76.5mm x 69mm Ideal for system integrators, researchers, and OEMs seeking high-performance analog front-ends." "PZ-FH8052 Data Acquisition Board AD9680 ADC Module AD9152 DAC Module 1GSPS ADC 1.125GSPS DAC FMC HPC Interface Module Dual Channel ADC DAC Board FPGA ADC FMC Card High Speed Data Converter Module Industrial Grade Signal Module Xilinx FPGA Compatible ADC DAC

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.

Specifications
