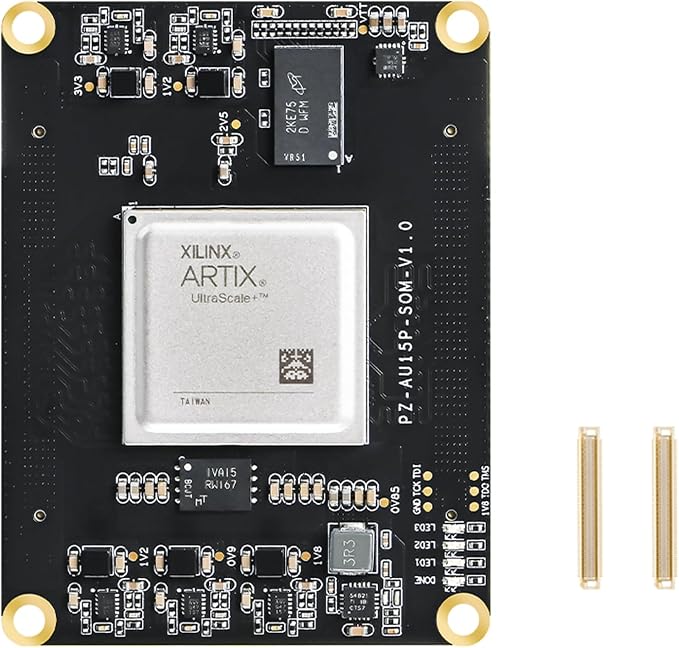

  • PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU… — view 3
  • PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU… — view 4
  • PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU… — view 5
  • PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU… — view 6
  • PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU… — view 7
  • PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU… — view 8
1 8

ALINX

PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU15P 20P Artix Ultrascale+ DDR4 1GB QSPI Flash 256Mb 12G GTH 168P Connector Industrial Grade (PZ-AU15P-SOM, SOM with Connectors)

PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU15P 20P Artix Ultrascale+ DDR4 1GB QSPI Flash 256Mb 12G GTH 168P Connector Industrial Grade (PZ-AU15P-SOM, SOM with Connectors)

$341.00 USD
$341.00 USD
Sale Sold out
Shipping calculated at checkout.

PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU15P 20P Artix Ultrascale+ DDR4 1GB QSPI Flash 256Mb 12G GTH 168P Connector Industrial Grade (PZ-AU15P-SOM, SOM with Connectors)

  • Five Bullet PointsIndustrial Grade FPGA Core:Powered by Xilinx Artix UltraScale+ AU15P or AU20P FPGAs, ideal for high-reliability industrial applications with -40°C to +85°C operating range.
  • High-Speed Memory and Boot:Equipped with 1GB 16-bit DDR4 and 256Mb QSPI Flash to support fast startup and stable performance for embedded processing systems.
  • Flexible IOs and GTH Interfaces:Offers 168 single-ended IOs and 12 pairs of GTH transceivers, supporting voltage levels from 1.2V to 3.3V with adjustable logic compatibility.
  • Dual Crystal Oscillators for Precision:Includes both 200MHz and 125MHz differential crystal oscillators to ensure accurate FPGA timing and GT reference clocks.
  • Compact and Robust Design:Compact SOM form factor (75mm x 55mm) with 168P connectors and 0.5mm pitch, using immersion gold PCB for enhanced durability and signal integrity.

The PZ-AU15P-SOM and PZ-AU20P-SOM are high-performance FPGA System on Modules built with Xilinx Artix UltraScale+ series chips (XCAU15P-2FFVB676I / XCAU20P-2FFVB676I). Designed for industrial-grade applications, these modules integrate 1GB DDR4 memory, 256Mb QSPI Flash, and 12 GTH transceivers, providing a balanced solution for data acquisition, signal processing, and embedded control systems. With wide IO voltage compatibility (1.2V to 3.3V), dual differential crystal oscillators (200MHz and 125MHz), and a compact 75mm x 55mm footprint using high-reliability 168P connectors, this SOM is well-suited for space-constrained and performance-critical projects. Whether you're developing industrial automation, instrumentation, or advanced RF systems, the PZ-AU15P/20P-SOM offers flexibility, speed, and reliability.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM, Xilinx-UltraScale+, Xilinx-ZynqUS+
SKU ALINX-B0FHGSLJSG
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
View full details

Not sure which platform fits your project?

Frequently asked questions

What is PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU15P 20P Artix Ultrascale+ DDR4 1GB QSPI Flash 256Mb 12G GTH 168P Connector Industrial Grade (PZ-AU15P-SOM, SOM with Connectors) used for?
PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU15P 20P Artix Ultrascale+ DDR4 1GB QSPI Flash 256Mb 12G GTH 168P Connector Industrial Grade (PZ-AU15P-SOM, SOM with Connectors) is a ALINX SoM / Core Board from ALINX. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU15P 20P Artix Ultrascale+ DDR4 1GB QSPI Flash 256Mb 12G GTH 168P Connector Industrial Grade (PZ-AU15P-SOM, SOM with Connectors) include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU15P 20P Artix Ultrascale+ DDR4 1GB QSPI Flash 256Mb 12G GTH 168P Connector Industrial Grade (PZ-AU15P-SOM, SOM with Connectors) with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is PZ-AU15P-SOM AMD Xilinx SOM FPGA Module XCAU15P 20P Artix Ultrascale+ DDR4 1GB QSPI Flash 256Mb 12G GTH 168P Connector Industrial Grade (PZ-AU15P-SOM, SOM with Connectors) shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
