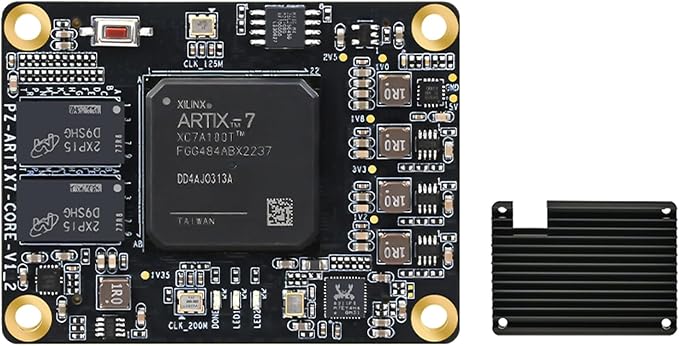

  • PZ-A735T-KFB A775T A7100T A7200T AMD FPGA SO… — view 3
  • PZ-A735T-KFB A775T A7100T A7200T AMD FPGA SO… — view 4
  • PZ-A735T-KFB A775T A7100T A7200T AMD FPGA SO… — view 5
  • PZ-A735T-KFB A775T A7100T A7200T AMD FPGA SO… — view 6
  • PZ-A735T-KFB A775T A7100T A7200T AMD FPGA SO… — view 7
  • PZ-A735T-KFB A775T A7100T A7200T AMD FPGA SO… — view 8
1 8

ALINX

PZ-A735T-KFB A775T A7100T A7200T AMD FPGA SOM XC7A35T 75T 100T 200T Industrial Grade 1GB DDR3 256Mb QSPI Gigabit Ethernet for Xilinx Artix 7 Projects (PZ-A7100T-SOM, SOM with Heatsink)

PZ-A735T-KFB A775T A7100T A7200T AMD FPGA SOM XC7A35T 75T 100T 200T Industrial Grade 1GB DDR3 256Mb QSPI Gigabit Ethernet for Xilinx Artix 7 Projects (PZ-A7100T-SOM, SOM with Heatsink)

$218.80 USD
$218.80 USD
Sale Sold out
Shipping calculated at checkout.

PZ-A735T-KFB A775T A7100T A7200T AMD FPGA SOM XC7A35T 75T 100T 200T Industrial Grade 1GB DDR3 256Mb QSPI Gigabit Ethernet for Xilinx Artix 7 Projects (PZ-A7100T-SOM, SOM with Heatsink)

  • Multi-Model Artix-7 FPGA Options:Available in XC7A35T XC7A75T XC7A100T XC7A200T with -2 speed grade, industrial-grade -40°C to +85°C, ideal for complex embedded designs.
  • High-Speed Memory & Storage:Integrated 1GB DDR3 RAM and 256Mb QSPI FLASH ensure fast data access and reliable booting via JTAG or default QSPI mode.
  • Enhanced Clock Accuracy:Equipped with 200 MHz differential crystal for FPGA core and 125 MHz differential crystal for GT reference clock.
  • Comprehensive I/O and GTP Resources:Supports up to 172 user IOs and multiple high-speed transceivers (GTP), suitable for custom communication protocols.
  • Robust Connectivity & Compact Design:Built-in Gigabit Ethernet PHY, dual 120-pin high-density connectors, and 60×45mm form factor for flexible system integration.

The PZ-A735T/A775T/A7100T/A7200T series FPGA core board is powered by AMD Xilinx Artix-7 chips (XC7A35T to XC7A200T) in industrial-grade FGG/FGB484 packages. Designed for performance-demanding applications, it features 1GB DDR3 memory, 256Mb QSPI Flash, and a high-speed Gigabit Ethernet PHY. Dual differential crystal oscillators (200 MHz and 125 MHz) ensure stable operation and precise timing. This compact 60mm × 45mm core module integrates 120-pin high-density connectors for seamless expansion. Supporting JTAG/QSPI boot, it’s ideal for high-speed data processing, communication systems, and customized logic development. With excellent IO density (up to 172 IOs), TX/RX pairs, and a robust power design (5V/2A), this board delivers industry-grade reliability in a compact form factor.

ALINX (FPGA China) is a leading Chinese designer and manufacturer of Xilinx / AMD FPGA development boards, Zynq SoM core boards, SDR and high-speed IO modules — engineered for embedded, industrial, SDR, video and AI edge applications.

Specifications follow the manufacturer listing. Contact us for datasheets, carrier-board reference designs or volume / OEM pricing.


Specifications

Model PZ
Brand / Series ALINX
Product Type ALINX SoM / Core Board
Tags ALINX, ALINX-SoM
SKU ALINX-B0FHFYBM2N
Condition New
Warranty 12-month warranty (accessories excluded)
Shipping Worldwide from Shenzhen, China (DHL / FedEx / UPS / SF)
Customs Buyer is responsible for import duties and taxes (DDU)
Support lixu@ai-paipai.com
