Puzhi

Puzhi FPGA ZYNQ7000 ZYNQ7035 Core Board PZ7035-SOM-900 ARM Cortex-A9 DDR3 EMMC

Puzhi FPGA ZYNQ7000 ZYNQ7035 Core Board PZ7035-SOM-900 ARM Cortex-A9 DDR3 EMMC

$499.00 USD
$499.00 USD
Sale Sold out
Shipping calculated at checkout.

The Puzhi FPGA is a system-on-module (SoM) based on the XC7Z035-2FFG900I (ZYNQ7000 ZYNQ7035 SoC Core Board). Key resources include 275K logic cells, 900 DSP slices, 17.6Mb block RAM with Total 2GB, PS Side 1GB/ PL Side 1GB DDR3/DDR memory. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

QSPI FLASH 256Mb
Program Memory Type Flash
BLOCK RAM 17.6Mb
MPN PZ7035-SOM-676, PZ7035-SOM-900
Item Length 3.3in
PS Side MIO 24
Processor Core Dual Core ARM Cortex-A9, Main Frequency 800Mhz
FPGA Chip XC7Z035-2FFG900I
Kit Name FPGA Development Board for Makers and Hobbyists
User LED 5
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi

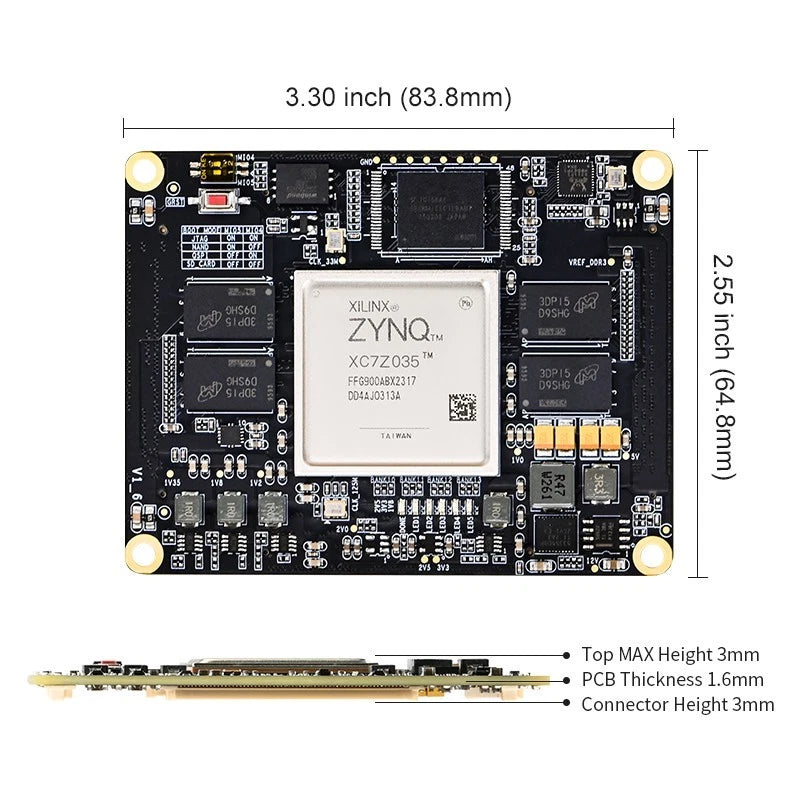

Core Board Form Factors 3.30 inch x 2.55 inch (83.8mm x 64.8mm)
Item Width 2.55in
EMMC 8GB, to Store Startup Files and User Files
Core FPGA
Chip Level Industrial Grade (-40°C~+85°C)
Logic Cells 275K
Flip-Flops 343800
Brand Puzhi
Series Xilinx FPGA SoM ZYNQ7000 ZYNQ7035 SoC Core Board
Type FPGA Core Board
Speed Grade 2
DSP Slices 900
Lookup Tables 171900
Country of Origin China
DDR3 Total 2GB, PS Side 1GB/ PL Side 1GB
Gigabit Ethernet 1

Product Details

Puzhi FPGA ZYNQ7000 ZYNQ7035 Core Board PZ7035-SOM-900 Main Features: - ZYNQ core board, dual-core ARM Cortex-A9, main frequency 800Mhz - PS Side 1GB, PL Side 1GB DDR3, 8GB EMMC, 256Mb QSPI FLASH - Size 83.8 x 64.8mm, up to 264 IO available - Extreme material selection and process standards, industrial grade -40℃~+85℃ - Support PYNQ, provide hardware reference & rich routines, help product development FPGA Core Board: PZ7035-SOM-900, FPGA Chip: XC7Z035-2FFG900I, Processor Core: Dual Core ARM Cortex-A9, Main Frequency 800Mhz, Speed Grade: 2, Chip Level: Industrial Grade (-40°C~+85°C), Logic Cells: 275K, Lookup Tables: 171900, Flip-Flops: 343800, DSP Slices: 900, BLOCK RAM: 17.6Mb, DDR3/DD3L: Total 2GB, PS Side 1GB/ PL Side 1GB.

View full details

Not sure which platform fits your project?

Frequently asked questions

What is Puzhi FPGA ZYNQ7000 ZYNQ7035 Core Board PZ7035-SOM-900 ARM Cortex-A9 DDR3 EMMC used for?
Puzhi FPGA ZYNQ7000 ZYNQ7035 Core Board PZ7035-SOM-900 ARM Cortex-A9 DDR3 EMMC is a Xilinx FPGA SoM from Puzhi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does Puzhi FPGA ZYNQ7000 ZYNQ7035 Core Board PZ7035-SOM-900 ARM Cortex-A9 DDR3 EMMC include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order Puzhi FPGA ZYNQ7000 ZYNQ7035 Core Board PZ7035-SOM-900 ARM Cortex-A9 DDR3 EMMC with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is Puzhi FPGA ZYNQ7000 ZYNQ7035 Core Board PZ7035-SOM-900 ARM Cortex-A9 DDR3 EMMC shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
