Puzhi FPGA ZYNQ7000 ZYNQ7020 Development Board Dual-core ARM Cortex-A9 1GB DDR3

Puzhi FPGA ZYNQ7000 ZYNQ7020 Development Board Dual-core ARM Cortex-A9 1GB DDR3

$299.99 USD
$299.99 USD
Sale Sold out
Shipping calculated at checkout.

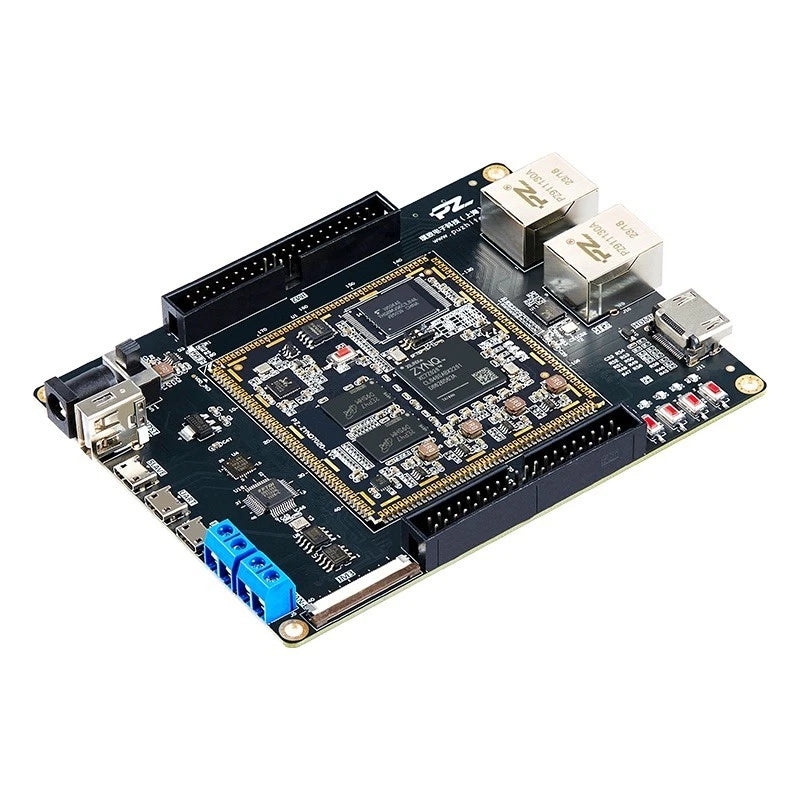

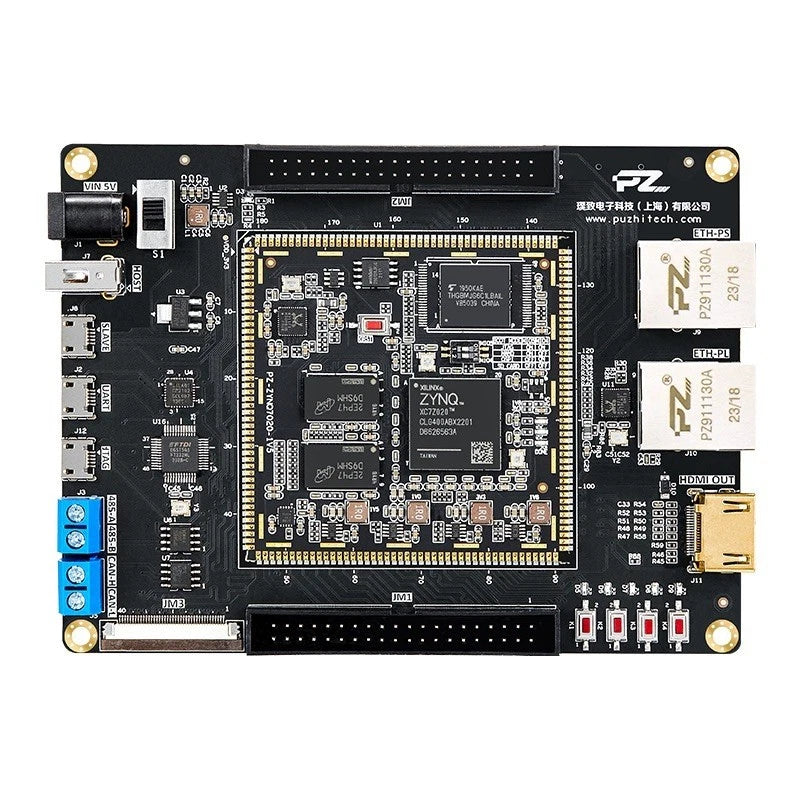

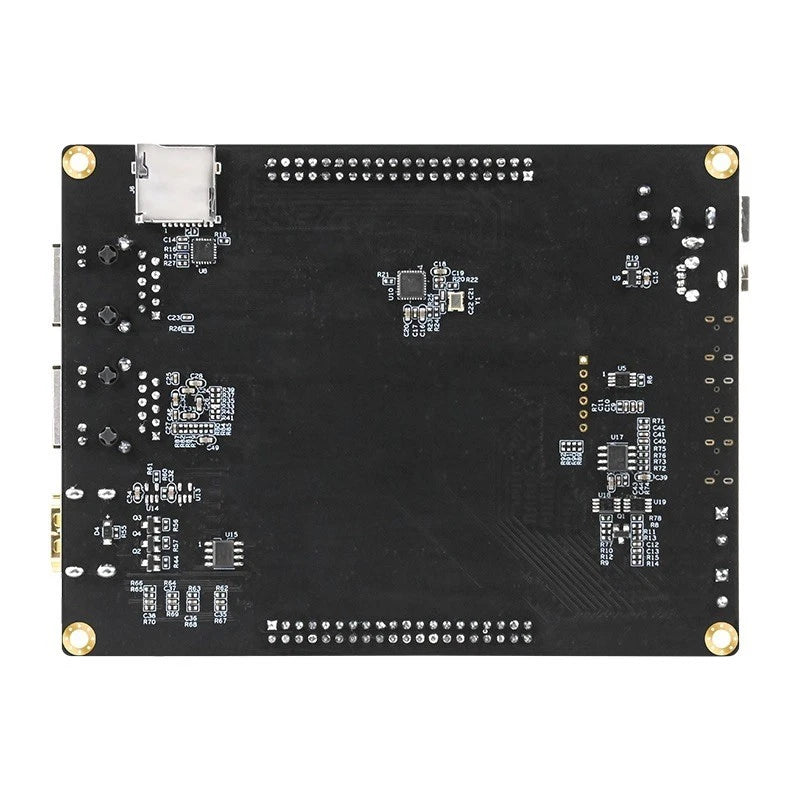

Puzhi ZYNQ7000 is an industrial-grade development board built around the XC7Z020-2CLG400I FPGA. It provides 85K logic cells, 220 DSP slices, 4.9Mb block RAM. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

BLOCK RAM 4.9Mb
Brand Puzhi
Chip Level Industrial Grade (-40°C~+85°C)
Core FPGA
Core Board Form Factors 2.40 inch x 2.40 inch (61mm x 61mm)
DDR3/DD3L 1GB
DSP Slices 220
FPGA Chip XC7Z020-2CLG400I
Features Ethernet, Flash Memory, Flexible Connectivity, I/O Header, JTAG Support, LED
Flip-Flops 106400
Item Length 3.78in
Item Width 5.04in
Kit Name FPGA Development Board for Makers and Hobbyists
Logic Cells 85K
Lookup Tables 53200
PL Side IO Total 118 Single-ended IOs of which, 70 IOs Levels fixed at 3.3V
PS Side MIO 24
Processor Core Dual Core ARM Cortex-A9
Program Memory Type Flash
QSPI FLASH 128Mb
Series ZYNQ7000 ZYNQ7020
Speed Grade 2
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
Type FPGA Development Board
User LED 2

Product Details

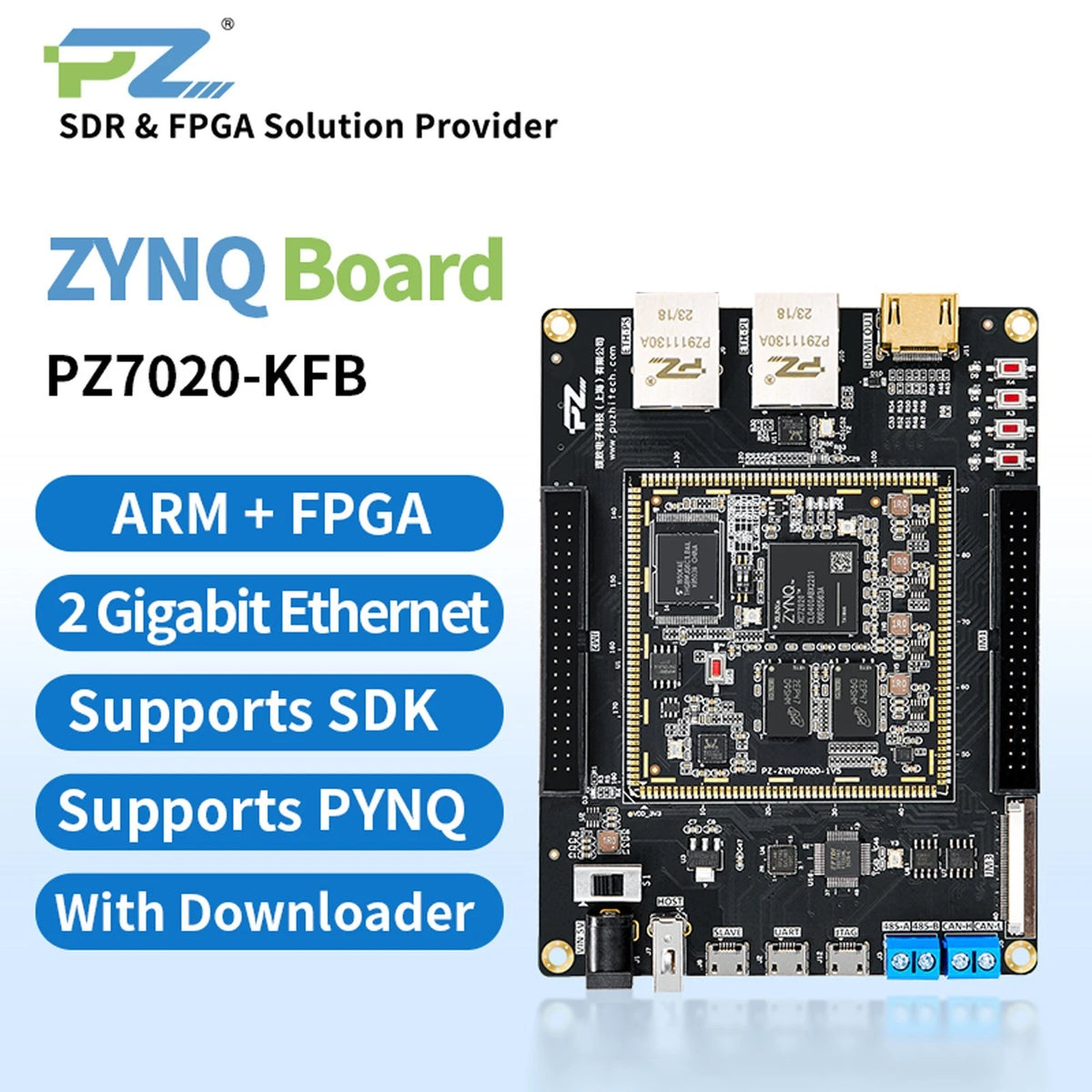

eBay Puzhi FPGA ZYNQ7000 ZYNQ7020 Development Board PZ7020-KFB

ARM+FPGA architecture, dual-core ARM Cortex-A9, main frequency 766Mhz

Core parameters 1GB DDR3, 8GB EMMC, 128Mb QSPIFLASH

Stamp HoleSmall Core Board, Size 61mm*61mm

Reserved ports UART, RS485, CAN, Dual Gigabit Ethernet, HDMI, etc

Support SDK development, support PYNQ, rich routines, help product development

FPGA Dev. Board

PZ7020-KFB

FPGA Chip

XC7Z020-2CLG400I

Processor Core

Dual Core ARM Cortex-A9

Speed Grade

Chip Level

Industrial Grade (-40°C~+85°C)

Logic Cells

85K

Lookup Tables

53200

Flip-Flops

106400

DSP Slices

220

BLOCK RAM

4.9Mb

View full details

Not sure which platform fits your project?

Frequently asked questions

What is Puzhi FPGA ZYNQ7000 ZYNQ7020 Development Board Dual-core ARM Cortex-A9 1GB DDR3 used for?
Puzhi FPGA ZYNQ7000 ZYNQ7020 Development Board Dual-core ARM Cortex-A9 1GB DDR3 is a Xilinx FPGA Dev Board from Puzhi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does Puzhi FPGA ZYNQ7000 ZYNQ7020 Development Board Dual-core ARM Cortex-A9 1GB DDR3 include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order Puzhi FPGA ZYNQ7000 ZYNQ7020 Development Board Dual-core ARM Cortex-A9 1GB DDR3 with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is Puzhi FPGA ZYNQ7000 ZYNQ7020 Development Board Dual-core ARM Cortex-A9 1GB DDR3 shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
