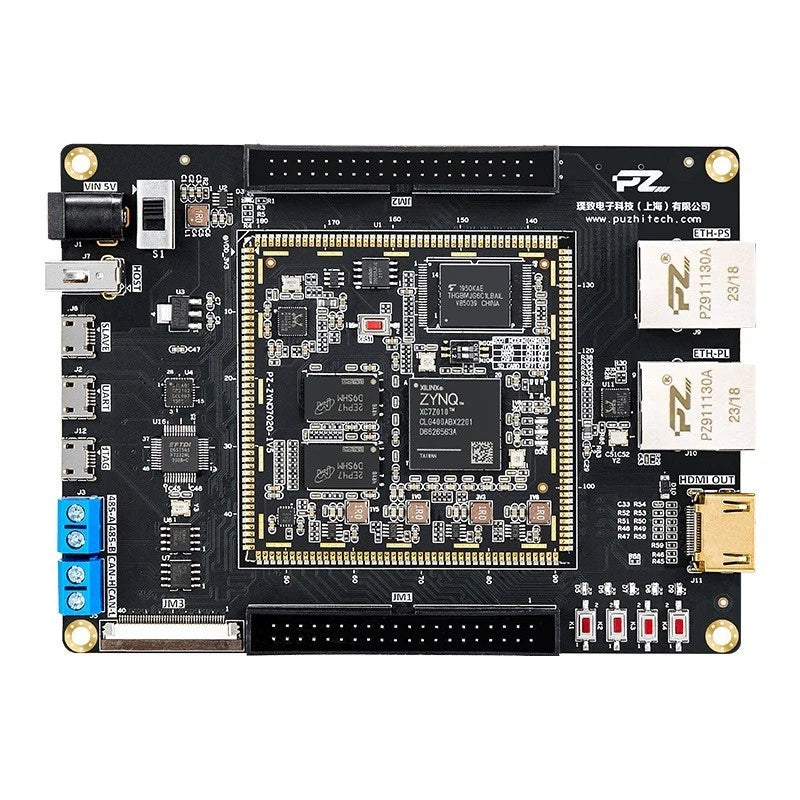

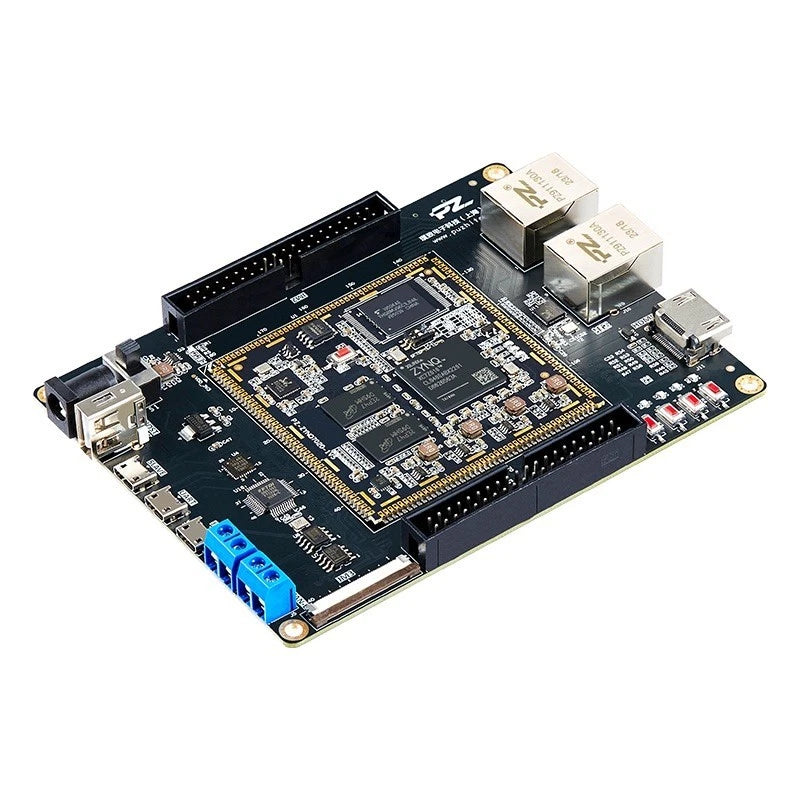

Puzhi FPGA ZYNQ7000 ZYNQ7010 Development Board PZ7010-KFB ARM Cortex-A9 DDR3

Puzhi FPGA ZYNQ7000 ZYNQ7010 Development Board PZ7010-KFB ARM Cortex-A9 DDR3

$239.90 USD
$239.90 USD
Sale Sold out
Shipping calculated at checkout.

Built for embedded deployment, the Puzhi FPGA development board pairs a XC7Z010-2CLG400I with 512MB DDR3/DDR memory and a practical I/O set. On-chip resources: 28K logic cells, 80 DSP slices, 2.1Mb block RAM. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

BLOCK RAM 2.1Mb
Brand Puzhi
Chip Level Industrial Grade (-40°C~+85°C)
Core FPGA
Core Board Form Factors 5.04 inch x 3.78 inch (128 mm x 96mm)
DDR3 512MB
DSP Slices 80
FPGA Chip XC7Z010-2CLG400I
Features Ethernet, Flash Memory, Flexible Connectivity, I/O Header, JTAG Support, LED
Item Length 3.78in
Item Width 5.04in
Kit Name FPGA Development Board for Makers and Hobbyists
Logic Cells 28K
MPN PZ7010-KFB
Program Memory Type Flash
QSPI FLASH 128Mb
Reset KEY 4 KEYs
Series dual-core ARM Cortex-A9
Slices 80
Speed Grade 2
Start-up Mode JTAG/QSPI/SD, On-board DIP Switch Selection
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
Type FPGA Development Board
User LED 5

Product Details

eBay Puzhi FPGA ZYNQ7000 ZYNQ7010 Development Board PZ7010-KFB

ARM+FPGA architecture, dual-core ARM Cortex-A9, main frequency 667Mhz

Core parameters 512MB DDR3, 4GB EMMC, 128Mb QSPIFLASH

Stamp HoleSmall Core Board, Size 61mm*61mm

Reserved ports UART, RS485, CAN, Dual Gigabit Ethernet, HDMI, etc

Support SDK development, support PYNQ, rich routines, help product development

FPGA Dev. Board

PZ7010-KFB

FPGA Chip

XC7Z010-2CLG400I

Processor Core

Dual Core ARM Cortex-A9

Speed Grade

Chip Level

Industrial Grade (-40°C~+85°C)

Logic Cells

28K

Lookup Tables

17600

Flip-Flops

35200

DSP Slices

BLOCK RAM

2.1Mb

DDR3/DD3L

View full details

Not sure which platform fits your project?

Frequently asked questions

What is Puzhi FPGA ZYNQ7000 ZYNQ7010 Development Board PZ7010-KFB ARM Cortex-A9 DDR3 used for?
Puzhi FPGA ZYNQ7000 ZYNQ7010 Development Board PZ7010-KFB ARM Cortex-A9 DDR3 is a Xilinx FPGA Dev Board from Puzhi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does Puzhi FPGA ZYNQ7000 ZYNQ7010 Development Board PZ7010-KFB ARM Cortex-A9 DDR3 include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order Puzhi FPGA ZYNQ7000 ZYNQ7010 Development Board PZ7010-KFB ARM Cortex-A9 DDR3 with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is Puzhi FPGA ZYNQ7000 ZYNQ7010 Development Board PZ7010-KFB ARM Cortex-A9 DDR3 shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
