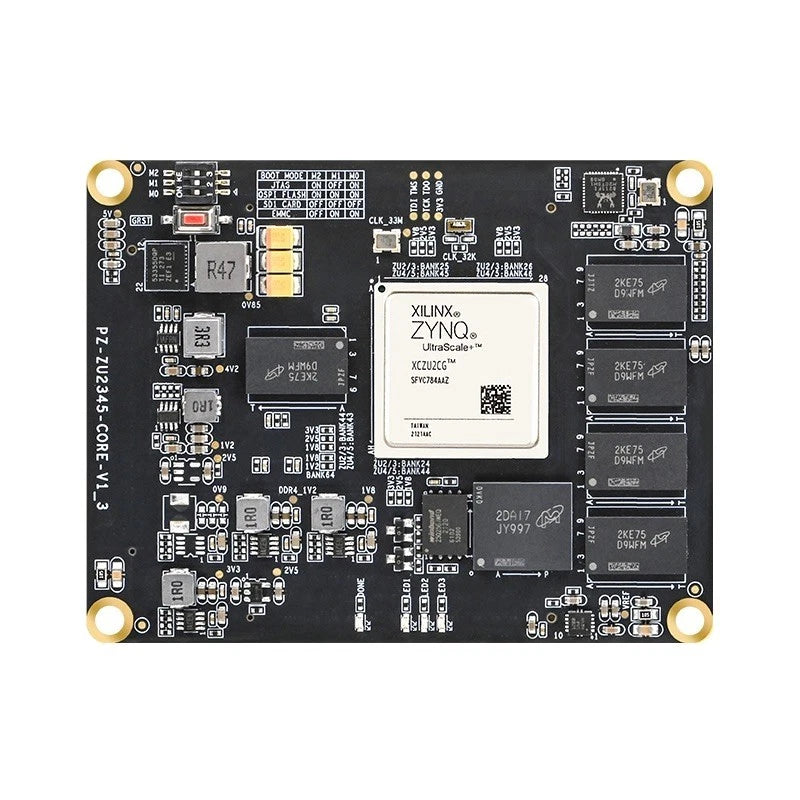

  • Puzhi ZU2CG — view 3

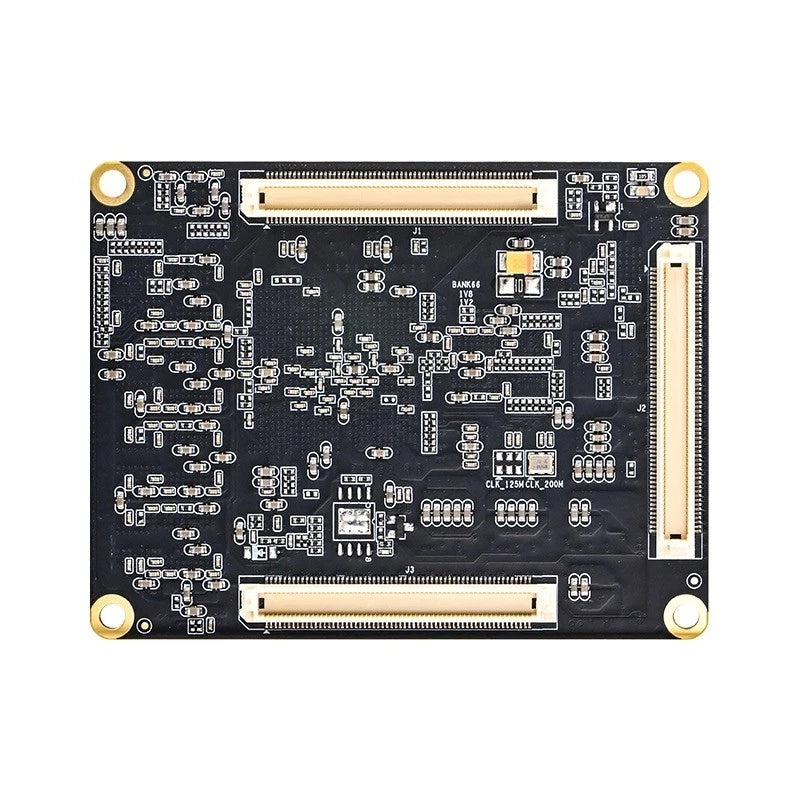

  • Puzhi ZU2CG — view 4

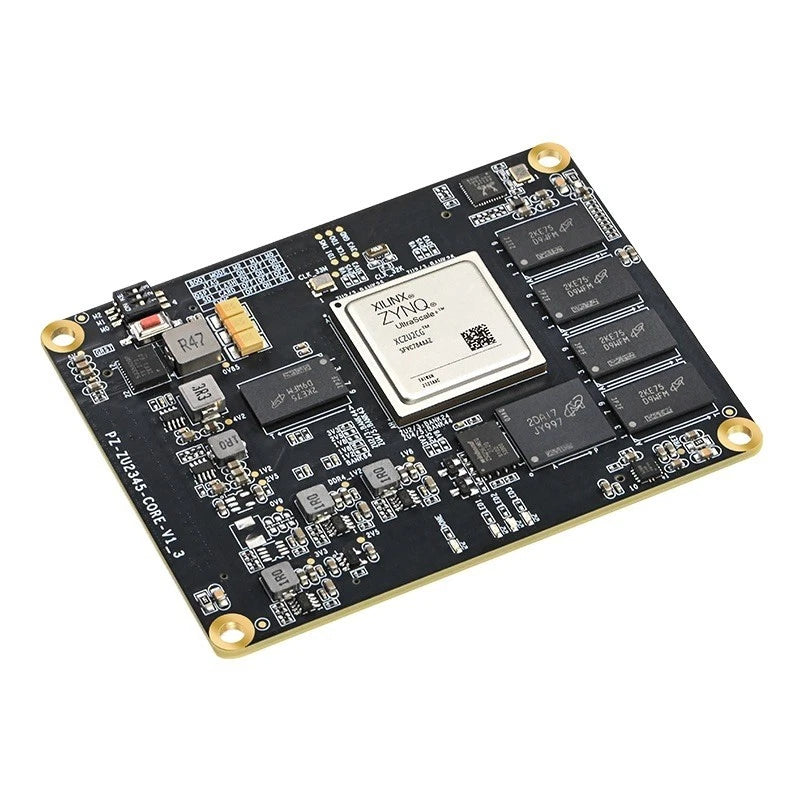

  • Puzhi ZU2CG — view 5
  • Puzhi ZU2CG — view 6

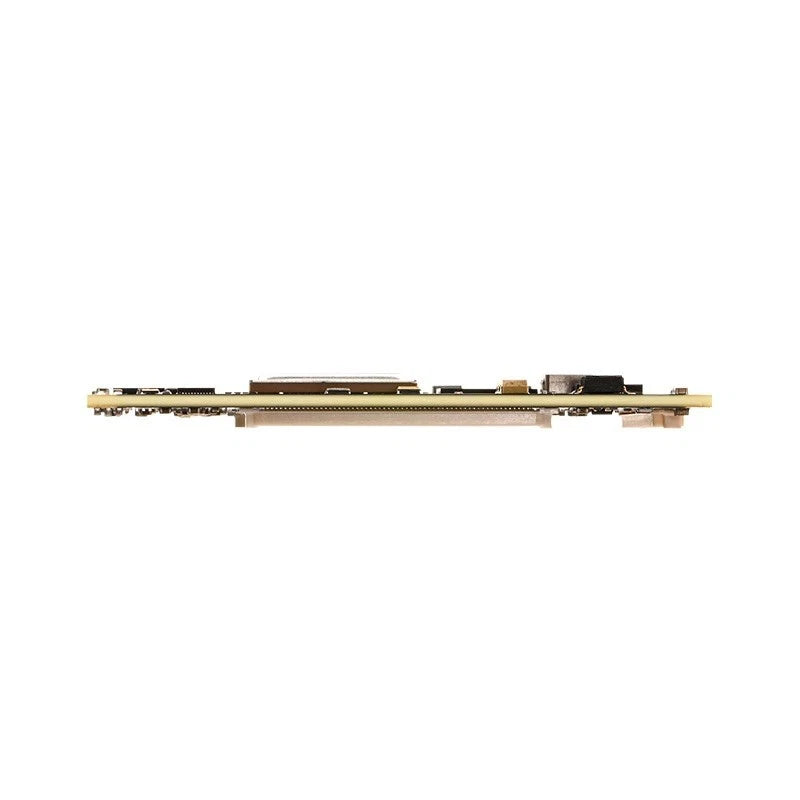

  • Puzhi ZU2CG — view 7
1 7

Puzhi

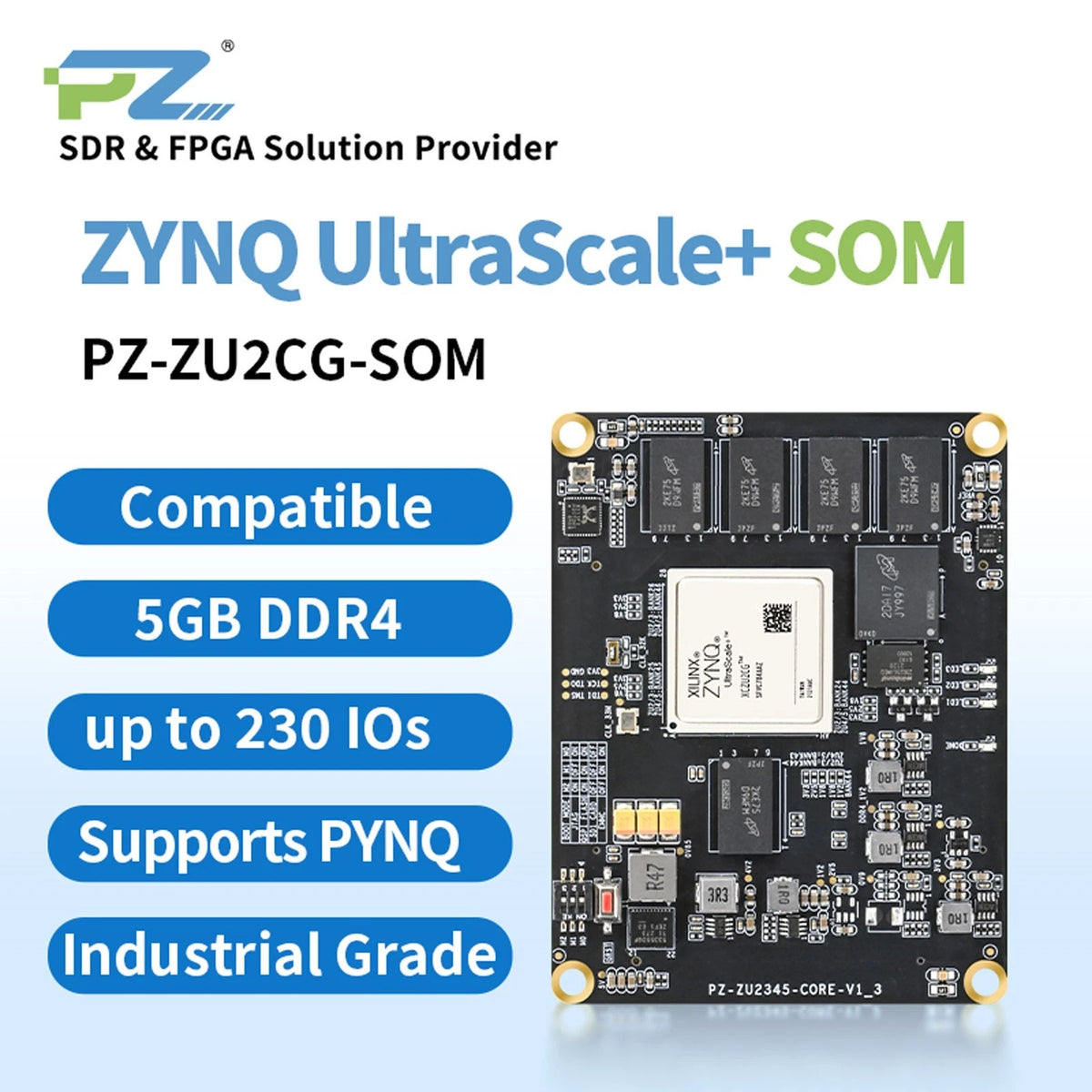

Puzhi FPGA ZYNQ UltraScale+ ZU2CG Core Board PZ-ZU2CG-SOM 2 x Cortex-A53, DDR4

Puzhi FPGA ZYNQ UltraScale+ ZU2CG Core Board PZ-ZU2CG-SOM 2 x Cortex-A53, DDR4

$499.90 USD
$499.90 USD
Sale Sold out
Shipping calculated at checkout.

The Puzhi FPGA is a system-on-module (SoM) based on the XCZU2CG-2SFVC784I (PZ-ZU2CG-SOM). Key resources include 103K logic cells, 240 DSP slices, 5.3Mb block RAM. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

QSPI FLASH 256Mb
Program Memory Type Flash
Slices 240
BLOCK RAM 5.3Mb
MPN PZ-ZU2CG-SOM
Item Length 3.3in
FPGA Chip XCZU2CG-2SFVC784I
Kit Name FPGA Development Board for Makers and Hobbyists
Technology Black Matte. Immersion Gold Process
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
User LEDs 3

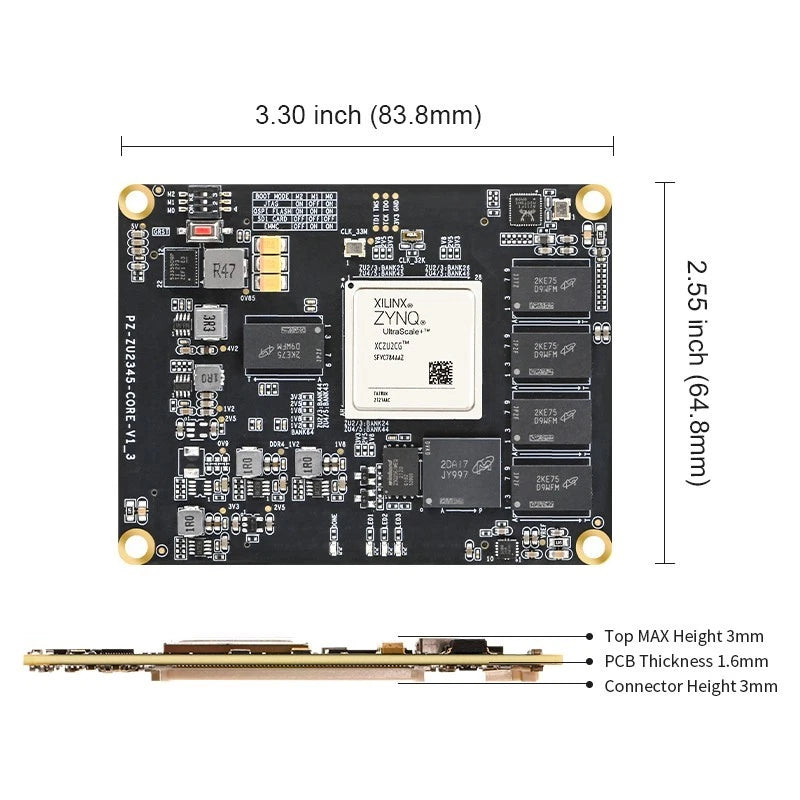

Core Board Form Factors 3.30 inch x 2.55 inch (83.8mm x 64.8mm)
Item Width 2.55in
Core FPGA
Chip Level Industrial Grade (-40°C~+85°C)
Logic Cells 103K
Brand Puzhi
Start-up Mode JTAG/QSPI/SD/EMMC, Default SD startup
Series PZ-ZU2CG-SOM
Type FPGA Core Board
Reset KEY 1
Speed Grade 2
DSP Slices 240
Country of Origin China
Gigabit Ethernet Chip 1

Product Details

eBay Puzhi FPGA ZYNQ UltraScale+ ZU2CG Core Board PZ-ZU2CG-SOM

Puzhi FPGA ZYNQ UltraScale+ ZU2CG Core Board How can we realize your requirements of industrial program development? 1. Multi-Platform Compatibility 2. Up to 230 l0s What is the advantage of Puzhi FPGA ZYNQ core board? 1. Super-high cost-effective 2. PS Side 4GB DDR4 PL Side 1GB DDR4 3. Supports PYNO Demos

Main Features:

ZYNQ UltraScale+ core board, 2 x Cortex-A53, main frequency 1.2Ghz

PS Side 4GB, PL Side 1GB DDR4, 8GB EMMC, 256Mb QSPIFLASH

Size 83.8*64.8mm, up to 230 IO available

Extreme material selection and process standards, industrial grade -40℃~+85℃

Support PYNQ, provide hardware reference & rich routines, help product development

FPGA Core Board

PZ-ZU2CG-SOM

FPGA Chip

XCZU2CG-2SFVC784I

Processor Core

2 x Cortex-A53-1.2Ghz

2 x Cortex-R5-500Mhz

Speed Grade

Chip Level

Industrial Grade (-40°C~+85°C)

Logic Cells

103K

Flip-Flops

94000

Lookup Tables (LUTs)

47000

DSP Slices

View full details

Not sure which platform fits your project?

Frequently asked questions

What is Puzhi FPGA ZYNQ UltraScale+ ZU2CG Core Board PZ-ZU2CG-SOM 2 x Cortex-A53, DDR4 used for?
Puzhi FPGA ZYNQ UltraScale+ ZU2CG Core Board PZ-ZU2CG-SOM 2 x Cortex-A53, DDR4 is a Xilinx FPGA SoM from Puzhi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does Puzhi FPGA ZYNQ UltraScale+ ZU2CG Core Board PZ-ZU2CG-SOM 2 x Cortex-A53, DDR4 include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order Puzhi FPGA ZYNQ UltraScale+ ZU2CG Core Board PZ-ZU2CG-SOM 2 x Cortex-A53, DDR4 with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is Puzhi FPGA ZYNQ UltraScale+ ZU2CG Core Board PZ-ZU2CG-SOM 2 x Cortex-A53, DDR4 shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
