Puzhi FPGA PZ7020S-SOM Core Board XC7Z020 ZYNQ 7000 Xilinx 8GB eMMC 128Mb QSPI

Puzhi FPGA PZ7020S-SOM Core Board XC7Z020 ZYNQ 7000 Xilinx 8GB eMMC 128Mb QSPI

$159.99 USD
$159.99 USD
Sale Sold out
Shipping calculated at checkout.

Puzhi FPGA is an industrial-grade system-on-module (SoM) built around the XC7Z020 FPGA.

Typical use cases: industrial control, SDR and rapid prototyping. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

Brand Puzhi
Country of Origin China
Category breadcrumb Business & Industrial > Electrical Equipment & Supplies > Electronic Components & Semiconductors > Semiconductors & Actives > Development Kits & Boards

Product Details

eBay Puzhi FPGA ZYNQ7000 ZYNQ7020S Core Board XC7Z020-2CLG400I 5V/1A Speed Grade 2

Main Features

- ZYNQ core board,dual-core ARM Cortex-A9,main frequency 766Mhz

- 1GB DDR3,256Mb QSPIFLASH

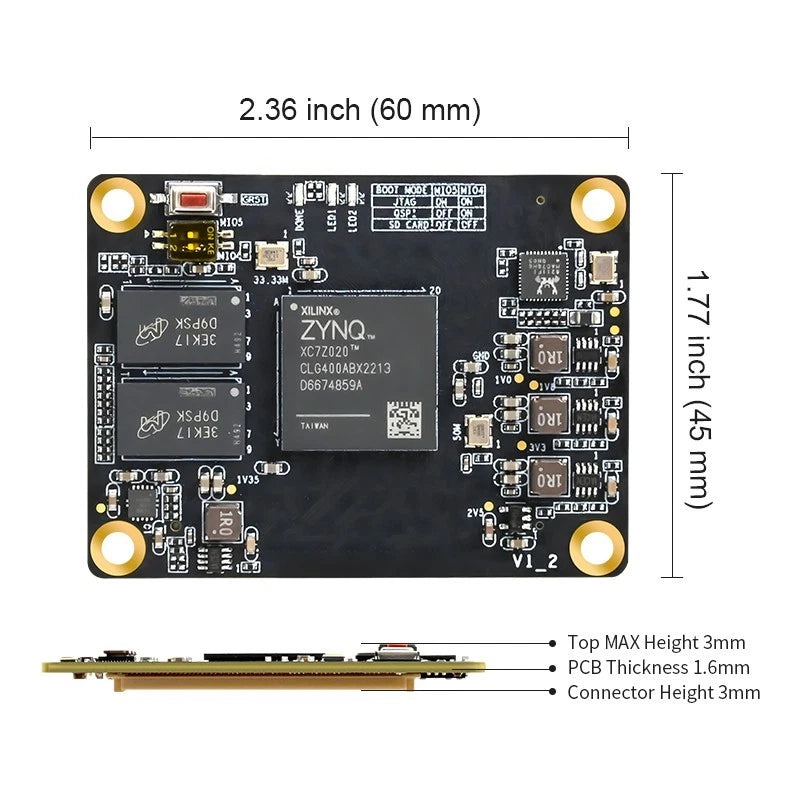

- Small size 60mm*45mm,up to 146 IO available

- Extreme material selection and process standards,industrial grade -40℃~+85℃

- Support PYNQ,provide hardware reference & rich routines,help product development

FPGA Core Board PZ7020S-SOM

FPGA Chip XC7Z020-2CLG400I

Processor Core Dual Core ARM Cortex-A9

Speed Grade 2

Chip Level Industrial Grade (-40°C~+85°C)

Logic Cells 85K

Lookup Tables 53200

Flip-Flops 106400

DSP Slices 220

BLOCK RAM 4.9Mb

DDR3/DD3L 1GB

QSPI FLASH 256Mb

PS Side MIO 30 PS ports (24 fixed 1.8V, 6 fixed 3.3V)

PL Side IO 116 Single-ended IOs(1.8/2.5/3.3V adjustable, default 3.3V)

Gigabit Ethernet 1

User LED 2

Voltage / Current 5V/1A

Crystal Oscillator Single-ended Crystal 33.3333MHz for PS

View full details

Not sure which platform fits your project?

Frequently asked questions

What is Puzhi FPGA PZ7020S-SOM Core Board XC7Z020 ZYNQ 7000 Xilinx 8GB eMMC 128Mb QSPI used for?
Puzhi FPGA PZ7020S-SOM Core Board XC7Z020 ZYNQ 7000 Xilinx 8GB eMMC 128Mb QSPI is a Xilinx FPGA SoM from Puzhi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does Puzhi FPGA PZ7020S-SOM Core Board XC7Z020 ZYNQ 7000 Xilinx 8GB eMMC 128Mb QSPI include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order Puzhi FPGA PZ7020S-SOM Core Board XC7Z020 ZYNQ 7000 Xilinx 8GB eMMC 128Mb QSPI with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is Puzhi FPGA PZ7020S-SOM Core Board XC7Z020 ZYNQ 7000 Xilinx 8GB eMMC 128Mb QSPI shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
