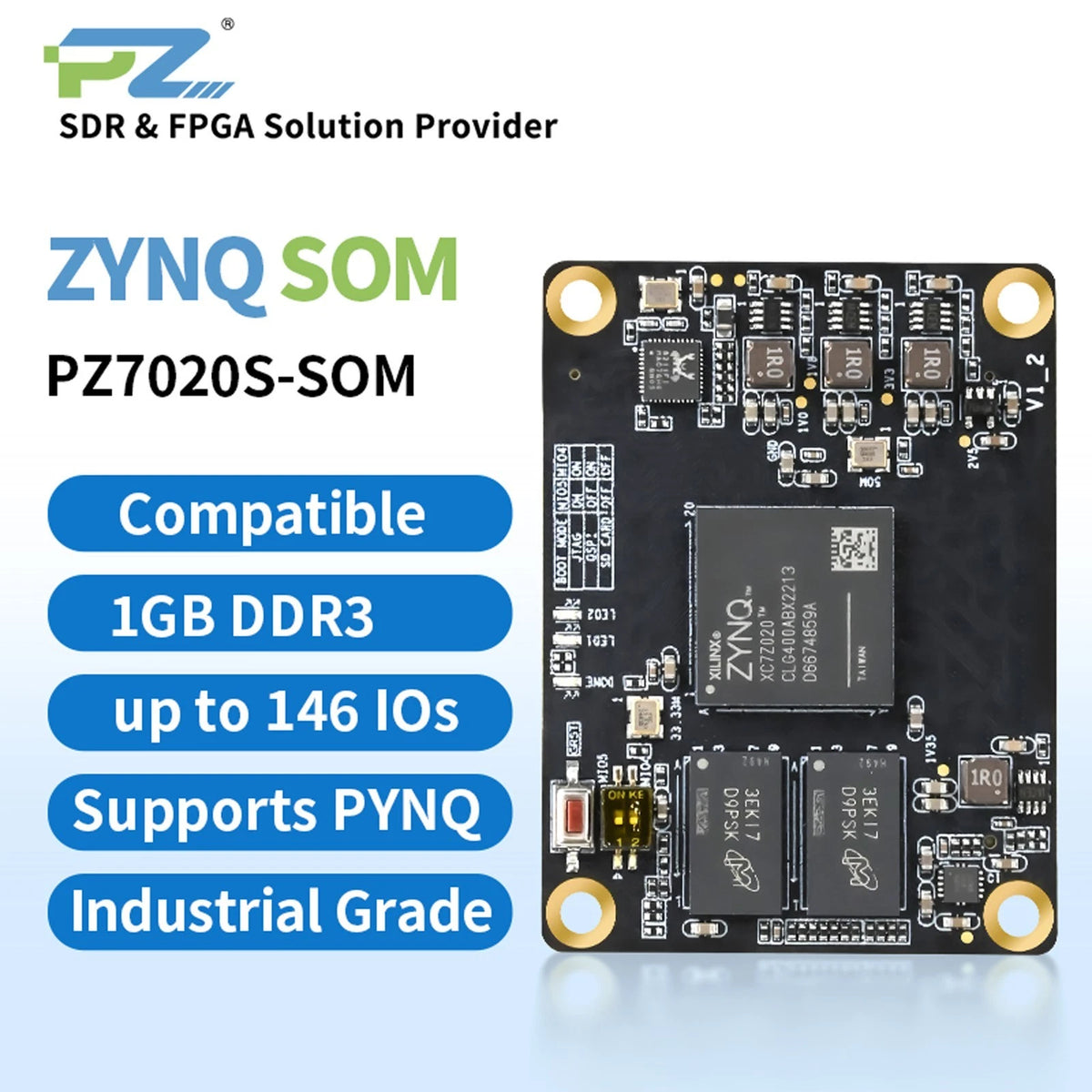

Puzhi FPGA PZ7020S-SOM Core Board XC7Z020 for ZYNQ-7000, Dual Core ARM Cortex-A9

Puzhi FPGA PZ7020S-SOM Core Board XC7Z020 for ZYNQ-7000, Dual Core ARM Cortex-A9

$169.99 USD
$169.99 USD
Sale Sold out
Shipping calculated at checkout.

Built for embedded deployment, the Puzhi FPGA system-on-module (SoM) pairs a XC7Z020-2CLG400I with a practical I/O set. On-chip resources: 85K logic cells, 220 DSP slices, 4.9Mb block RAM. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

QSPI FLASH 256Mb
Program Memory Type Flash
BLOCK RAM 4.9Mb
Voltage / Current 5V/1A
MPN PZ7020S-SOM
Item Length 2.4in
PS Side MIO 30 PS ports (24 fixed 1.8V, 6 fixed 3.3V)
Processor Core Dual Core ARM Cortex-A9
FPGA Chip XC7Z020-2CLG400I
Kit Name FPGA Development Board for Makers and Hobbyists
User LED 2
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
Item Width 2.4in
DDR3/DD3L 1GB
Core FPGA
PL Side IO 116 Single-ended IOs(1.8/2.5/3.3V adjustable, default 3.3V)
Chip Level Industrial Grade (-40°C~+85°C)
Logic Cells 85K
Flip-Flops 106400
Brand Puzhi
Series Xilinx FPGA SoM ZYNQ7000 SoC Core Board
Type FPGA Core Board
Speed Grade 2
DSP Slices 220
Lookup Tables 53200
Country of Origin China
Gigabit Ethernet 1

Product Details

eBay Puzhi FPGA ZYNQ7000 ZYNQ7020S Core Board XC7Z020-2CLG400I 5V/1A Speed Grade 2

Main Features

- ZYNQ core board,dual-core ARM Cortex-A9,main frequency 766Mhz

- 1GB DDR3,256Mb QSPIFLASH

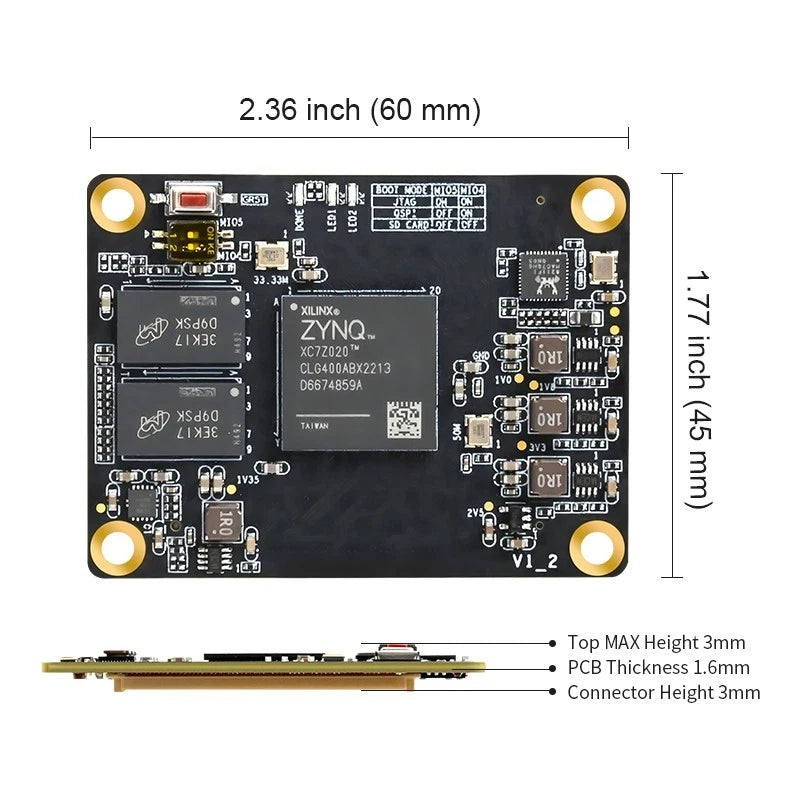

- Small size 60mm*45mm,up to 146 IO available

- Extreme material selection and process standards,industrial grade -40℃~+85℃

- Support PYNQ,provide hardware reference & rich routines,help product development

FPGA Core Board

PZ7020S-SOM

FPGA Chip

XC7Z020-2CLG400I

Processor Core

Dual Core ARM Cortex-A9

Speed Grade

Chip Level

Industrial Grade (-40°C~+85°C)

Logic Cells

85K

Lookup Tables

53200

Flip-Flops

106400

DSP Slices

220

BLOCK RAM
