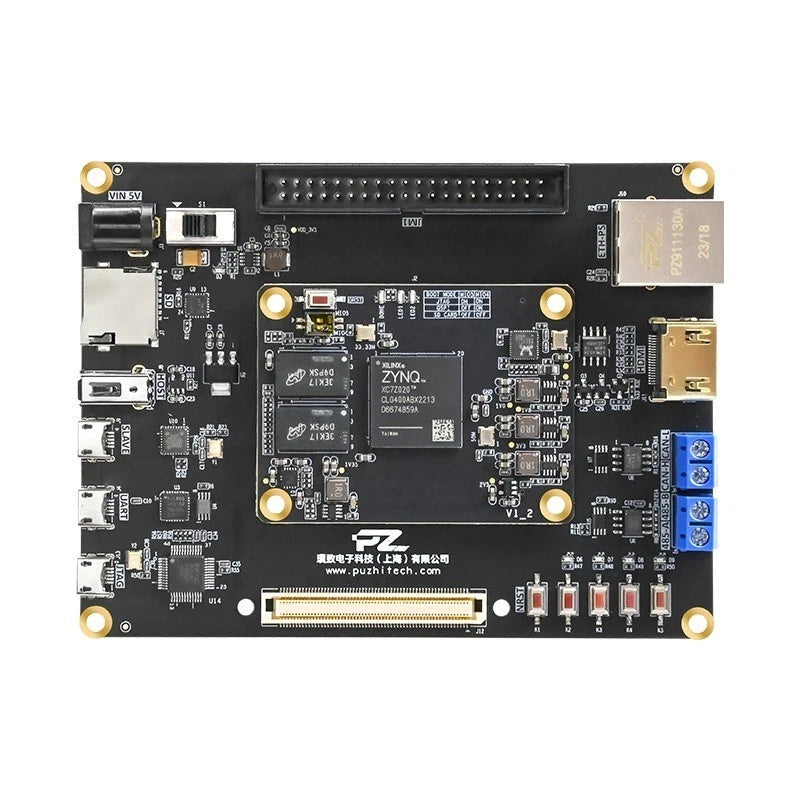

  • Puzhi PZ7020S — view 3

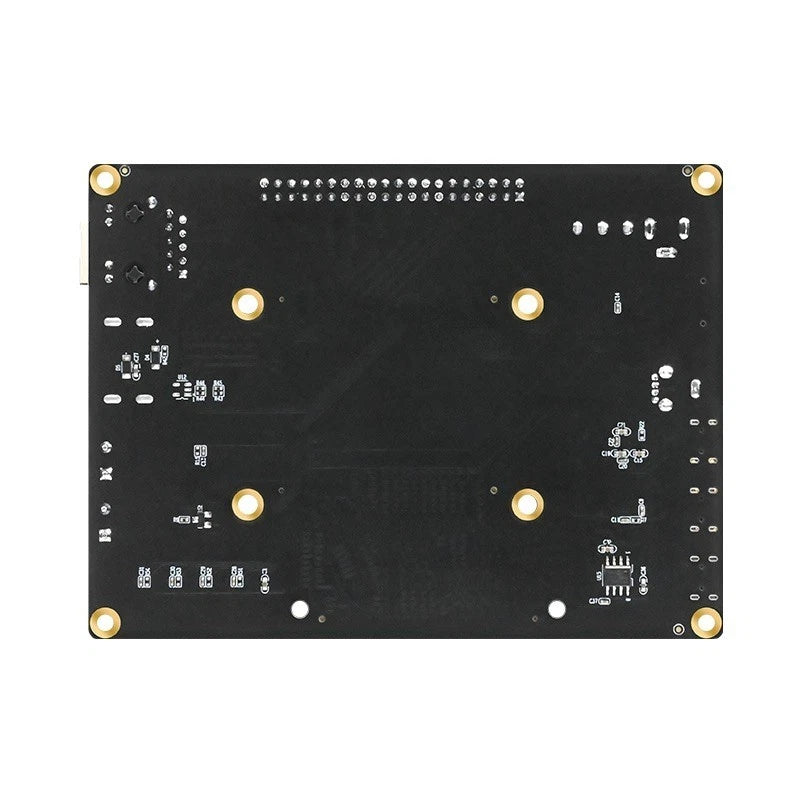

  • Puzhi PZ7020S — view 4

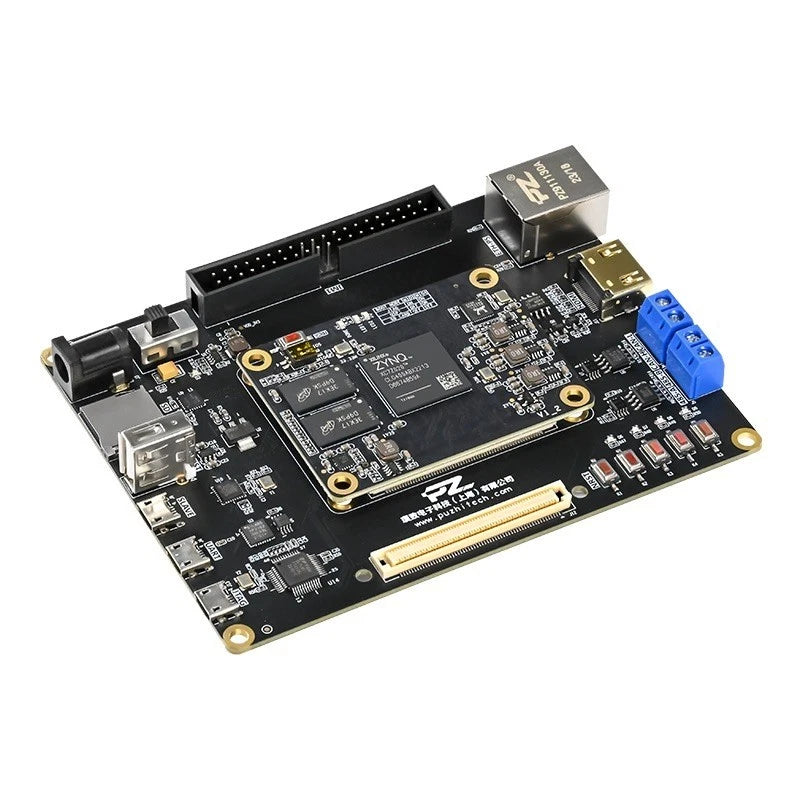

  • Puzhi PZ7020S — view 5

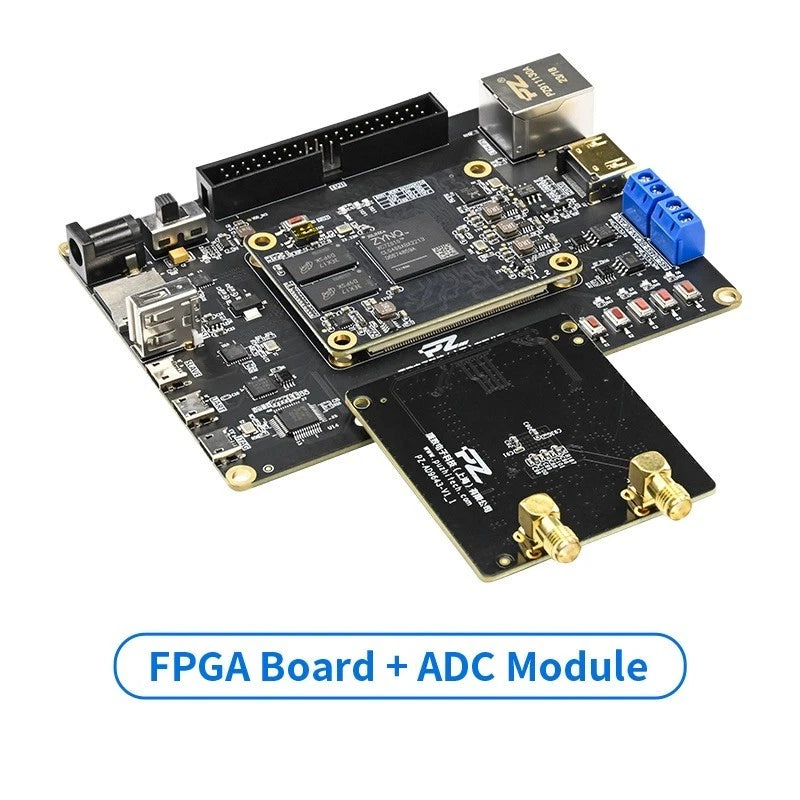

  • Puzhi PZ7020S — view 6

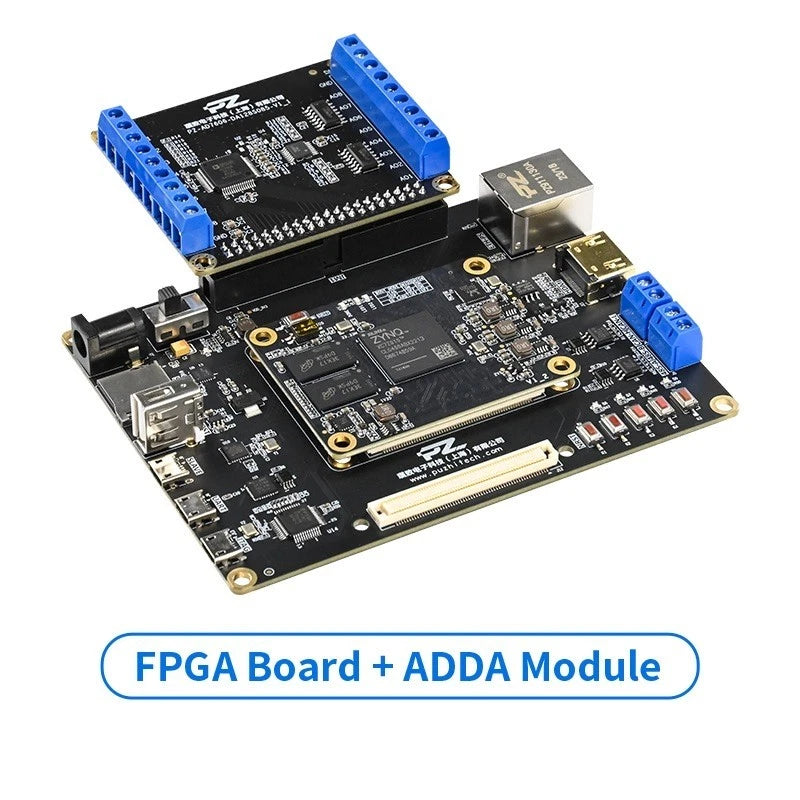

  • Puzhi PZ7020S — view 7
1 7

Puzhi

Puzhi FPGA PZ7020S Development Board XC7Z020 for ZYNQ-7000, DDR3 1G/32bit

Puzhi FPGA PZ7020S Development Board XC7Z020 for ZYNQ-7000, DDR3 1G/32bit

$289.99 USD
$289.99 USD
Sale Sold out
Shipping calculated at checkout.

The Puzhi FPGA is a development board based on the XC7Z020-2CLG400I (ZYNQ 7000 SoC). Key resources include 85K logic cells, 220 DSP slices, 4.9Mb block RAM. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

BLOCK RAM 4.9Mb
Brand Puzhi
Chip Level Industrial Grade (-40°C~+85°C)
Core FPGA
Core Board Form Factors 2.36 inch x 1.77 inch (60mm x 45mm)
DDR3/DD3L 1GB
DSP Slices 220
FPGA Chip XC7Z020-2CLG400I
Features Ethernet, Flash Memory, Flexible Connectivity, I/O Header, JTAG Support, LED
Flip-Flops 106400
Item Length 4.72in
Item Width 3.54in
Kit Name FPGA Development Board for Makers and Hobbyists
Logic Cells 85K
Lookup Tables 53200
MPN PZ7020S-KFB
PL Side IO 116 Single-ended IOs(1.8/2.5/3.3V adjustable, default 3.3V)
PS Side MIO 30 PS ports (24 fixed 1.8V, 6 fixed 3.3V)
Processor Core Dual Core ARM Cortex-A9
Program Memory Type Flash
QSPI FLASH 256Mb
Series Xilinx FPGA Development Board ZYNQ 7000 SoC
Speed Grade 2
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
Type FPGA Development Board
User LED 2

Product Details

eBay Main Features

- ARM+FPGA architecture, dual-core ARM Cortex-A9, main frequency 766 MHz

- Core parameters: 1GB DDR3, 256MB QSPI FLASH

- Core board 120P connector connection, size 60 mm*45 mm

- Reserved ports: UART, RS485, CAN, Gigabit Ethernet, HDMI, etc.

- Support SDK development, support PYNQ, rich routines, and help product development

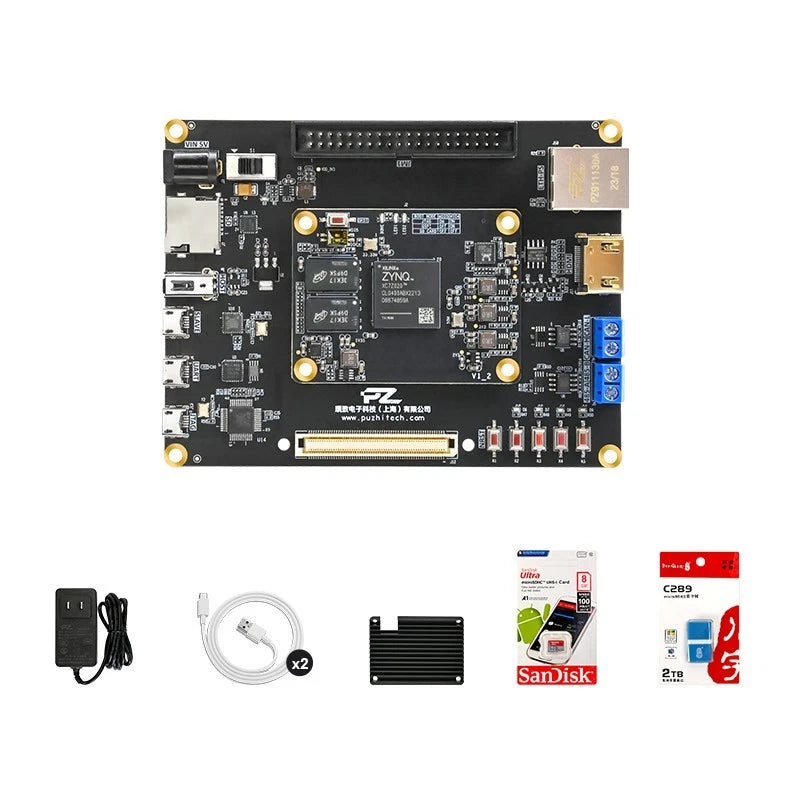

Standard Packing List

- 1x PZ7020S-KFB Board

- 1x 5V/1A Power Adapter

- 2x Micro USB Cables

- 1x Heat Sink

- 1x 8GB SD Card

FPGA Dev. Board

PZ7020S-KFB Core Board Main Parameters

FPGA Chip

XC7Z020-2CLG400I

Interfaces and Function

Processor Core

Dual Core ARM Cortex-A9

JTAG Interface

Speed Grade

UART/RS485/CAN

1/1/1

Chip Level

Industrial Grade (-40°C~+85°C)
