Puzhi FPGA is an industrial-grade development board built around the XC7Z020-2CLG400I FPGA. It provides 85K logic cells with 512MB DDR3/DDR memory.
Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.
Specifications
| 40Pin Expansion Port | 64 Single-ended/32 Differential Pairs |
| Board Form Factors | 3.54 inch x 2.36 inch (90 mm x 60mm) |
| Brand | Puzhi |
| Core | FPGA |
| DDR3 | 512MB |
| E2PROM | 64Kbit |
| FPGA Chip | XC7Z020-2CLG400I |
| Features | Ethernet, Flash Memory, Flexible Connectivity, I/O Header, JTAG Support, LED, USB |
| Gigabit Ethernet | 1 on PS Side, 1 on PL Side |
| HDMI | 1 HDMI Output |
| Item Length | 3.54in |
| Item Width | 2.36in |
| JTAG Interface | 1 |
| KEY | 2 KEYs |
| Kit Name | FPGA Development Board for Makers and Hobbyists |
| LED | 2 LEDs |
| Logic Cells | 85K |
| MIPI CSI | 1 (2lane) |
| MPN | PZ7020-StarLite |
| Main Frequency | 766MHz |
| Program Memory Type | Flash |
| QSPI FLASH | 128Mb |
| SD Card Slot Interface | 1 |
| Series | Xilinx FPGA Development Board ZYNQ7000 SoC |
| Supported Device | Image Processing, Power Monitoring, Medical Equipment, Machine Vi |
| Technology | Black Matte. Immersion Gold Process |
| Type | FPGA Development Board |
| UART | 1 |
| USB2.0 Host | 1 |
| Voltage / Current | 5V/1A |
Product Details
eBay Introduction
Puzhi Electronics Technology offers two compatible versions of the ZYNQ 7000 series development boards: the PZ7010-Starlite and the PZ7020-Starlite, powered respectively by Xilinx XC7Z010 and XC7Z020 main controllers. These boards integrate a rich set of peripherals and come with detailed development examples, helping users learn faster and accelerate project development. For added convenience, a built-in JTAG debugger enables both power supply and debugging through a single USB cable. The board measures 90x60mm and features a 3.5mm diameter mounting hole at each of the four corners, making it easy to install support pillars or secure the board.
Main Features
- ARM+FPGA architecture, dual-core ARM Cortex-A9, main frequency 766 MHz
- Core parameters: 512MB DDR3, 128Mb QSPI FLASH
- Integrated development board, small and delicate, easy to hide in the palm
- Reserved ports: JTAG, UART, dual Gigabit Ethernet, HDMI, MIPI CSI, etc.
- Support SDK development, support PYNQ, rich routines, help product development

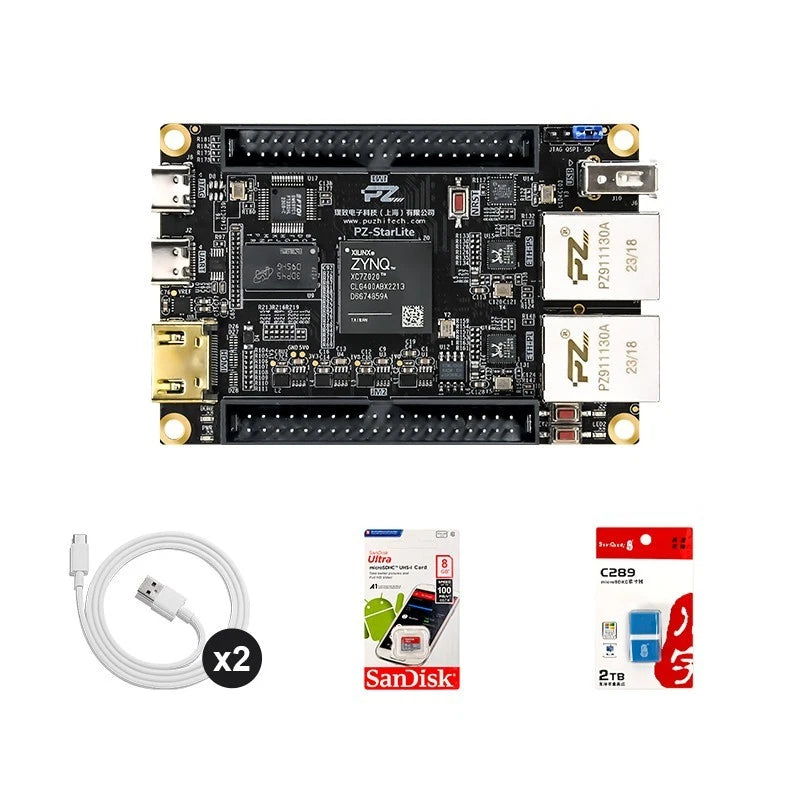

Standard Packing List
- 1x PZ7020 FPGA Board (or Package)
- 2x Type C Cables
- 1x 8GB SD Card
- 1x SD Card Reader
