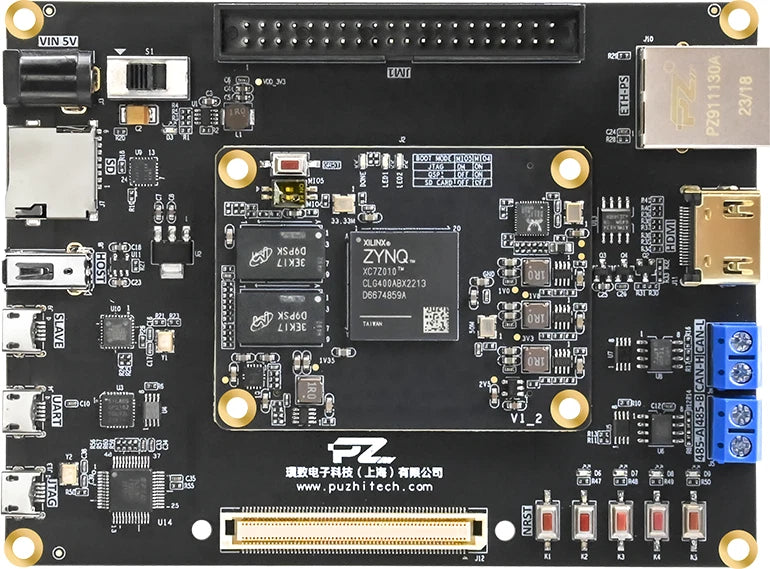

  • Puzhi PZ7010S — view 3

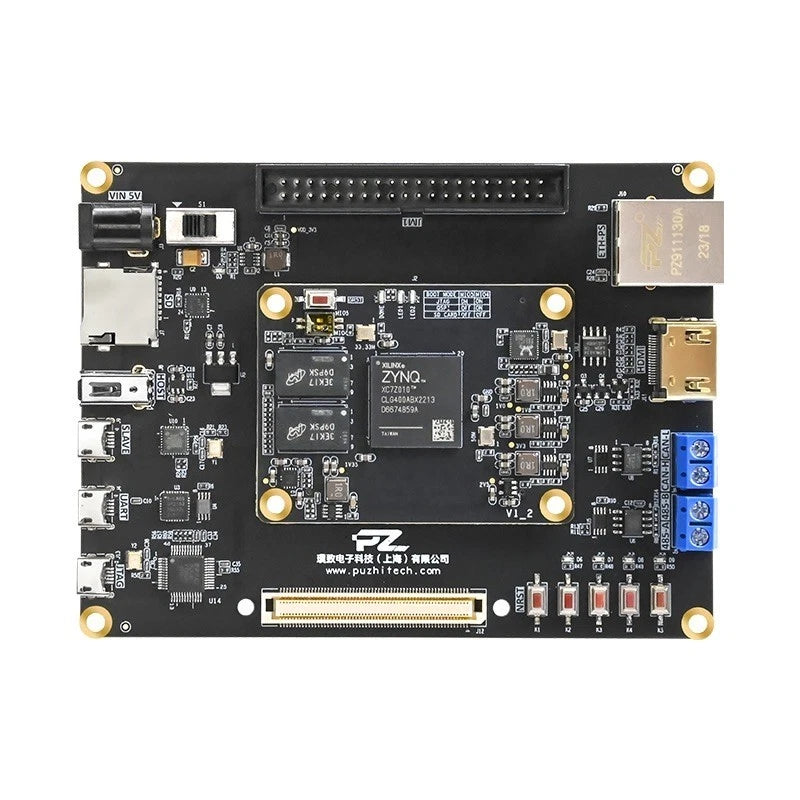

  • Puzhi PZ7010S — view 4

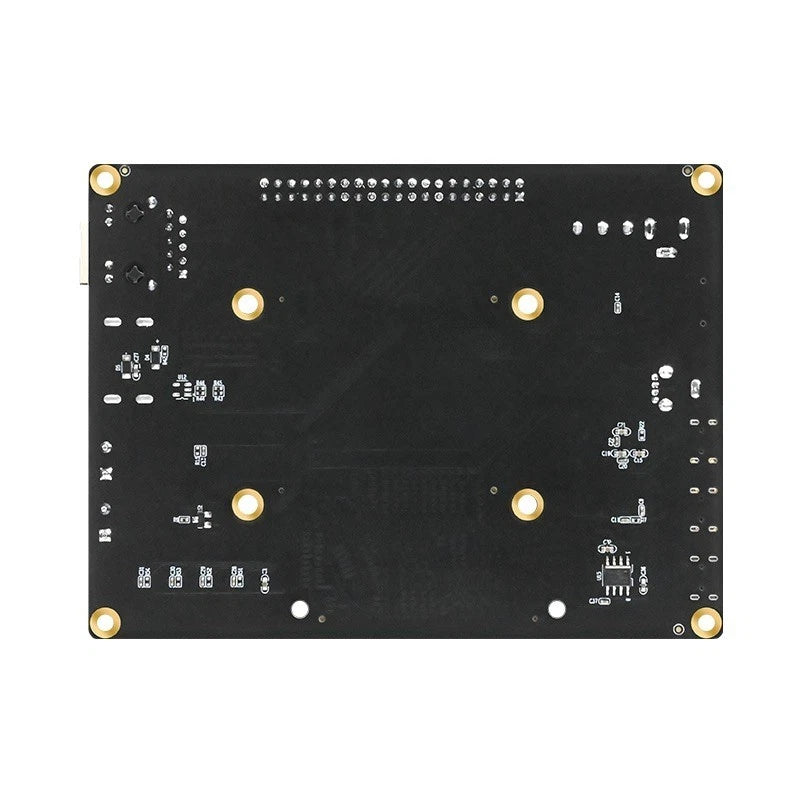

  • Puzhi PZ7010S — view 5

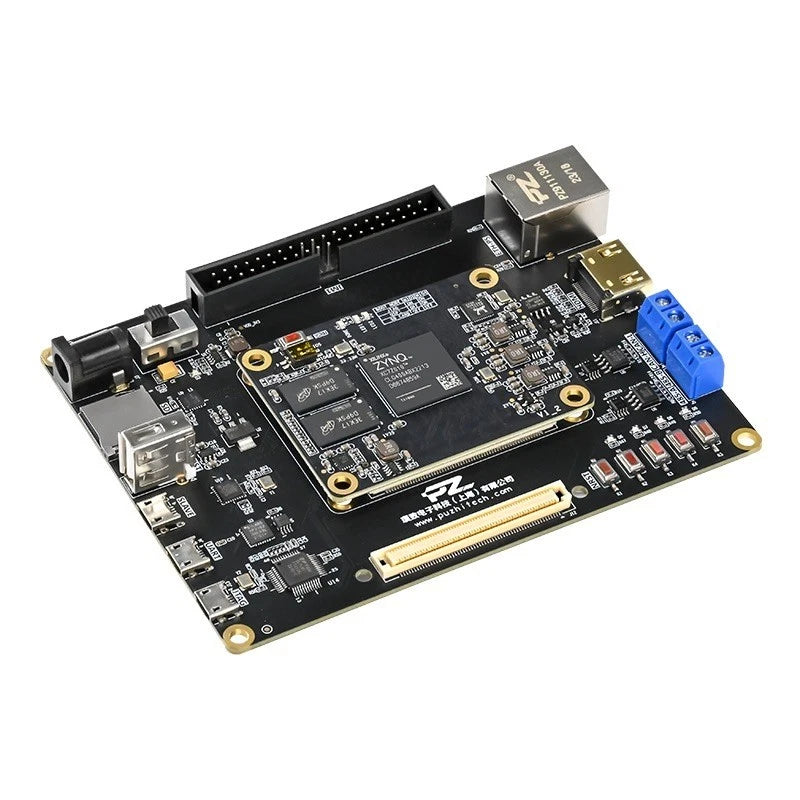

  • Puzhi PZ7010S — view 6

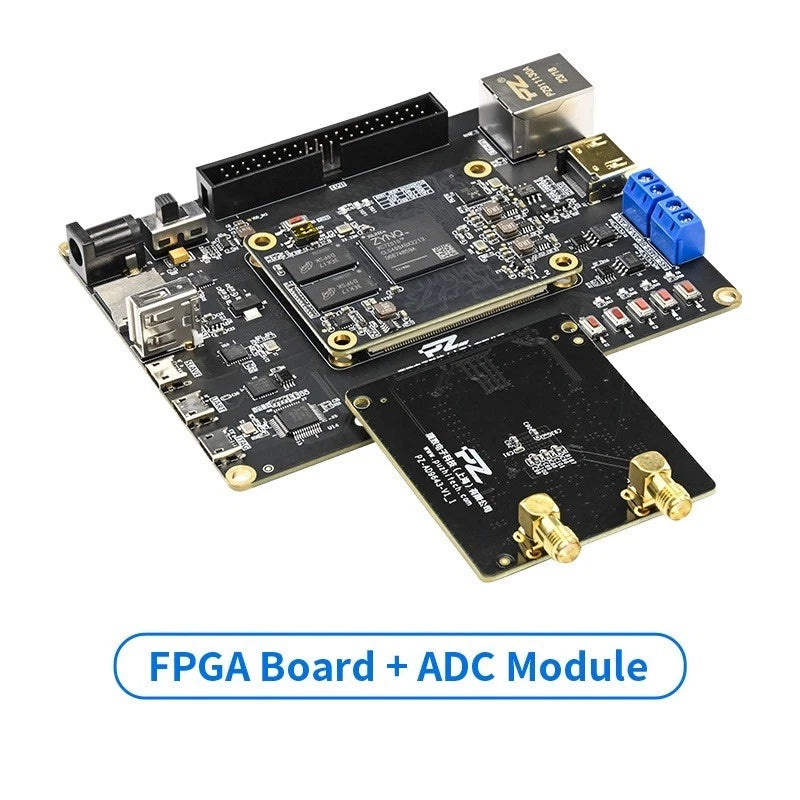

  • Puzhi PZ7010S — view 7
1 7

Puzhi

Puzhi FPGA PZ7010S Development Board XC7Z010 for ZYNQ-7000, DDR3 512MB/16bit

Puzhi FPGA PZ7010S Development Board XC7Z010 for ZYNQ-7000, DDR3 512MB/16bit

$279.99 USD
$279.99 USD
Sale Sold out
Shipping calculated at checkout.

Puzhi FPGA is an industrial-grade development board built around the XC7Z010-2CLG400I FPGA. It provides 28K logic cells, 80 DSP slices, 2.1Mb block RAM. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

BLOCK RAM 2.1Mb
Brand Puzhi
Chip Level Industrial Grade (-40°C~+85°C)
Core FPGA
Core Board Form Factors 2.36 inch x 1.77 inch (60mm x 45mm)
DDR3/DD3L 512MB
DSP Slices 80
FPGA Chip XC7Z010-2CLG400I
Features Ethernet, Flash Memory, Flexible Connectivity, I/O Header, JTAG Support, LED
Flip-Flops 35200
Item Length 4.72in
Item Width 3.54in
Kit Name FPGA Development Board for Makers and Hobbyists
Logic Cells 28K
Lookup Tables 17600
MPN PZ7010S-KFB
PL Side IO 92 Single-ended IOs(1.8/2.5/3.3V adjustable, default 3.3V)
PS Side MIO 30 PS ports (24 fixed 1.8V, 6 fixed 3.3V)
Processor Core Dual Core ARM Cortex-A9
Program Memory Type Flash
QSPI FLASH 256Mb
Series Xilinx FPGA Development Board ZYNQ7000 SoC
Speed Grade 2
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
Type FPGA Development Board
User LED 2

Product Details

eBay Main Features

- ARM+FPGA architecture, dual-core ARM Cortex-A9, main frequency 667 MHz

- Core parameters: 512MB DDR3, 256MB QSPI FLASH

- Core board 120P connector connection, size 60 mm*45 mm

- Reserved ports: UART, RS485, CAN, Gigabit Ethernet, HDMI, etc.

- Support SDK development, support PYNQ, rich routines, help product development

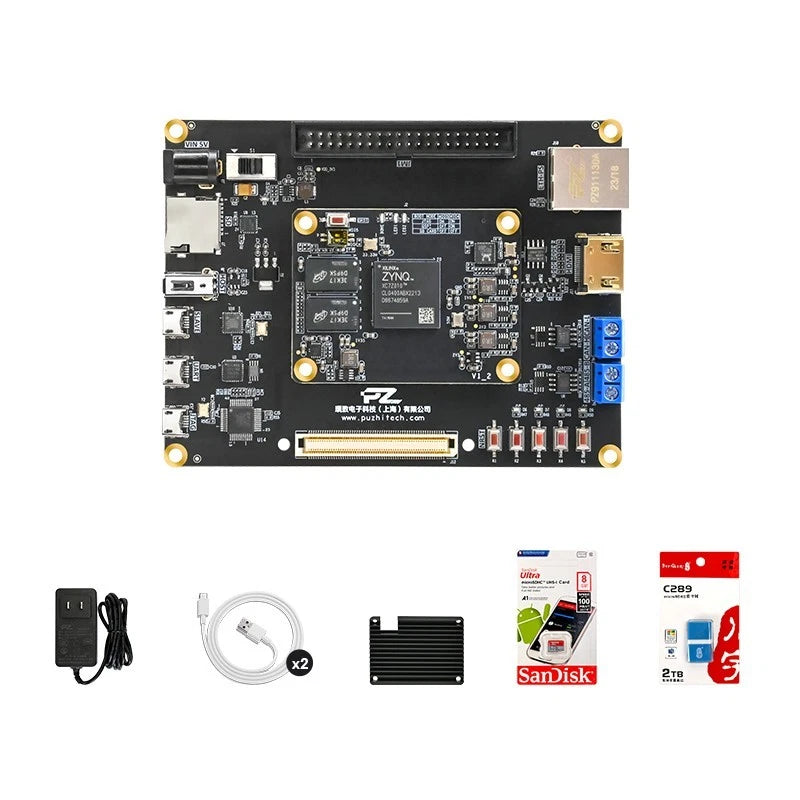

Standard Packing List

- 1x PZ7010S-KFB Board

- 1x 5V/1A Power Adapter

- 2x Micro USB Cables

- 1x Heat Sink

- 1x 8GB SD Card

FPGA Dev. Board

PZ7010S-KFB Core Board Main Parameters

FPGA Chip

XC7Z010-2CLG400I

Interfaces and Function

Processor Core

Dual Core ARM Cortex-A9

JTAG Interface

Speed Grade

UART/RS485/CAN

1/1/1

Chip Level

Industrial Grade (-40°C~+85°C)

View full details

Not sure which platform fits your project?

Frequently asked questions

What is Puzhi FPGA PZ7010S Development Board XC7Z010 for ZYNQ-7000, DDR3 512MB/16bit used for?
Puzhi FPGA PZ7010S Development Board XC7Z010 for ZYNQ-7000, DDR3 512MB/16bit is a Xilinx FPGA Dev Board from Puzhi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does Puzhi FPGA PZ7010S Development Board XC7Z010 for ZYNQ-7000, DDR3 512MB/16bit include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order Puzhi FPGA PZ7010S Development Board XC7Z010 for ZYNQ-7000, DDR3 512MB/16bit with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is Puzhi FPGA PZ7010S Development Board XC7Z010 for ZYNQ-7000, DDR3 512MB/16bit shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
