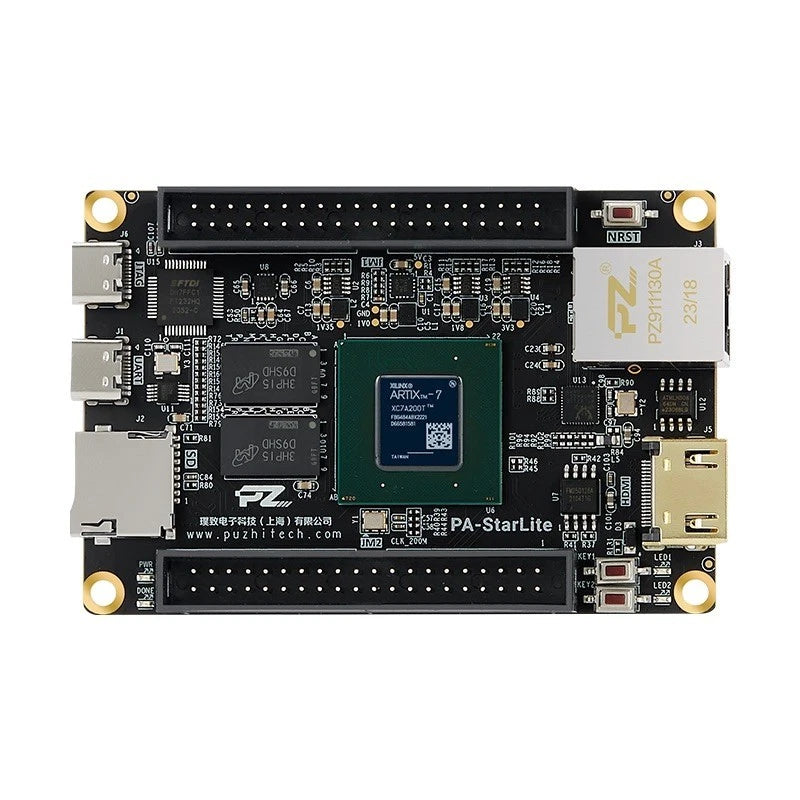

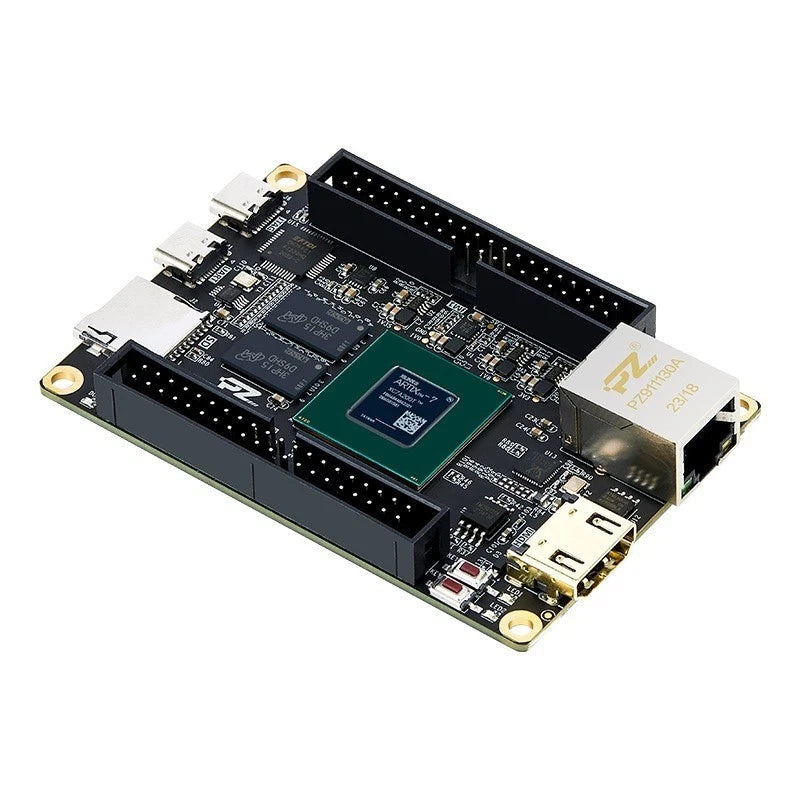

The Puzhi FPGA is a development board based on the XC7A200T-2FBG484I (Artix-7). Key resources include 215K logic cells, 740 DSP slices, 13140 block RAM with 1GB DDR3/DDR memory.
Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.
Specifications
| BLOCK RAM | 13140 |
| Brand | Puzhi |
| Core | FPGA |
| Core Board Form Factors | 3.54 inch x 2.36 inch (90 mm x 60mm) |
| Crystal Oscillator | 200MHz Differential Crystal for FPGA |
| DDR3 | 1GB |
| DSP Slices | 740 |
| E2PROM | 64Kbit |
| Expansion Port | Reserve one 40-pin 0.1 inch Expansion Port for Puzhi Modules |
| FPGA Chip | XC7A200T-2FBG484I |
| Features | Ethernet, Flexible Connectivity, I/O Header, JTAG Support, LED |
| Gigabit Ethernet | 1 |
| HDMI | 1 HDMI Output |
| Item Length | 3.54in |
| Item Width | 2.36in |
| JTAG Downloader | 1 |
| Kit Name | FPGA Development Board for Makers and Hobbyists |
| LED,KEY | 2 LEDs, 2 KEYs |
| Logic Cells | 215K |
| MIPI CSI | 1 (2lane) |
| MPN | PA200T-StarLite |
| Program Memory Type | Flash |
| QSPI FLASH | 256Mb |
| SD Card Slot | 1 |
| Series | Xilinx FPGA Development Board Artix-7 |
| Slices | 33650 |
| Supported Device | Image Processing, Power Monitoring, Medical Equipment, Machine Vi |
| Technology | Black Matte. Immersion Gold Process |
| Two 40Pin | 72 Single-ended/36 Differential Pairs |
| Type | FPGA Development Board |
| UART | 1 |
| Voltage / Current | 5V/1A |
Product Details
eBay Introduction
Puzhi Electronics Technology's Artix-7 series development boards are available in four versions, powered by Xilinx XC7A35T-2FGG484I, XC7A75T-2FGG484I, XC7A100T-2FGG484I, and XC7A200T-2FBG484I main controllers, respectively. Corresponding to the different controller chips, the boards are named PA35T-Starlite, PA75T-Starlite, PA100T-Starlite, and PA200T-Starlite. The PA35T-Starlite does not include a MIPI interface, while the other three models are fully pin-compatible.

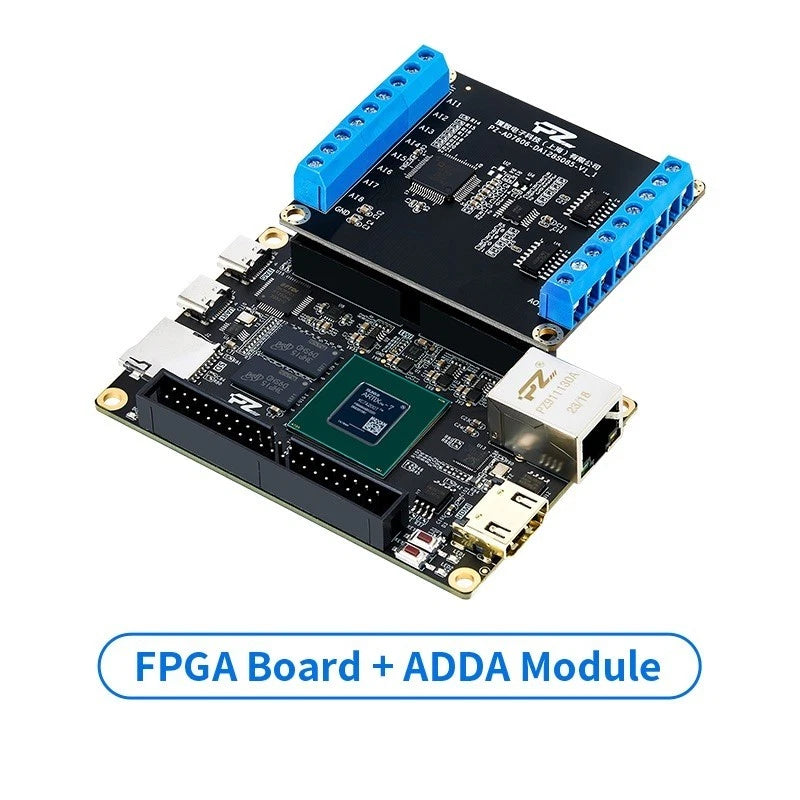

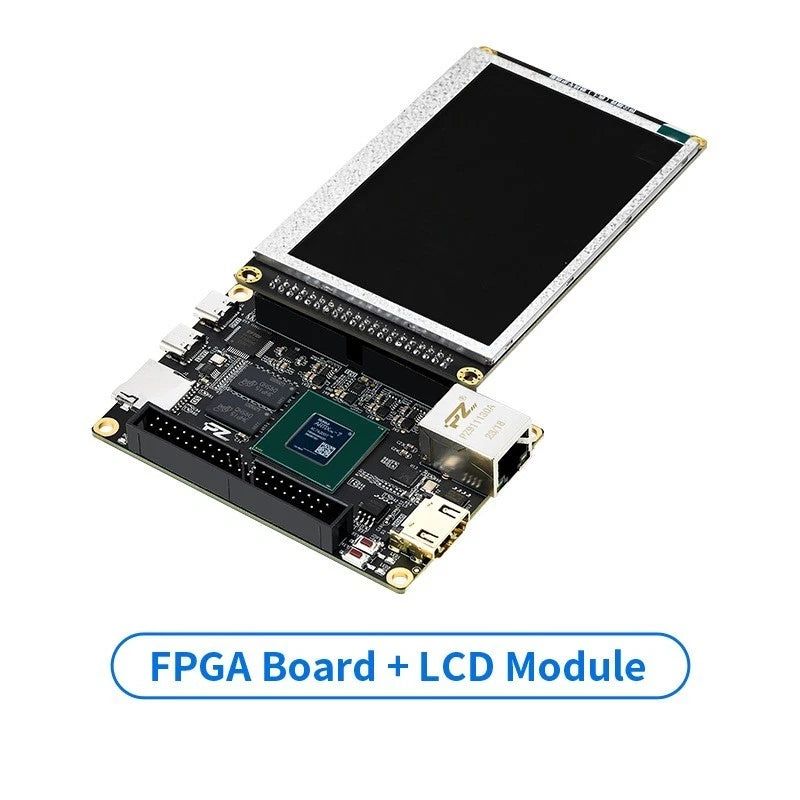

Each board in the PA-Starlite series is offered in two configurations: with and without a 40-pin connector, giving users the flexibility to use it either as a standalone development board or as a core board for integrated projects. The boards also integrate a rich set of peripherals and come with detailed development examples to speed up the learning process. Additionally, a built-in JTAG debugger allows both power supply and debugging through a single USB cable, making the boards more convenient to use.
Main Features
- Artix-7 FPGA architecture/logical unit 215360/slices 33650
- 1GB DDR3, 256MB QSPI FLASH, power supply/current 5V/1A
- Integrated development board, small and delicate, easy to hide in the palm
- Reserved ports: UART, HDMI, JTAG, Gigabit Ethernet, etc.
- Provide perfect hardware reference & software-rich routines to help product development

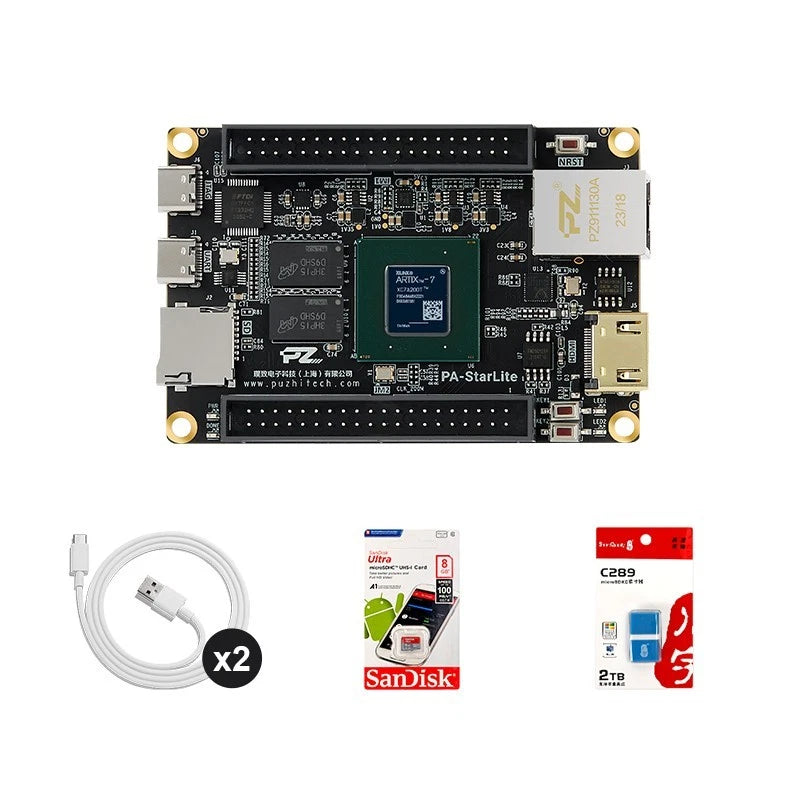

Standard Packing List
- 1x PA200T-StarLite Board
- 2x Type C Cables
- 1x 8GB SD Card
- 1x SD Card Reader
