Puzhi FPGA PA100T-FL Development Board XC7A100T for Xilinx Artix-7, DDR3 1G

Puzhi FPGA PA100T-FL Development Board XC7A100T for Xilinx Artix-7, DDR3 1G

$449.99 USD
$449.99 USD
Sale Sold out
Shipping calculated at checkout.

Puzhi FPGA is an industrial-grade development board built around the XC7A100T-2FGG484I FPGA. It provides 101K logic cells, 240 DSP slices, 4860 block RAM with 1GB DDR3/DDR memory. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

BLOCK RAM 4860
Brand Puzhi
Chip Level Industrial Grade (-40°C~+85°C)
Core FPGA
Core Board Form Factors 2.36 inch x 1.77 inch (60mm x 45mm)
DDR3 1GB
DSP Slices 240
FPGA Chip XC7A100T-2FGG484I
Features Ethernet, Flash Memory, Flexible Connectivity, I/O Header, JTAG Support, LED
INumber of IO 172 IOs
Item Length 5.12in
Item Width 3.54in
Kit Name FPGA Development Board for Makers and Hobbyists
Logic Cells 101K
MPN PZ-A7100T-FL-KFB
Number of GTP 4 Pairs of TX/RX
Program Memory Type Flash
QSPI FLASH 256Mb
Reset KEY 1
Series Xilinx FPGA Development Board Artix-7
Slices 15850
Speed Grade 2
Start-up Mode JTAG/QSPI, The Default Boot Mode is QSPI
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
Type FPGA Development Board
User LED 2

Product Details

eBay Introduction

Puzhi Electronics offers three versions of its Artix-7 series development boards, all of which are fully pin-compatible. The boards are built around Xilinx’s XC7A75T-2FGG484I, XC7A100T-2FGG484I, and XC7A200T-2FBG484I main controllers and are accordingly named the PA75T-FL, PA100T-FL, and PA200T-FL.

Equipped with an FMC LPC expansion port, the PA-FL series significantly broadens the application potential of the Artix-7 platform. A wide range of Puzhi’s FMC mezzanine boards can be easily stacked onto this board for expanded functionality.

In addition, these development boards come with rich onboard peripherals and comprehensive development examples to accelerate the learning curve. An integrated JTAG debugger allows both power supply and debugging through a single USB cable, making the boards more convenient and user-friendly.

Main Features

- Artix-7 FPGA architecture/logical unit 101440/slices 15850

- 1GB DDR3, 256MB QSPI FLASH, power supply/current 12V/1A

- Core board 120P connector connection, size 60*45mm

- Reserved ports: Gigabit Ethernet, SATA, HDMI, FMC, MIPI, SFP, etc.

- Provide perfect hardware reference & software-rich routines to help product development

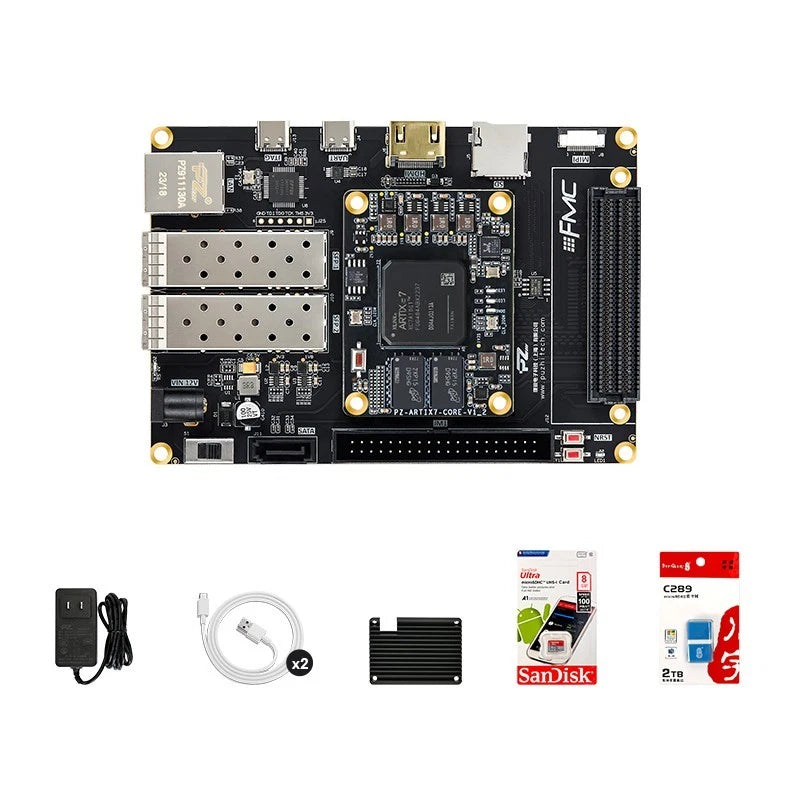

Standard Packing List

- 1x  12V/1A Power Adapter

- 2x  Type C Cables

- 1x  Heat Sink

- 1x  8GB SD Card

- 1x  SD Card Reader

FPGA Dev. Board

PZ-A7100T-FL-KFB

FPGA Chip

XC7A100T-2FGG484I

Interfaces and Function

Speed Grade

Chip Level

Industrial Grade (-40°C~+85°C)

JTAG Downloader
