Built for embedded deployment, the Puzhi FPGA development board pairs a XC7A100T-2FGG484I with 1GB DDR3/DDR memory and a practical I/O set. On-chip resources: 101K logic cells, 240 DSP slices, 4860 block RAM.
Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.
Specifications
| BLOCK RAM |
4860 |
| Brand |
Puzhi |
| Core |
FPGA |
| DDR3 |
1GB |
| DSP Slices |
240 |
| E2PROM |
64Kbit |
| FPGA Chip |
XC7A100T-2FGG484I |
| Features |
Ethernet, Flash Memory, Flexible Connectivity, I/O Header, JTAG Support |
| Gigabit Ethernet |
1 |
| HDMI |
1 HDMI Output |
| Item Length |
3.54in |
| Item Width |
2.36in |
| JTAG Downloader |
1 |
| Kit Name |
FPGA Development Board for Makers and Hobbyists |
| LED, KEY |
6 LEDs, 4 KEYs |
| Logic Cells |
101K |
| MPN |
PA100T-EDU |
| Program Memory Type |
Flash |
| QSPI FLASH |
256Mb |
| SD Card Slot |
1 |
| Series |
Xilinx FPGA Development Board Artix-7 |
| Slices |
15850 |
| Supported Device |
Image Processing, Power Monitoring, Medical Equipment, Machine Vi |
| Type |
FPGA Development Board |
| UART |
1 |
Product Details
eBay Introduction

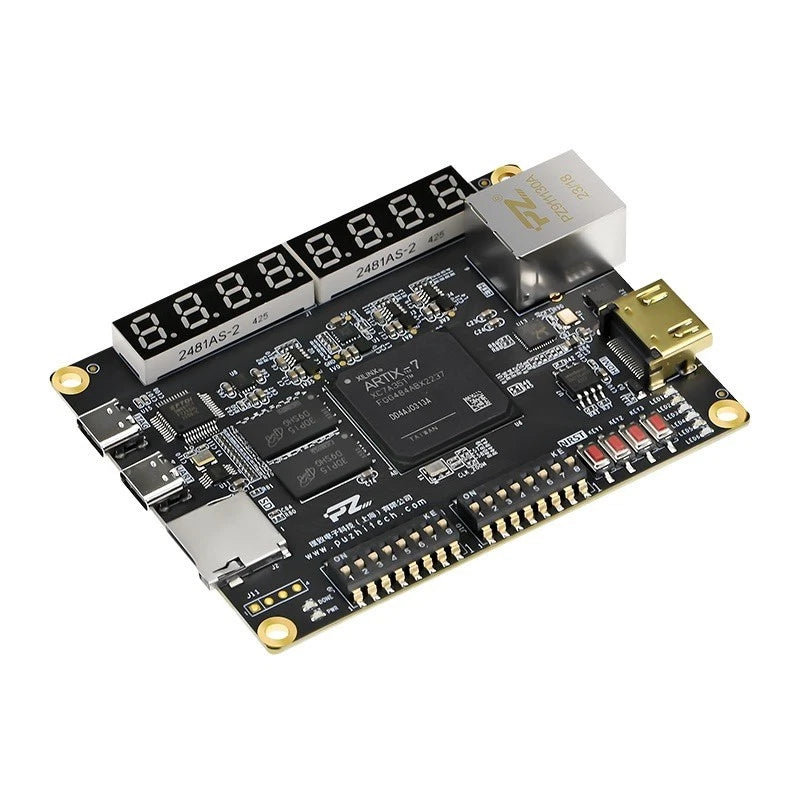

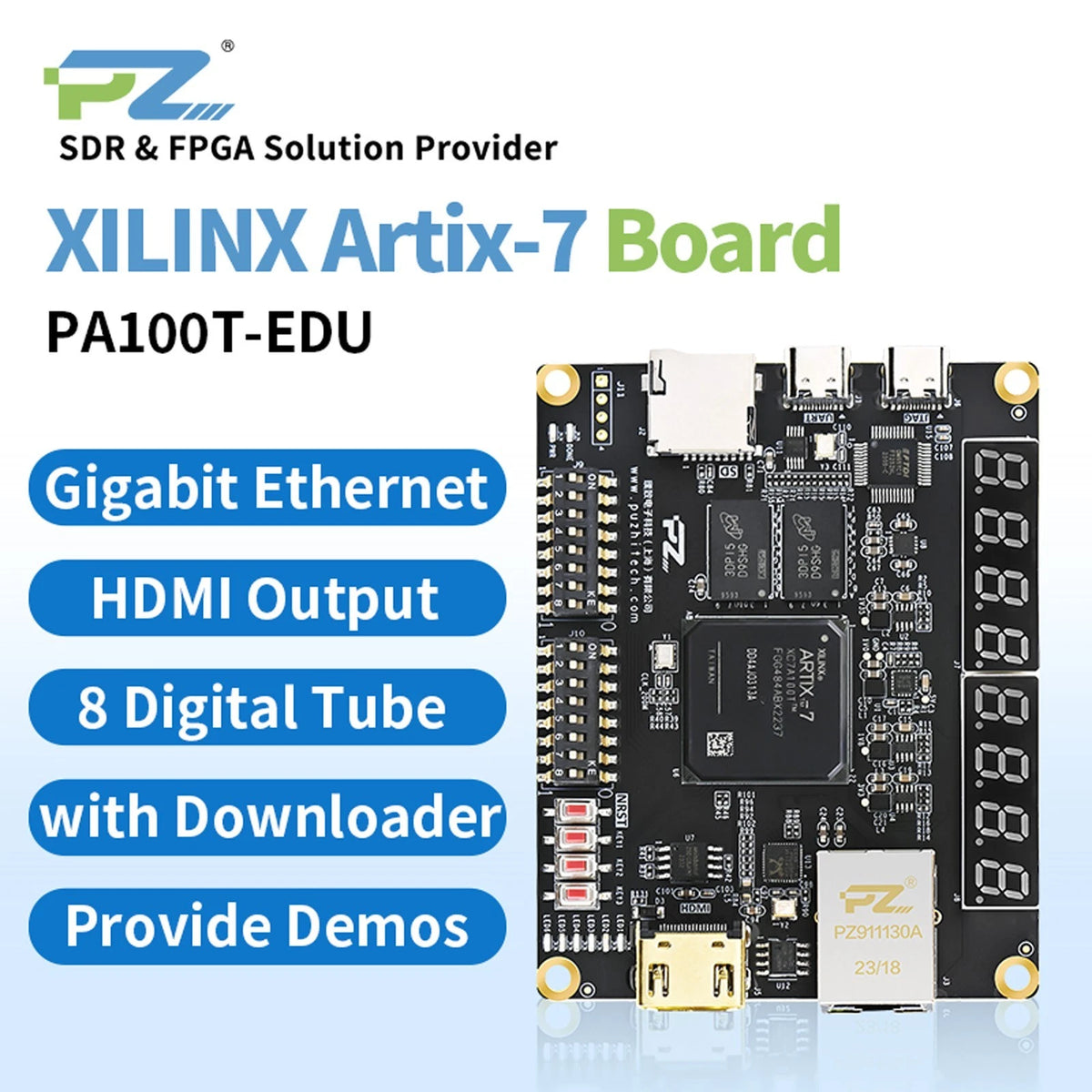

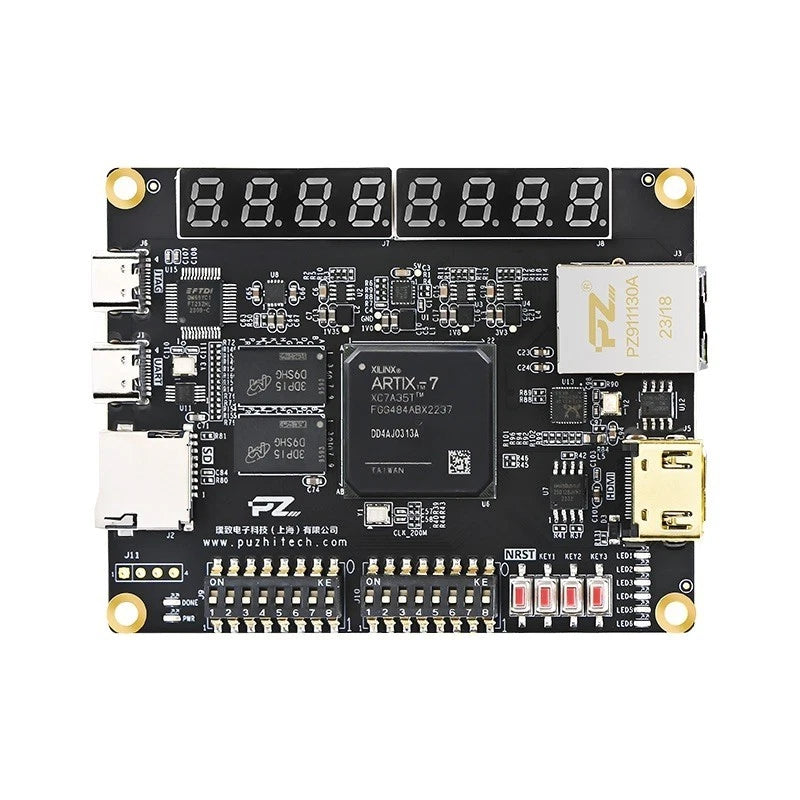

The Puzhi Electronic Technology Artix-7 series development board is available in two versions, powered by Xilinx’s XC7A35T-2FGG484I and XC7A100T-2FGG484I main controllers, respectively. Designated as PA35T-EDU and PA100T-EDU based on the specific controller, both versions are fully pin-compatible. Every board in the PA-EDU series is equipped with two four-digit seven-segment displays and two eight-position DIP switches, making them ideally suited for learning and teaching applications.
Main Features
- Artix-7 FPGA architecture/logical unit 101440/slices 15850
- 1GB DDR3, 256MB QSPI FLASH, power supply/current 5V/1A
- With 8-bit digital tube, EDU professional teaching
- Extreme material selection and process standards, reliable quality
- Provide perfect hardware reference & software-rich routines to help product development
Standard Packing List
- 1x PA7100T-EDU board
- 2x Type C Cables
- 1x 8GB SD Card
- 1x Card Reader
