Puzhi FPGA Kintex UltraScale+ KU5P Core Board PZ-KU5P-SOM, 2GB DDR4, 168 IO, GTY

Puzhi FPGA Kintex UltraScale+ KU5P Core Board PZ-KU5P-SOM, 2GB DDR4, 168 IO, GTY

$499.00 USD
$499.00 USD
Sale Sold out
Shipping calculated at checkout.

The Puzhi FPGA is a system-on-module (SoM) based on the XCKU5P-2FFVB676I (Artix UltraScale Plus Core Board). Key resources include 475K logic cells, 1824 DSP slices, 16.9Mb block RAM with 2GB/32bit Width DDR3/DDR memory. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

QSPI FLASH 256Mb, to Store Startup Files and User Files
Program Memory Type Flash
Lookup Tables (LUTs) 217000
BLOCK RAM 16.9Mb
MPN PZ-KU5P-SOM
Item Length 2.95in
FPGA Chip XCKU5P-2FFVB676I
Kit Name FPGA Development Board for Makers and Hobbyists

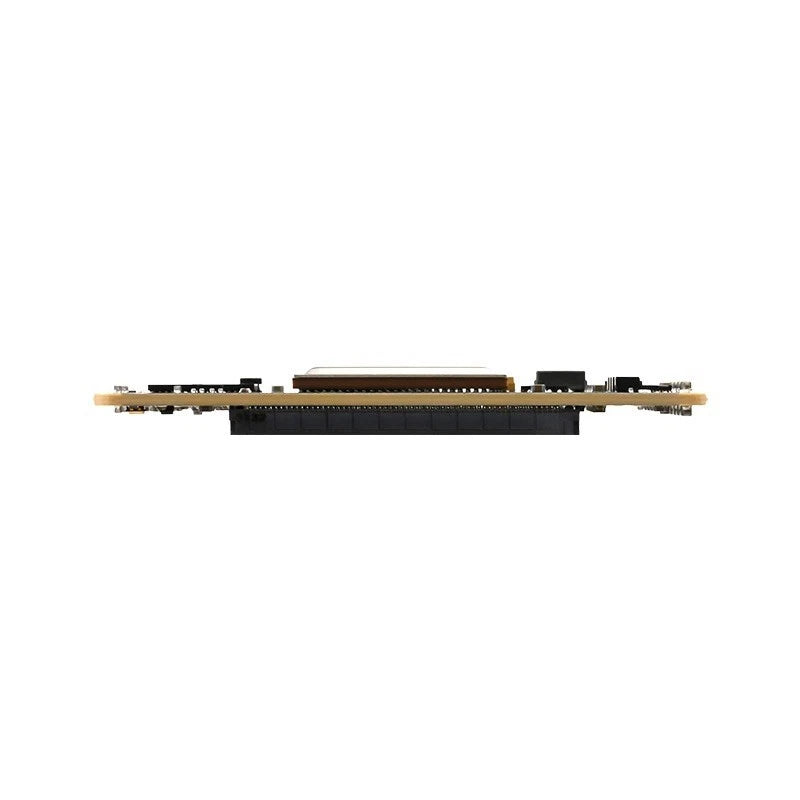

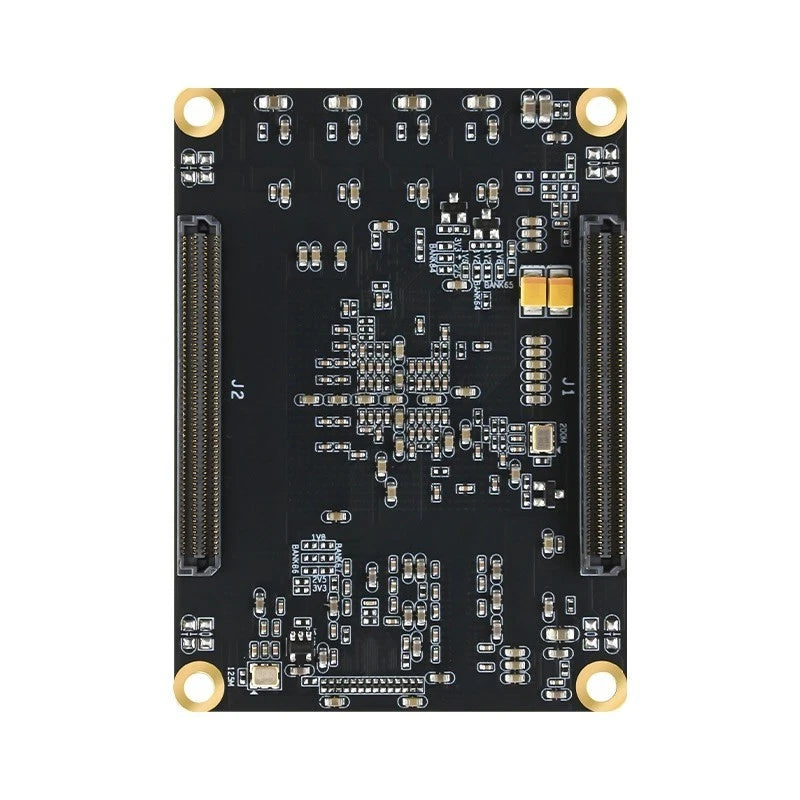

Technology 0.635mm Spacing, 240P Connectors x 2, Immersion Gold Process
User LED 3
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
Item Width 2.17in
Core FPGA
Chip Level Industrial Grade (-40°C~+85°C)
Logic Cells 475K
Flip-Flops 434000
Brand Puzhi
Series Xilinx FPGA SoM Artix UltraScale Plus Core Board
Start-up Mode JTAG/QSPI, The Default Boot Mode is QSPI
Type FPGA Core Board

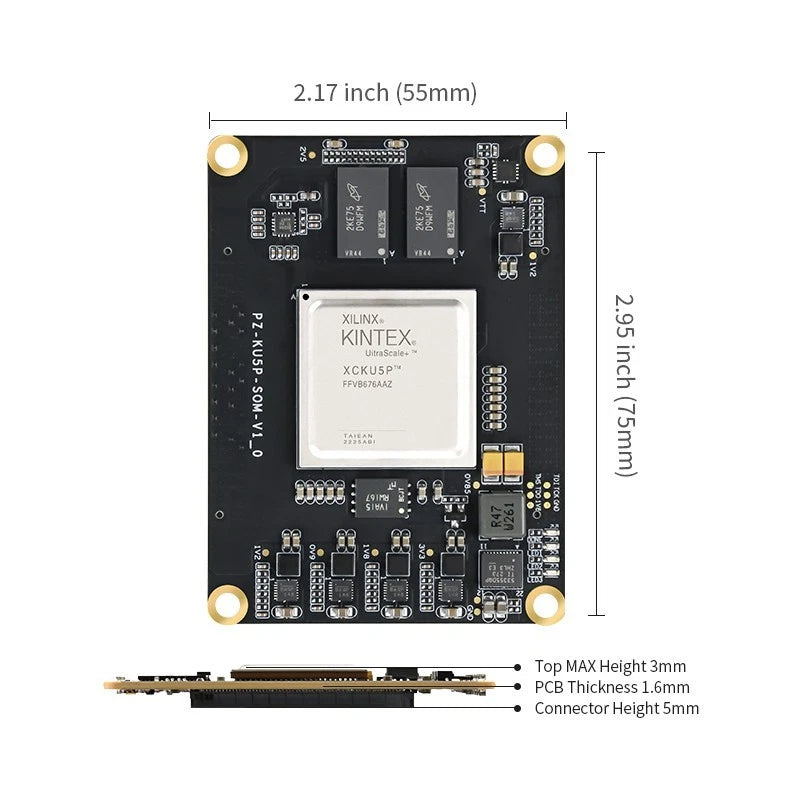

Form Factors 2.95 inch x 2.17 inch (75mmx 55mm)
Speed Grade 2
DSP Slices 1824
DDR4 2GB/32bit Width
Country of Origin China
Category Business & Industrial > Electrical Equipment & Supplies > Electronic Components & Semiconductors > Semiconductors & Actives > Development Kits & Boards

Product Details

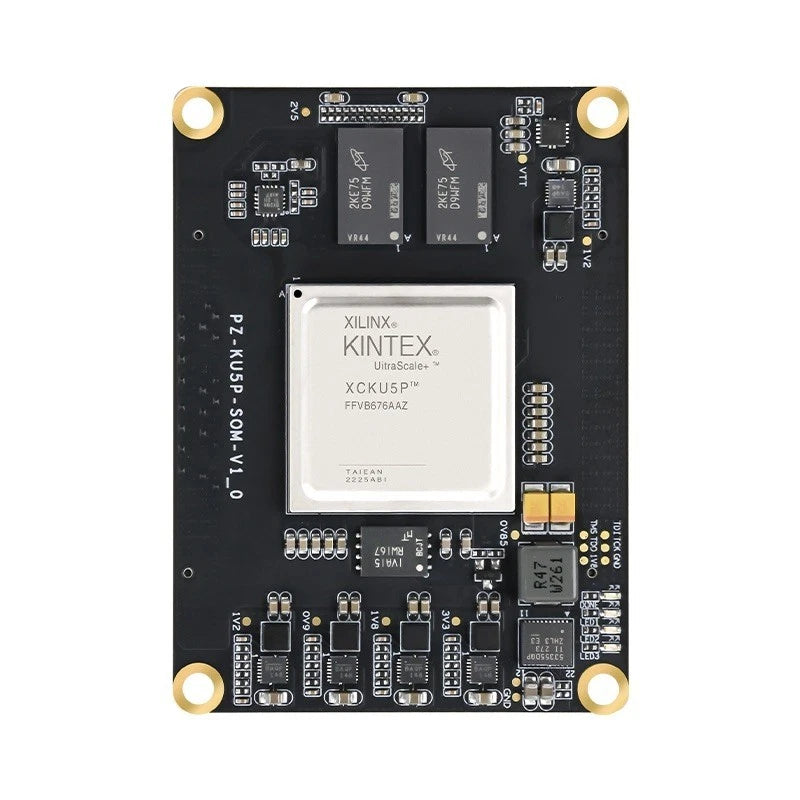

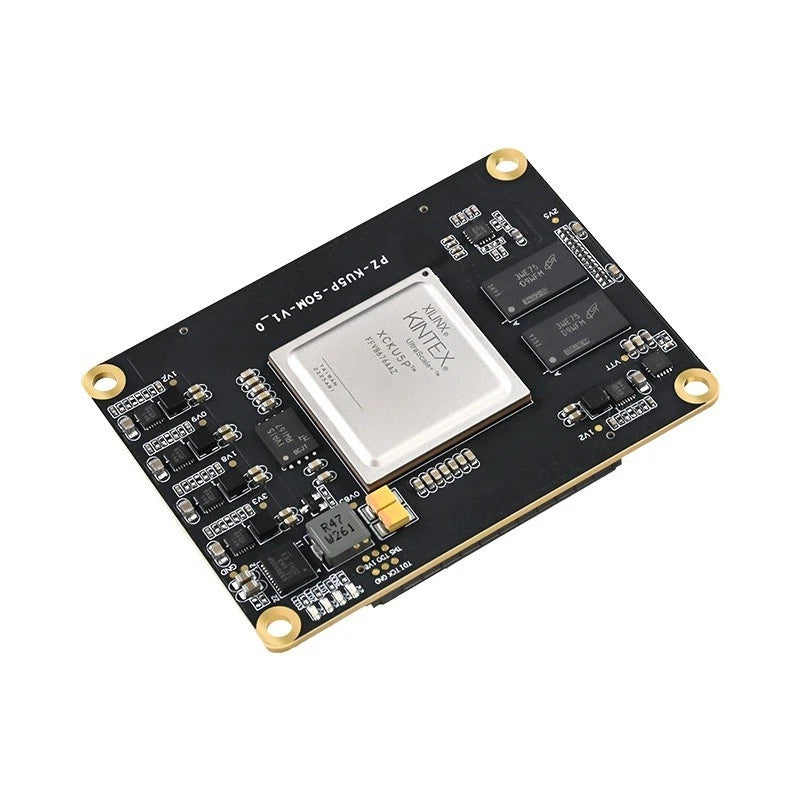

Puzhi FPGA Kintex UltraScale+ KU5P Core Board

PZ-KU5P-SOM

- Kintex UltraScale+ Core board / logical unit 475k / Slices 217k

- 2GB DDR4, 256Mb QSPIFLASH, Power supply/current 5V/3A

- Size 75*55mm, up to 168 IO available, 16 pairs of GTY

- Extreme material selection and process standards, industrial grade -40℃~+85℃

- Provide hardware reference & rich routines, help product development

FPGA SOM: PZ-KU5P-SOM

FPGA Chip: XCKU5P-2FFVB676I

Speed Grade: 2

Logic Cells: 475K

Lookup Tables (LUTs): 217000

Flip-Flops: 434000

DSP Slices: 1824

BLOCK RAM: 16.9Mb

DDR4: 2GB/32bit Width

QSPI FLASH: 256Mb

Start-up Mode: JTAG/QSPI

Number of GTY: 16 Pairs of TX/RX

Number of IO: 168 single-ended / 84 differential

Voltage/ Current: 5V/3A

View full details

Not sure which platform fits your project?

Frequently asked questions

What is Puzhi FPGA Kintex UltraScale+ KU5P Core Board PZ-KU5P-SOM, 2GB DDR4, 168 IO, GTY used for?
Puzhi FPGA Kintex UltraScale+ KU5P Core Board PZ-KU5P-SOM, 2GB DDR4, 168 IO, GTY is a Xilinx FPGA SoM from Puzhi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does Puzhi FPGA Kintex UltraScale+ KU5P Core Board PZ-KU5P-SOM, 2GB DDR4, 168 IO, GTY include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order Puzhi FPGA Kintex UltraScale+ KU5P Core Board PZ-KU5P-SOM, 2GB DDR4, 168 IO, GTY with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is Puzhi FPGA Kintex UltraScale+ KU5P Core Board PZ-KU5P-SOM, 2GB DDR4, 168 IO, GTY shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
