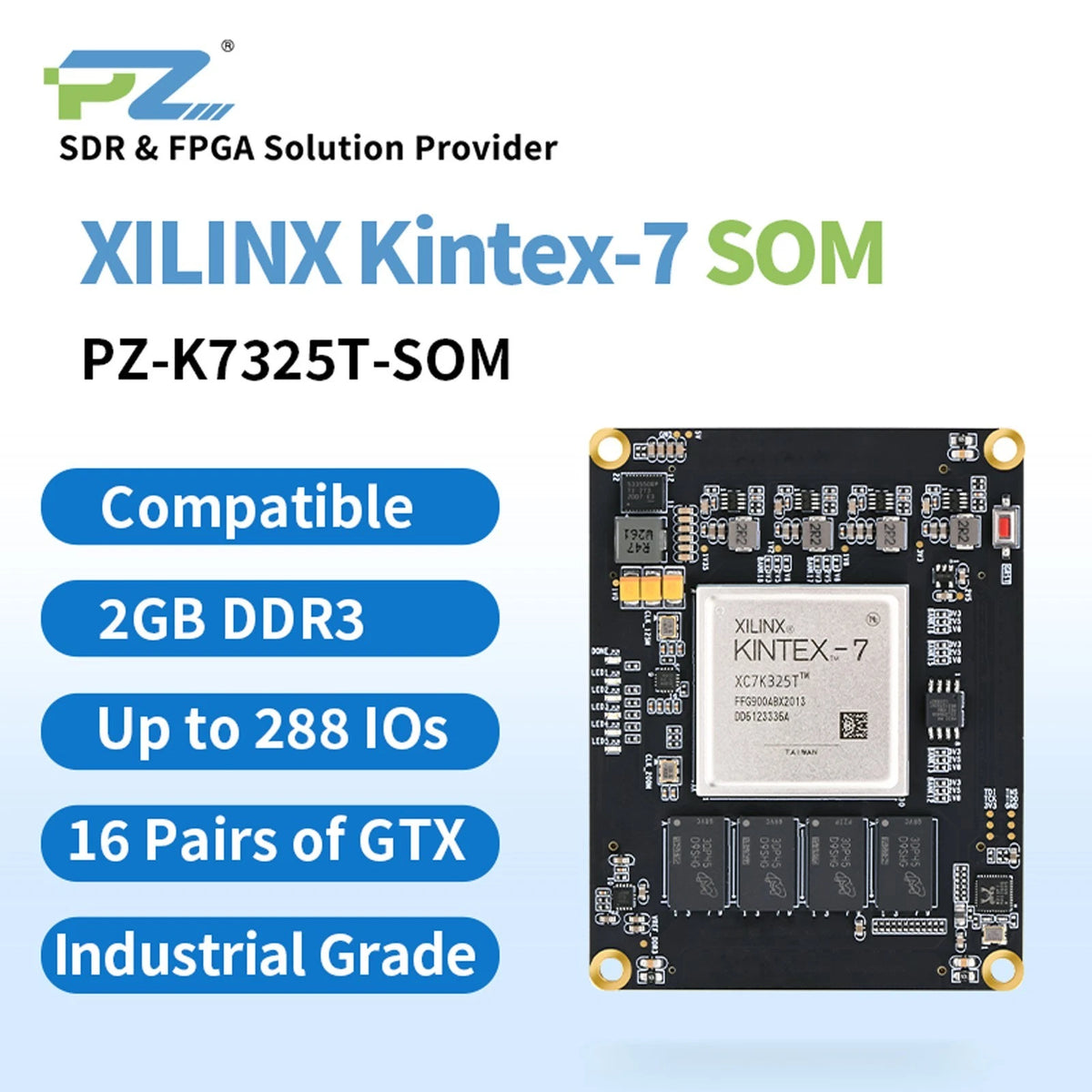

  • Puzhi K7325T-SOM — view 2
  • Puzhi K7325T-SOM — view 3

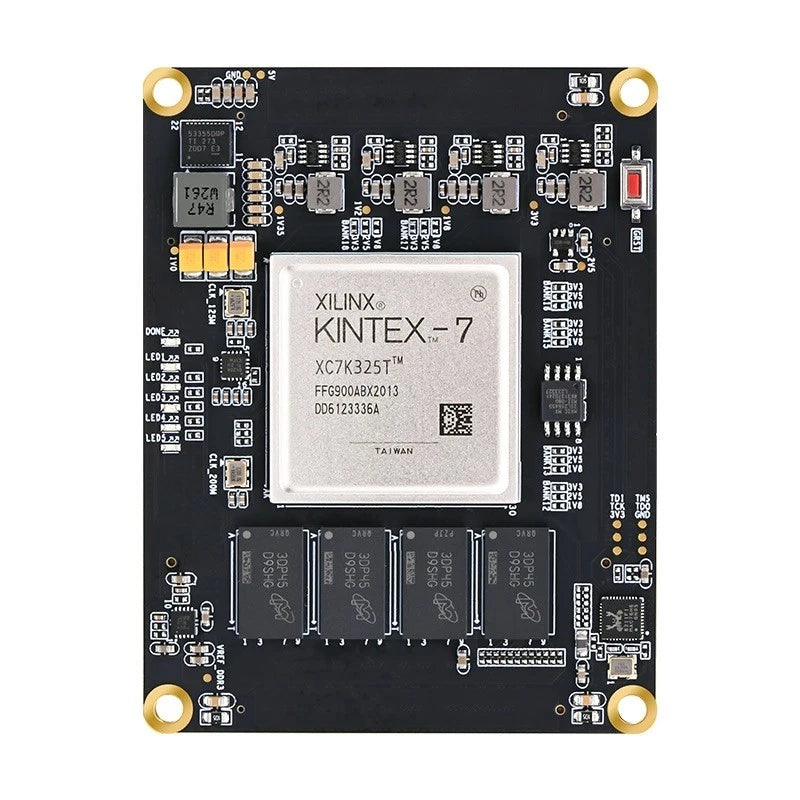

  • Puzhi K7325T-SOM — view 4

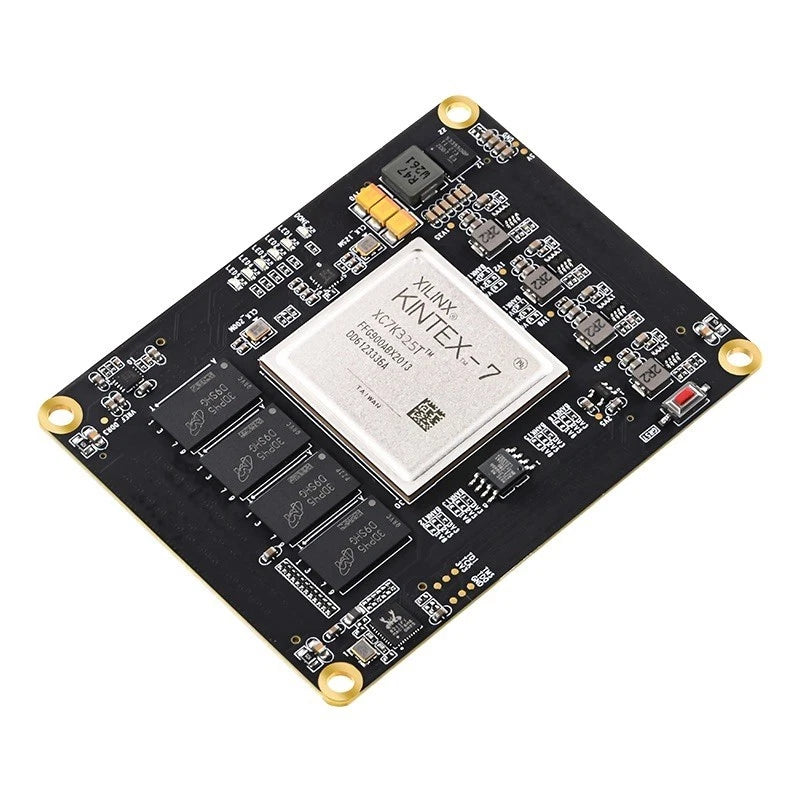

  • Puzhi K7325T-SOM — view 5

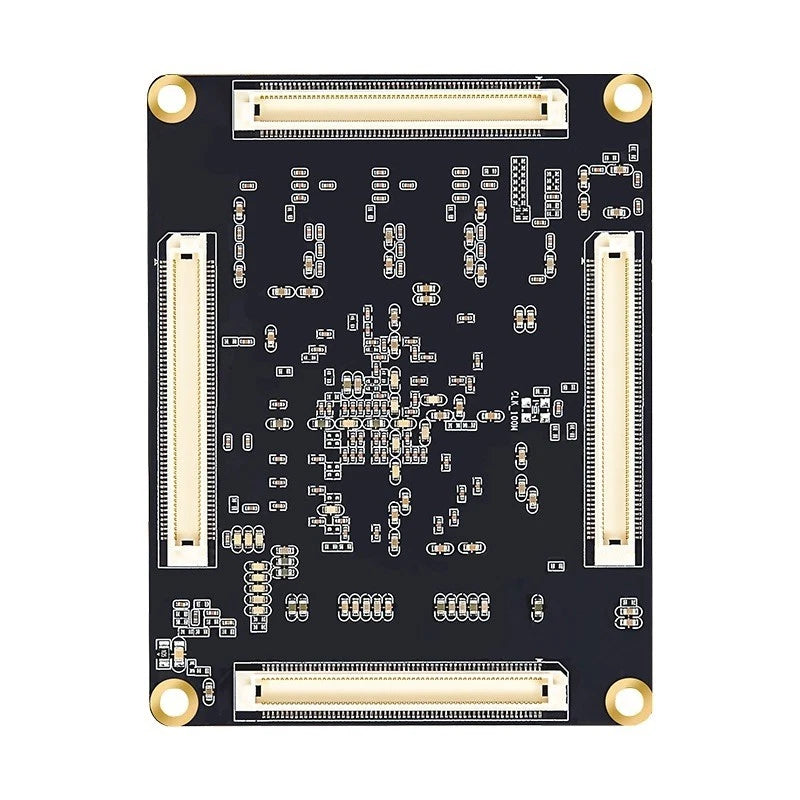

  • Puzhi K7325T-SOM — view 6

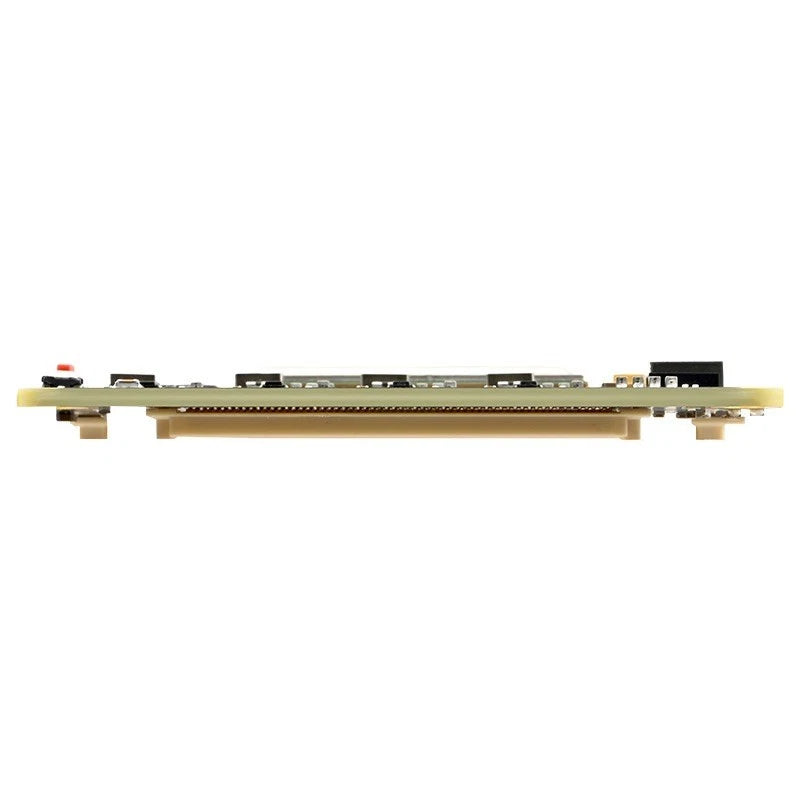

  • Puzhi K7325T-SOM — view 7
1 7

Puzhi

Puzhi FPGA K7325T-SOM Core Board XC7K325T for Xilinx Kintex-7, DDR3 2G

Puzhi FPGA K7325T-SOM Core Board XC7K325T for Xilinx Kintex-7, DDR3 2G

$429.99 USD
$429.99 USD
Sale Sold out
Shipping calculated at checkout.

The Puzhi FPGA is a system-on-module (SoM) based on the XC7K325T-2FFG900I (Kintex-7 Core Board). Key resources include 326K logic cells, 840 DSP slices, 16020 block RAM with 2GB/64bit Width DDR3/DDR memory. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

QSPI FLASH 256Mb, to Store Startup Files and User Files
Program Memory Type Flash
Slices 50950
BLOCK RAM 16020
MPN PZ-K7325T-SOM
Item Length 3.3in
FPGA Chip XC7K325T-2FFG900I
Kit Name FPGA Development Board for Makers and Hobbyists
Technology Black Matte. Immersion Gold Process
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
User LEDs 5

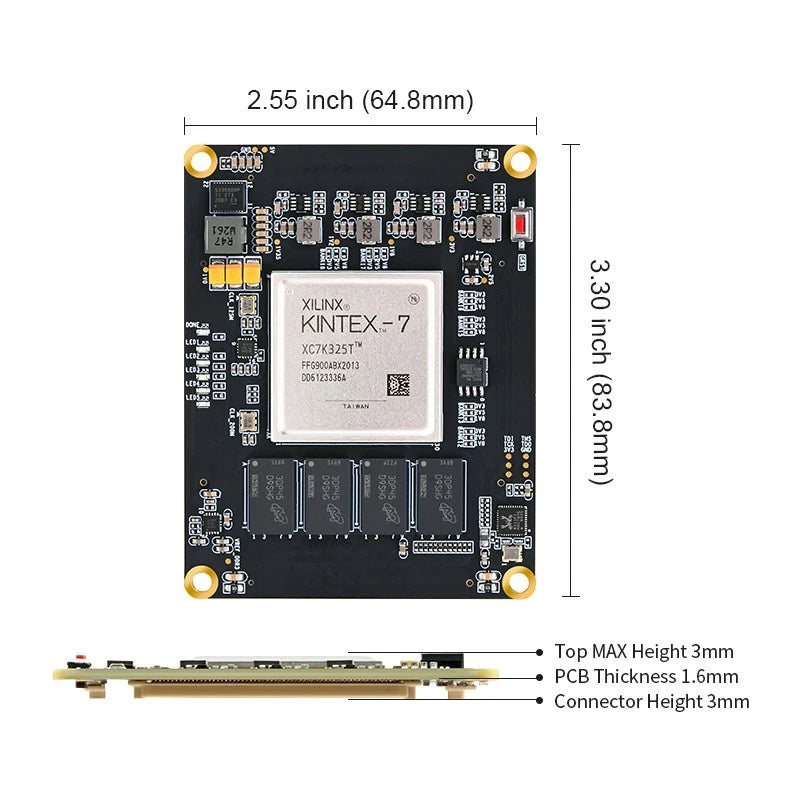

Core Board Form Factors 3.30 inch x 2.55 inch (83.8mm x 64.8mm)
Item Width 2.55in
Core FPGA
Chip Level Industrial Grade (-40°C~+85°C)
Number of GTX 16 Pais of TX/RX
Logic Cells 326K
Flip-Flops 407600
Brand Puzhi
Start-up Mode JTAG/QSPI, The Default Boot Mode is QSPI
Series Xilinx FPGA SoM Kintex-7 Core Board
Type FPGA Core Board
Speed Grade 2
DSP Slices 840
Country of Origin China
DDR3 2GB/64bit Width
Gigabit Ethernet Chip 1

Product Details

eBay

Puzhi FPGA Kintex-7 K7325T Core Board XC7K325T-2FFG900I DDR3 2GB 5V/3A

Main Features

- Kintex-7 Core board / logical unit 326k / Slices 50950

- 2GB DDR3, 256Mb QSPI FLASH, power supply/current 5V/3A

- Size 83.8 x 64.8 mm, up to 288 I/O available, 16 pairs of GTX

- Extreme material selection and process standards, industrial grade -40℃~+85℃

- Provide hardware reference & rich routines to help product development

FPGA Core Board

PZ-K7325T-SOM

FPGA Chip

XC7K325T-2FFG900I

Speed Grade

Chip Level

Industrial Grade (-40°C~+85°C)

Logic Cells

326K

Slices

50950

Flip-Flops

407600

DSP Slices

840

BLOCK RAM

16020
