Puzhi FPGA A775T Development Board XC7A75T for Xilinx Artix-7, DDR3 1G/16bit

Puzhi FPGA A775T Development Board XC7A75T for Xilinx Artix-7, DDR3 1G/16bit

$379.99 USD
$379.99 USD
Sale Sold out
Shipping calculated at checkout.

Built for embedded deployment, the Puzhi FPGA development board pairs a XC7A75T-2FGG484I with 1GB DDR3/DDR memory and a practical I/O set. On-chip resources: 75K logic cells, 180 DSP slices, 3780 block RAM. 138 IOs user I/Os available. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

BLOCK RAM 3780
Brand Puzhi
Chip Level Industrial Grade (-40°C~+85°C)
Core FPGA
Core Board Form Factors 2.36 inch x 1.77 inch (60mm x 45mm)
DDR3 1GB
DSP Slices 180
FPGA Chip XC7A75T-2FGG484I
Features Ethernet, Flash Memory, Flexible Connectivity, I/O Header, JTAG Support, LED
Item Length 6.77in
Item Width 4.57in
Kit Name FPGA Development Board for Makers and Hobbyists
Logic Cells 75K
MPN PZ-A775T-KFB
Number of GTP 4 Pairs of TX/RX
Number of IO 138 IOs
Program Memory Type Flash
QSPI FLASH 256Mb
Reset KEY 1
Series Xilinx FPGA Development Board Artix-7
Slices 11800
Speed Grade 2
Start-up Mode JTAG/QSPI, The Default Boot Mode is QSPI
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
Type FPGA Development Board
User LED 2

Product Details

eBay Main Features

- Artix-7 FPGA architecture/logical unit 75520/slices 11800

- 1GB DDR3, 256MB QSPI FLASH, power supply/current 12V/1A

- Core board 120P connector connection, size 60*45mm

- Reserved ports: Gigabit Ethernet, SATA, HDMI, PCIe, SFP, etc.

- Provide perfect hardware reference & software-rich routines to help product development

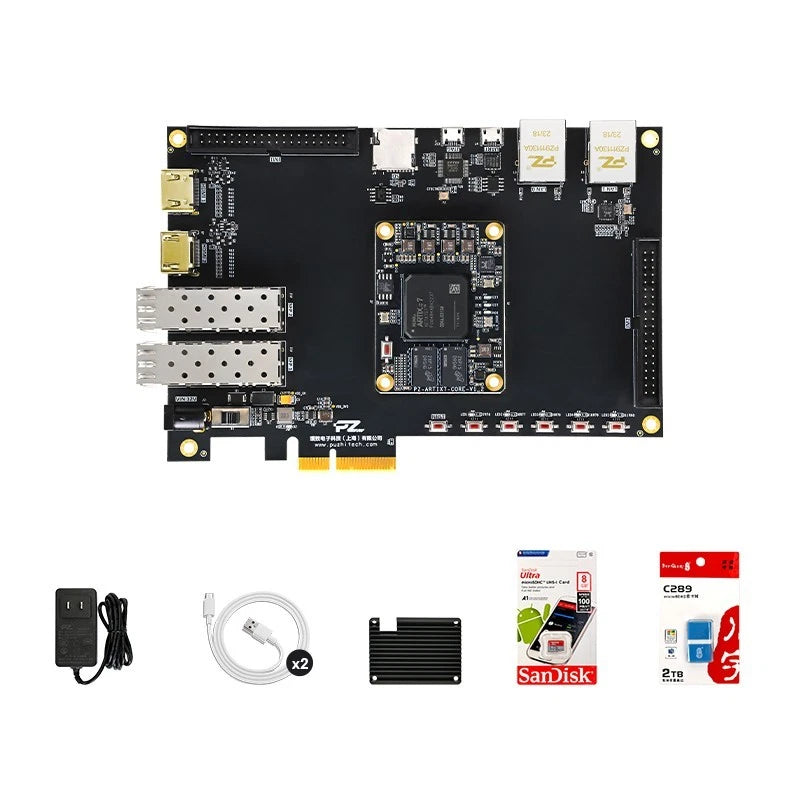

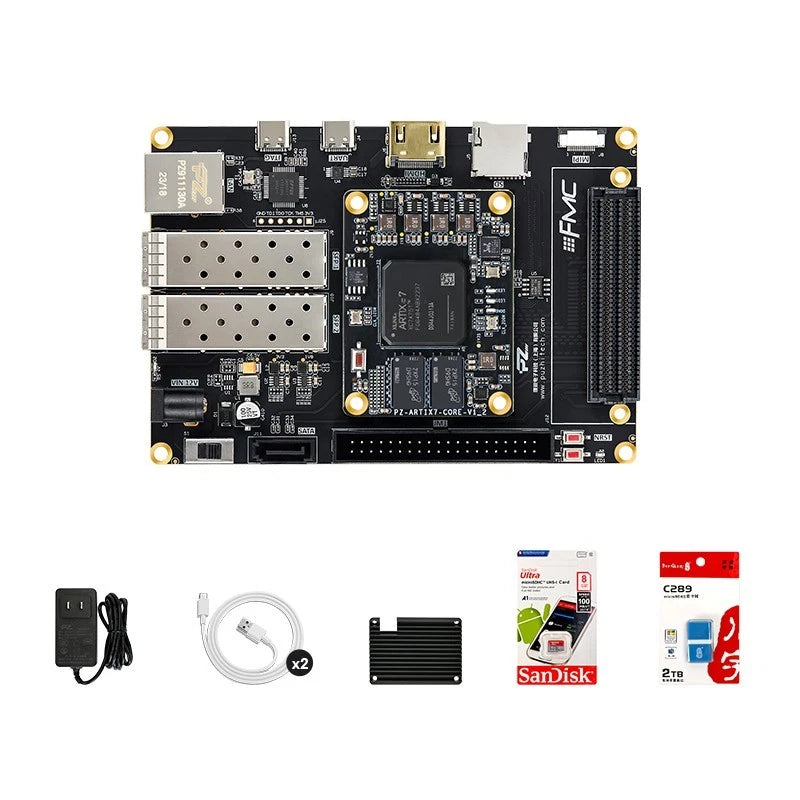

Standard Packing List

- 1x PZ-A775T-KFB board

- 1x 12V/1A Power Adapter

- 2x Micro USB Cables

- 1x Heat Sink

- 1x 8GB SD Card

- 1x Card Reader

FPGA Dev. Board

PZ-A775T-KFB  Core Board Main Parameters

FPGA Chip

XC7A75T-2FGG484I

Interfaces and Function

Speed Grade

Chip Level

Industrial Grade (-40°C~+85°C)

JTAG Downloader

Logic Cells

75K

UART

View full details

Not sure which platform fits your project?

Frequently asked questions

What is Puzhi FPGA A775T Development Board XC7A75T for Xilinx Artix-7, DDR3 1G/16bit used for?
Puzhi FPGA A775T Development Board XC7A75T for Xilinx Artix-7, DDR3 1G/16bit is a Xilinx FPGA Dev Board from Puzhi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does Puzhi FPGA A775T Development Board XC7A75T for Xilinx Artix-7, DDR3 1G/16bit include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order Puzhi FPGA A775T Development Board XC7A75T for Xilinx Artix-7, DDR3 1G/16bit with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is Puzhi FPGA A775T Development Board XC7A75T for Xilinx Artix-7, DDR3 1G/16bit shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
