Puzhi

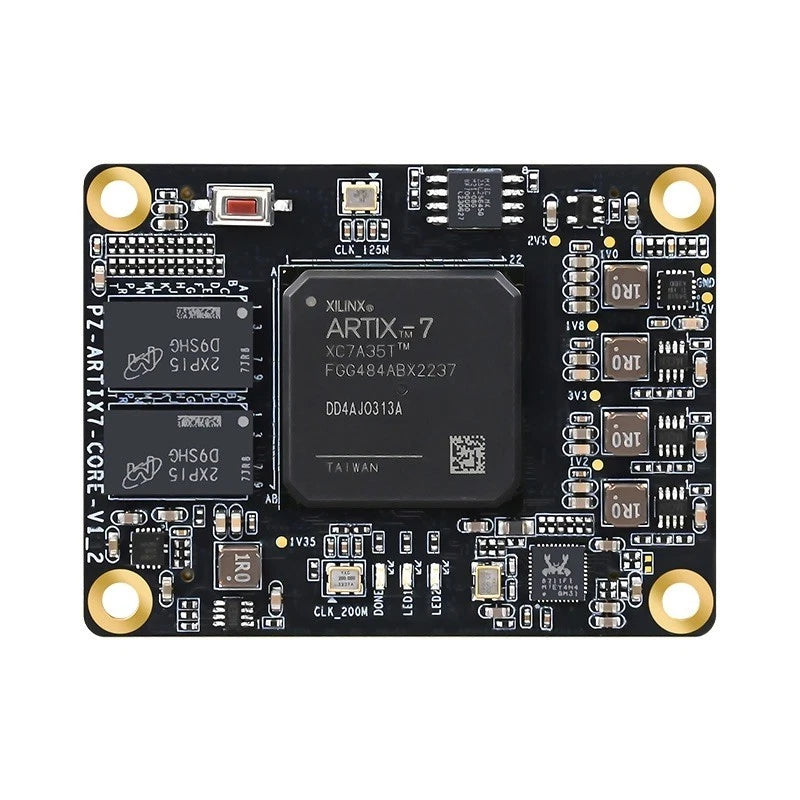

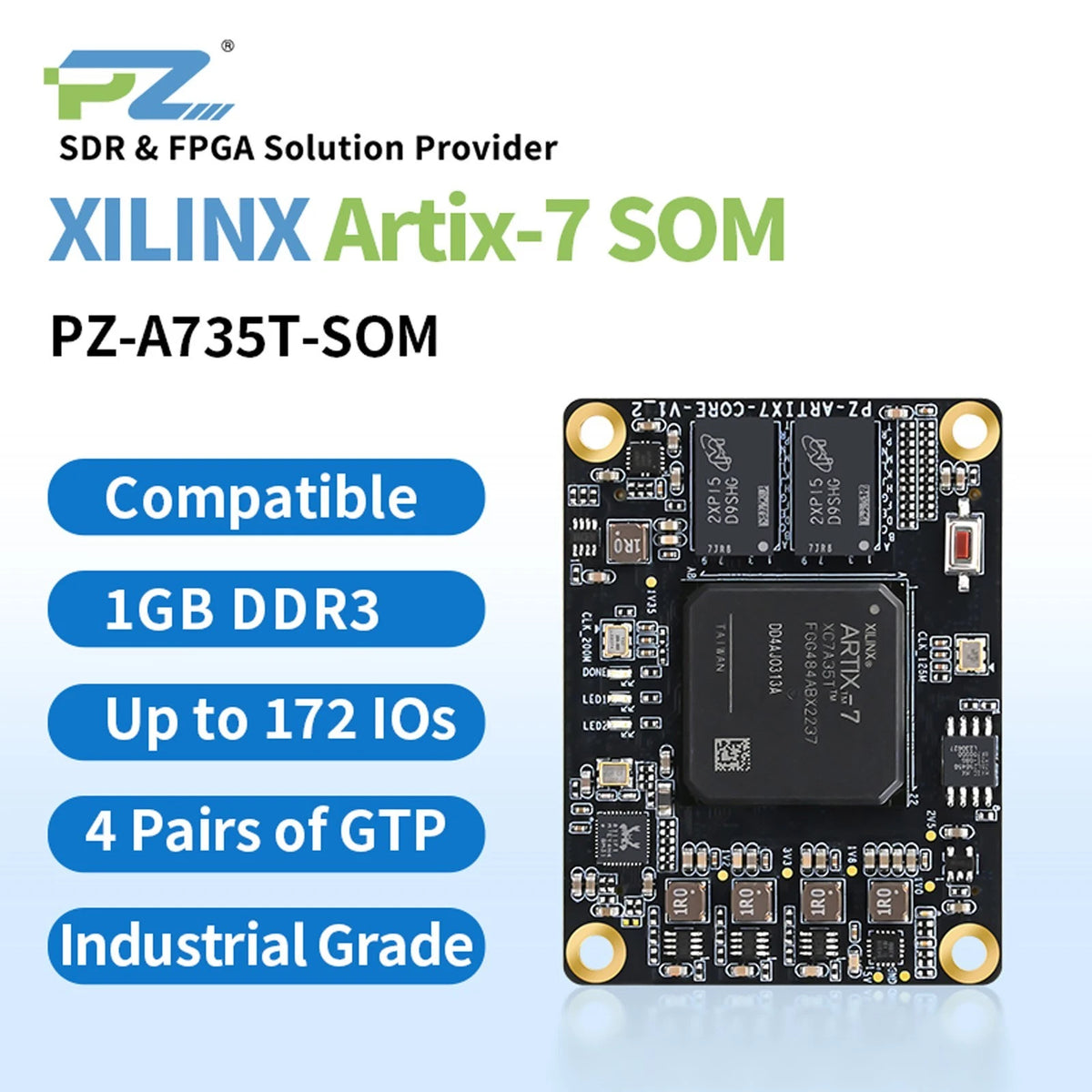

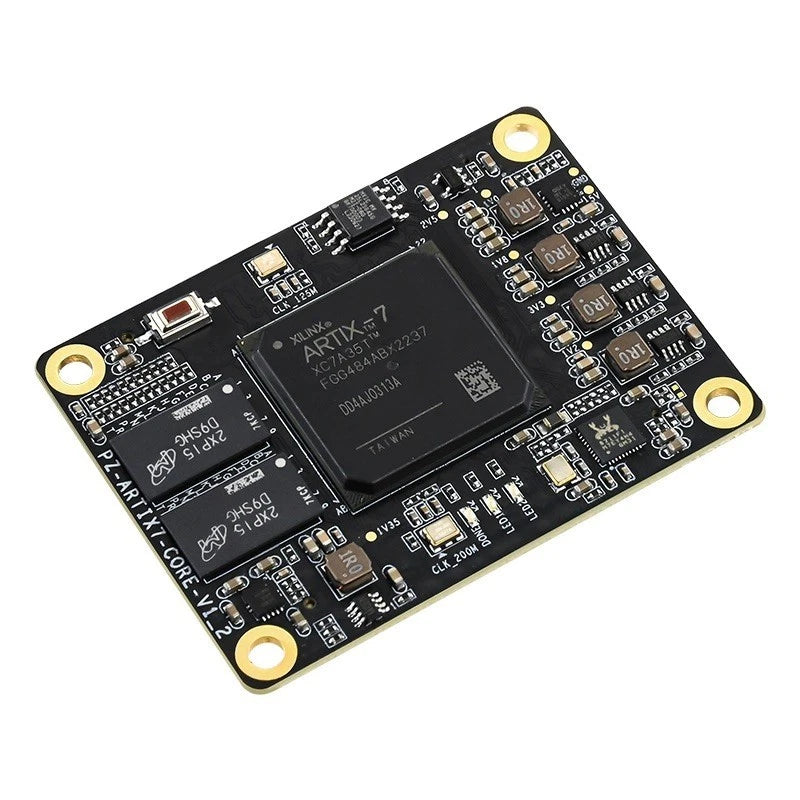

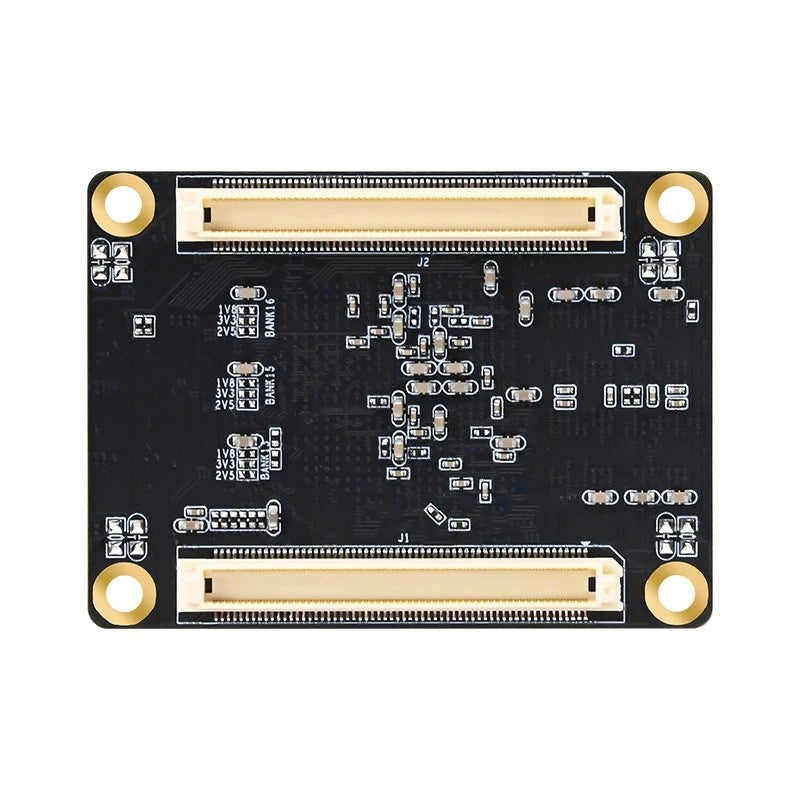

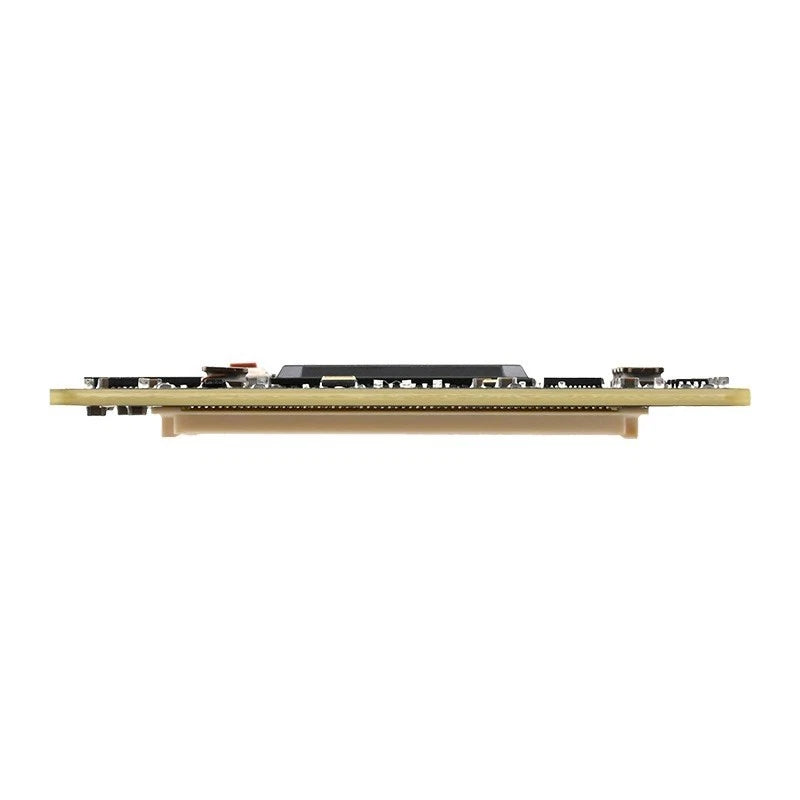

Puzhi FPGA A735T-SOM Core Board XC7A35T for Xilinx Artix-7, DDR3 1G

Puzhi FPGA A735T-SOM Core Board XC7A35T for Xilinx Artix-7, DDR3 1G

$139.99 USD
$139.99 USD
Sale Sold out
Shipping calculated at checkout.

The Puzhi FPGA is a system-on-module (SoM) based on the XC7A35T-2FGG484I (Artix-7 Core Board). Key resources include 33K logic cells, 90 DSP slices, 1800 block RAM with 1GB DDR3/DDR memory. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

BLOCK RAM 1800
Brand Puzhi
Chip Level Industrial Grade (-40°C~+85°C)
Core FPGA

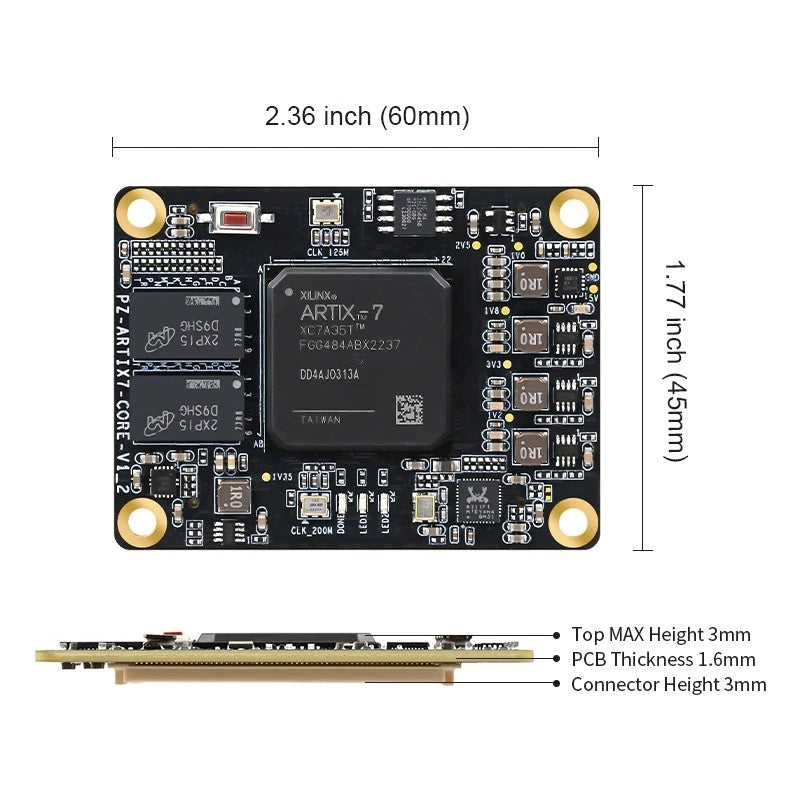

Core Board Form Factors 2.36 inch x 1.77 inch (60 mm x 45mm)
DDR3 1GB
DSP Slices 90
FPGA Chip XC7A35T-2FGG484I
Gigabit Ethernet Chip 1
Item Length 2.36in
Item Width 1.77in
Kit Name FPGA Development Board for Makers and Hobbyists
Logic Cells 33K
MPN PZ-A735T-SOM
Number of GTP 4 Pairs of TX/RX
Program Memory Type Flash
QSPI FLASH 256Mb
Reset KEY 4
Series Xilinx FPGA SoM Artix-7 Core Board
Slices 5200
Speed Grade 2
Start-up Mode JTAG/QSPI, The Default Boot Mode is QSPI
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
Technology Black Matte. Immersion Gold Process
Type FPGA Core Board
User LEDs 2

Product Details

eBay Puzhi FPGA Artix-7 A735T Core Board XC7A35T-2FGG484I Gigabit Ethernet 1 DDR3 1GB

Main Features

- Artix-7 Core board / logical unit 33280 / Slices 5200

- 1GB DDR3, 256Mb QSPI FLASH, power supply/current 5V/2A

- Size 60*45 mm, up to 138 I/O available, 4 pairs of GTP

- Extreme material selection and process standards, industrial grade -40℃~+85℃

- Provide hardware reference & rich routines to help product development

FPGA Core Board

PZ-A735T-SOM

FPGA Chip

XC7A35T-2FGG484I

Speed Grade

Chip Level

Industrial Grade (-40°C~+85°C)

Logic Cells

33K

Slices

5200

BLOCK RAM

1800

DSP Slices

DDR3

1GB

QSPI FLASH

256Mb

View full details

Not sure which platform fits your project?

Frequently asked questions

What is Puzhi FPGA A735T-SOM Core Board XC7A35T for Xilinx Artix-7, DDR3 1G used for?
Puzhi FPGA A735T-SOM Core Board XC7A35T for Xilinx Artix-7, DDR3 1G is a Xilinx FPGA SoM from Puzhi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does Puzhi FPGA A735T-SOM Core Board XC7A35T for Xilinx Artix-7, DDR3 1G include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order Puzhi FPGA A735T-SOM Core Board XC7A35T for Xilinx Artix-7, DDR3 1G with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is Puzhi FPGA A735T-SOM Core Board XC7A35T for Xilinx Artix-7, DDR3 1G shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
