Puzhi

Puzhi FPGA A735T Development Board XC7A35T for Xilinx Artix-7, DDR3 1G/16bit

Puzhi FPGA A735T Development Board XC7A35T for Xilinx Artix-7, DDR3 1G/16bit

$279.99 USD
$279.99 USD
Sale Sold out
Shipping calculated at checkout.

The Puzhi FPGA is a development board based on the XC7A35T-2FGG484I (Artix-7). Key resources include 33K logic cells, 90 DSP slices, 1800 block RAM with 1GB DDR3/DDR memory. 138 IOs user I/Os for peripheral expansion. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

BLOCK RAM 1800
Brand Puzhi
Chip Level Industrial Grade (-40°C~+85°C)
Core FPGA
Core Board Form Factors 2.36 inch x 1.77 inch (60mm x 45mm)
DDR3 1GB
DSP Slices 90
FPGA Chip XC7A35T-2FGG484I
Features Ethernet, Flash Memory, I/O Header, JTAG Support, LED
Item Length 6.77in
Item Width 4.57in
Kit Name FPGA Development Board for Makers and Hobbyists
Logic Cells 33K
MPN PZ-A735T-KFB
Number of GTP 4 Pairs of TX/RX
Number of IO 138 IOs
Program Memory Type Flash
QSPI FLASH 256Mb
Reset KEY 1
Series Xilinx FPGA Development Board Artix-7
Slices 5200
Speed Grade 2
Start-up Mode JTAG/QSPI, The Default Boot Mode is QSPI
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
Type FPGA Development Board
User LED 2

Product Details

eBay Main Features

- Artix-7 FPGA architecture/logical unit 33280/Slices 5200

- 1GB DDR3, 256MB QSPI FLASH, power supply/current 12V/1A

- Core board 120P connector connection, size 60*45mm

- Reserved ports: Gigabit Ethernet, SATA, HDMI, PCIe, SFP, etc.

- Provide perfect hardware reference & software-rich routines to help product development

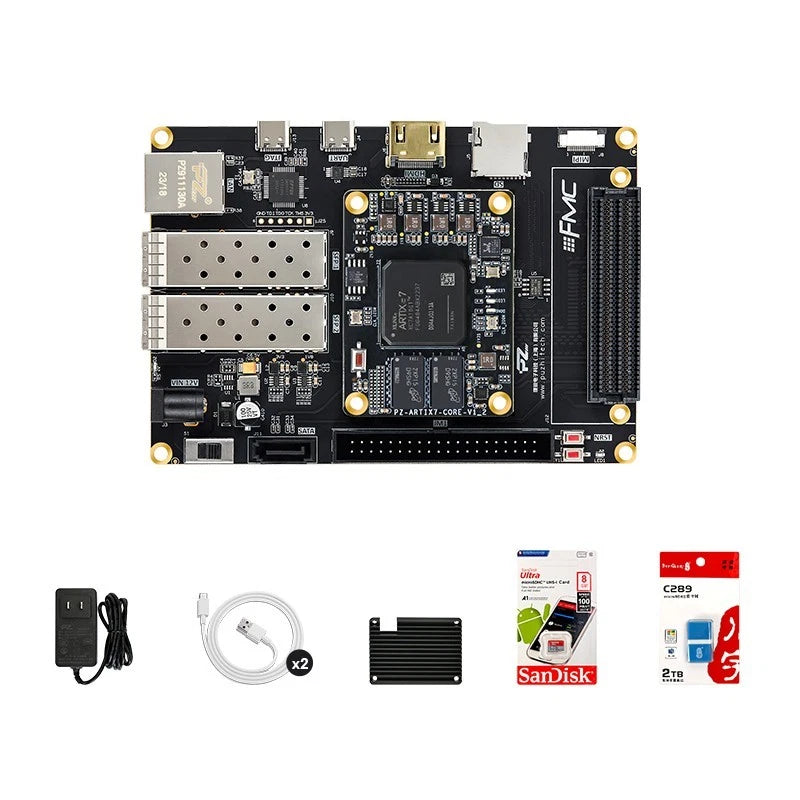

Standard Packing List

- 1x PZ-A735T-KFB board

- 1x 12V/1A Power Adapter

- 2x Micro USB Cables

- 1x Heat Sink

- 1x 8GB SD Card

- 1x Card Reader

FPGA Dev. Board

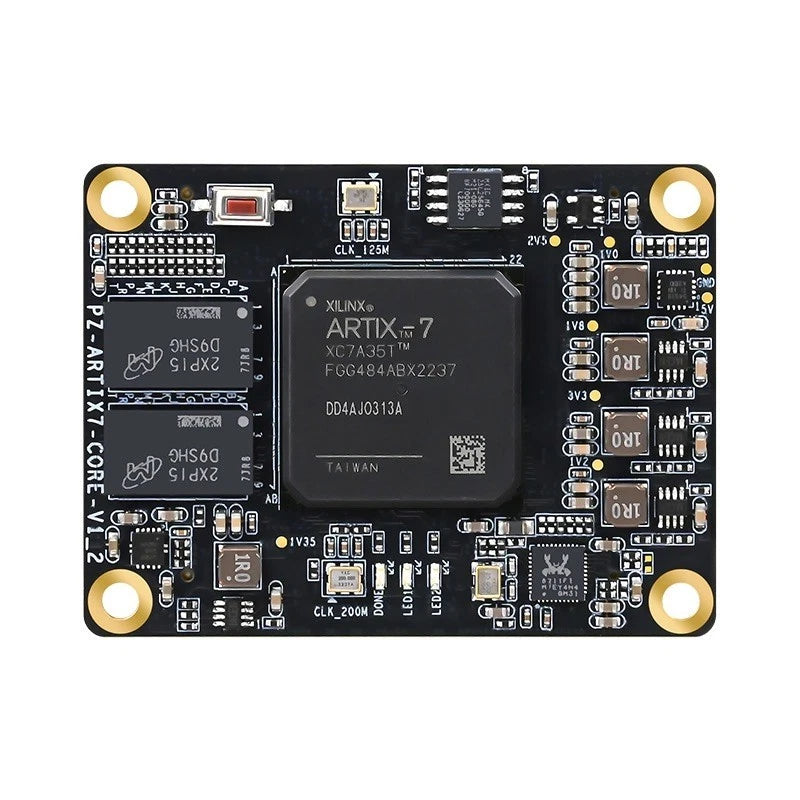

PZ-A735T-KFB Core Board Main Parameters

FPGA Chip

XC7A35T-2FGG484I

Interfaces and Function

Speed Grade

Chip Level

Industrial Grade (-40°C~+85°C)

JTAG Downloader

Logic Cells

33K

UART
