Puzhi FPGA A7200T-SOM Core Board XC7A200T for Xilinx Artix-7, DDR3 1G

Puzhi FPGA A7200T-SOM Core Board XC7A200T for Xilinx Artix-7, DDR3 1G

$329.99 USD
$329.99 USD
Sale Sold out
Shipping calculated at checkout.

Built for embedded deployment, the Puzhi FPGA system-on-module (SoM) pairs a XC7A200T-2FBG484I with 1GB DDR3/DDR memory and a practical I/O set. On-chip resources: 215K logic cells, 740 DSP slices, 13140 block RAM. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

QSPI FLASH 256Mb
Program Memory Type Flash
Slices 33650
BLOCK RAM 13140
MPN PZ-A7200T-SOM
Item Length 2.36in
FPGA Chip XC7A200T-2FBG484I
Kit Name FPGA Development Board for Makers and Hobbyists
Technology Black Matte. Immersion Gold Process
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
User LEDs 2

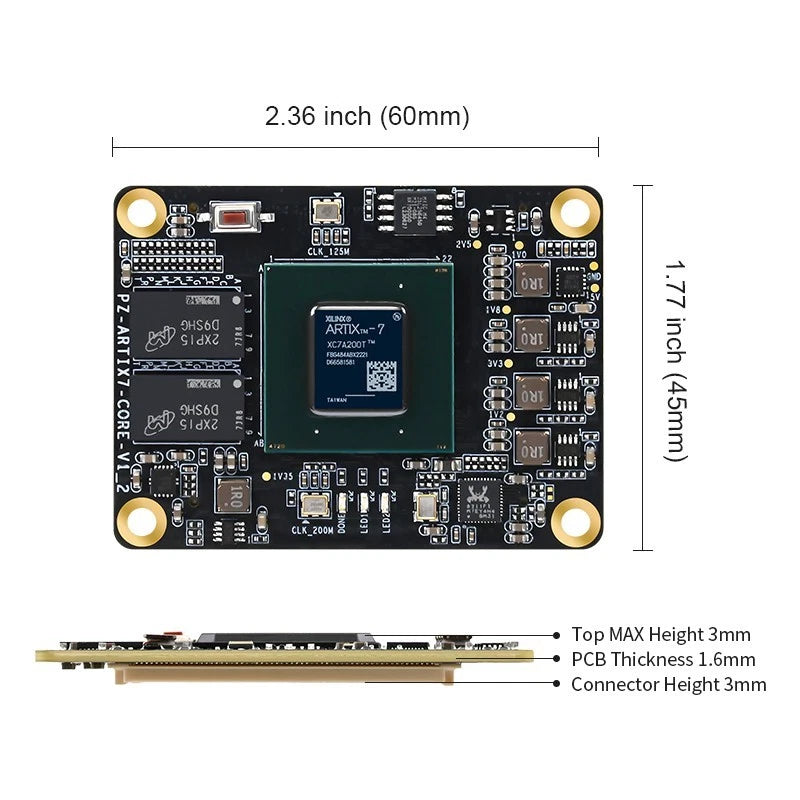

Core Board Form Factors 2.36 inch x 1.77 inch (60 mm x 45mm)
Item Width 1.77in
Core FPGA
Chip Level Industrial Grade (-40°C~+85°C)
Logic Cells 215K
Number of GTP 4 Pairs of TX/RX
Brand Puzhi
Start-up Mode JTAG/QSPI, The Default Boot Mode is QSPI
Series Xilinx FPGA SoM Artix-7 Core Board
Type FPGA Core Board
Reset KEY 4
Speed Grade 2
DSP Slices 740
Country of Origin China
DDR3 1GB
Gigabit Ethernet Chip 1

Product Details

eBay Puzhi FPGA Artix-7 A7200T Core Board XC7A200T-2FBG484I Speed Grade2 4Pairs TX/RX

Main Features

- Artix-7 Core board/logical unit 215360/slices 33650

- 1GB DDR3, 256Mb QSPI FLASH, power supply/current 5V/2A

- Size 60*45 mm, up to 172 I/O available, 4 pairs of GTP

- Extreme material selection and process standards, industrial grade -40℃~+85℃

- Provide hardware reference & rich routines to help product development

FPGA Core Board

PZ-A7200T-SOM

FPGA Chip

XC7A200T-2FBG484I

Speed Grade

Chip Level

Industrial Grade (-40°C~+85°C)

Logic Cells

215K

Slices

33650

BLOCK RAM

13140

DSP Slices

740

DDR3

1GB

QSPI FLASH
