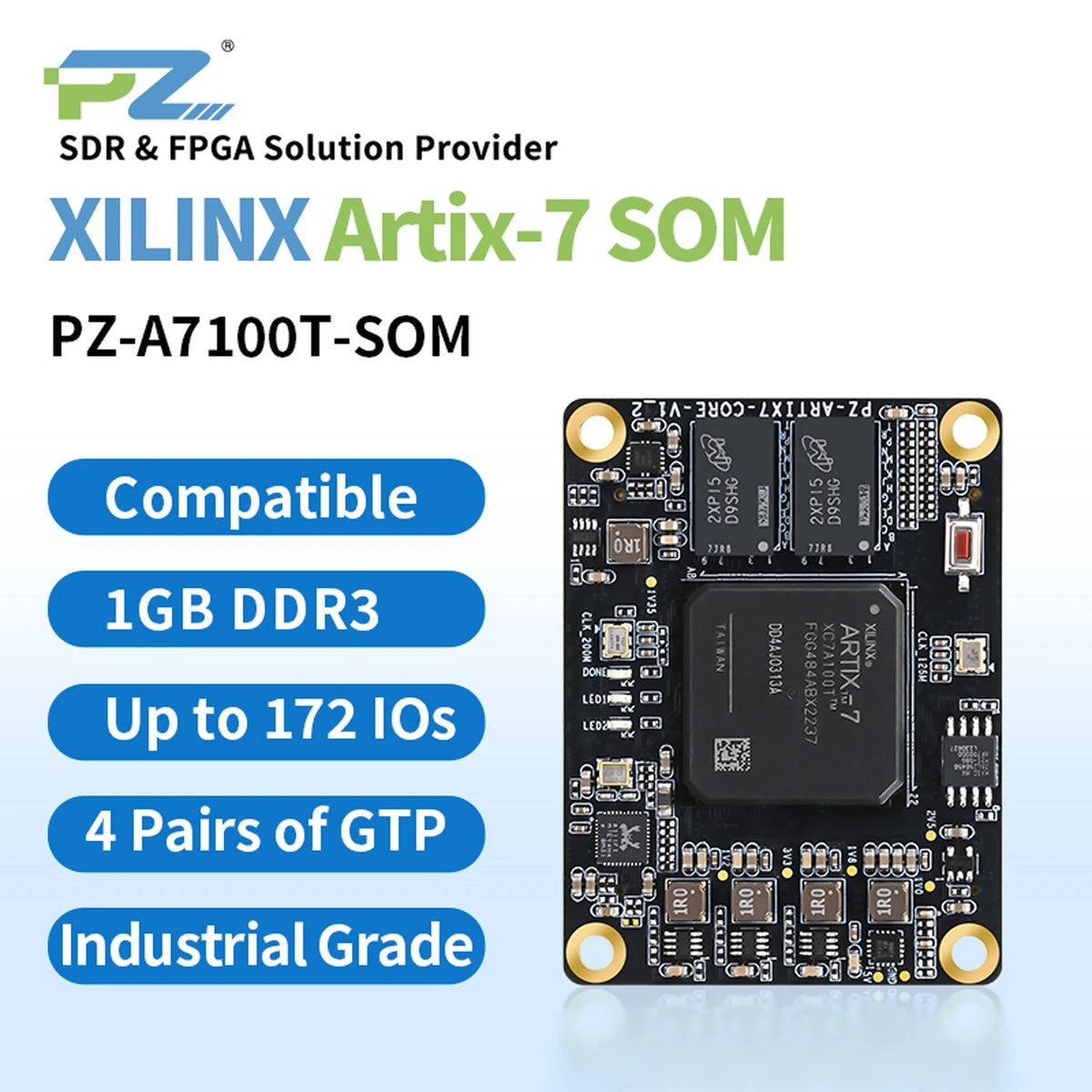

Puzhi FPGA A7100T-SOM Core Board XC7A100T for Xilinx Artix-7, 1GB DDR3, 4x GTP

Puzhi FPGA A7100T-SOM Core Board XC7A100T for Xilinx Artix-7, 1GB DDR3, 4x GTP

$249.99 USD
$249.99 USD
Sale Sold out
Shipping calculated at checkout.

Built for embedded deployment, the Puzhi FPGA system-on-module (SoM) pairs a XC7A100T-2FGG484I with 1GB DDR3/DDR memory and a practical I/O set. On-chip resources: 101K logic cells, 240 DSP slices, 4860 block RAM. Rated Industrial Grade(-40°C~+85°C).

Typical use cases: Image Processing, Power Monitoring, Medical Equipment, Machine Vi. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

QSPI FLASH 256Mb
Program Memory Type Flash
Slices 15850
BLOCK RAM 4860
MPN PZ-A7100T-SOM
Item Length 2.36in
FPGA Chip XC7A100T-2FGG484I
Kit Name FPGA Development Board for Makers and Hobbyists
Technology Black Matte. Immersion Gold Process
Supported Device Image Processing, Power Monitoring, Medical Equipment, Machine Vi
User LEDs 2

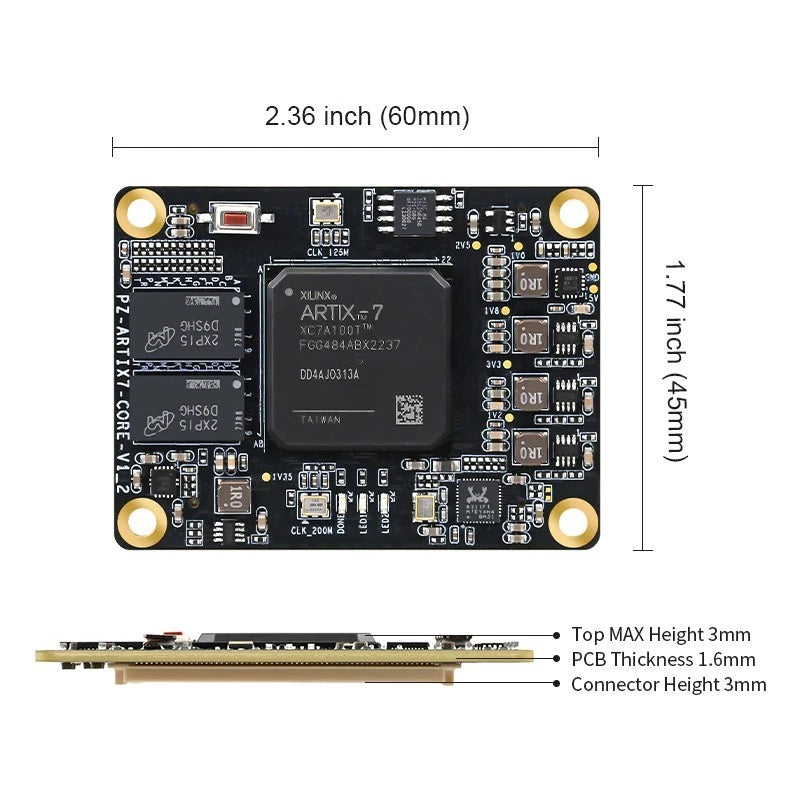

Core Board Form Factors 2.36 inch x 1.77 inch (60 mm x 45mm)
Item Width 1.77in
Core FPGA
Chip Level Industrial Grade (-40°C~+85°C)
Logic Cells 101K
Number of GTP 4 Pairs of TX/RX
Brand Puzhi
Start-up Mode JTAG/QSPI, The Default Boot Mode is QSPI
Series Xilinx FPGA SoM Artix-7 Core Board
Type FPGA Core Board
Reset KEY 4
Speed Grade 2
DSP Slices 240
Country of Origin China
DDR3 1GB
Gigabit Ethernet Chip 1

Product Details

eBay Puzhi FPGA Artix-7 A7100T Core Board XC7A100T-2FGG484I LEDs*2 4 Pairs of TX/RX

Main Features

- Artix-7 Core board / logical unit 101440 / Slices 15850

- 1GB DDR3, 256Mb QSPI FLASH, power supply/current 5V/2A

- Size 60*45 mm, up to 172 I/O available, 4 pairs of GTP

- Extreme material selection and process standards, industrial grade -40℃~+85℃

- Provide hardware reference & rich routines to help product development

FPGA Core Board

PZ-A7100T-SOM

FPGA Chip

XC7A100T-2FGG484I

Speed Grade

Chip Level

Industrial Grade (-40°C~+85°C)

Logic Cells

101K

Slices

15850

BLOCK RAM

4860

DSP Slices

240

DDR3

1GB

QSPI FLASH

View full details

Not sure which platform fits your project?

Frequently asked questions

What is Puzhi FPGA A7100T-SOM Core Board XC7A100T for Xilinx Artix-7, 1GB DDR3, 4x GTP used for?
Puzhi FPGA A7100T-SOM Core Board XC7A100T for Xilinx Artix-7, 1GB DDR3, 4x GTP is a Xilinx FPGA SoM from Puzhi. It is typically used in embedded computing, edge AI inference, industrial control and rapid prototyping, and can be integrated into custom carrier boards or finished devices.

Does Puzhi FPGA A7100T-SOM Core Board XC7A100T for Xilinx Artix-7, 1GB DDR3, 4x GTP include technical support, datasheets or pre-flashed images?
Yes. Ai-Paipai supplies this item through a traceable supply chain and provides local engineering support, datasheets, SDKs and pre-flashed system images where applicable, plus OEM / ODM customization for volume projects.

Can I order Puzhi FPGA A7100T-SOM Core Board XC7A100T for Xilinx Artix-7, 1GB DDR3, 4x GTP with OEM / ODM options or CE / FCC / RoHS certification?
OEM / ODM customization (specs, enclosure, BSP) is available, and CE / FCC / RoHS certified options can be provided on request for EU and US imports. Contact us for a quote.

How is Puzhi FPGA A7100T-SOM Core Board XC7A100T for Xilinx Artix-7, 1GB DDR3, 4x GTP shipped, and what is the lead time?
Orders ship worldwide from Shenzhen. Stock items typically dispatch within a few business days; configurable or made-to-order variants take longer. Exact lead time is shown at checkout or on request.
