Puzhi Expansion Module High Speed ADC AD9643 250MSPS 14bit 120P Expansion Port

Puzhi Expansion Module High Speed ADC AD9643 250MSPS 14bit 120P Expansion Port

$289.00 USD
$289.00 USD
Sale Sold out
Shipping calculated at checkout.

Puzhi Expansion is an industrial-grade FMC expansion module.

Typical use cases: industrial control, SDR and rapid prototyping. Supplied by Ai-Paipai with local engineering support, SDK / image pre-flashing and OEM / ODM options; ships worldwide.

Specifications

Brand Puzhi
DAQ Module Type Analog Input
MPN PZ9643
Number of Channels 2
UPC does not apply

Product Details

eBay

Puzhi Expansion Module High Speed ADC AD9643 250MSPS 14bit 120P Expansion Port

Main Features

- Dual-channel high-speed ADC, 14-bit/250 MSPS high sampling rate

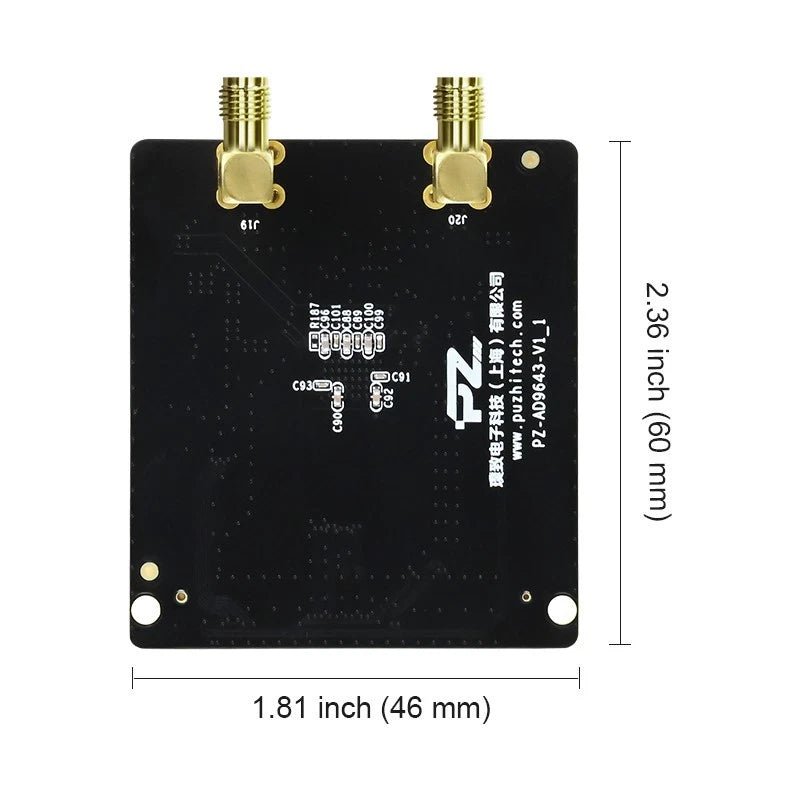

- Size 60*46 mm, power supply voltage 12 V

- Extreme material selection and process standards, industrial grade -40℃~+85℃

- 120P expansion port connector

- Support full platform expansion, provide multi-platform routines, help product development

PZ9643 Parameters

ADC Chip

AD9643

Number of Channels

Number of Bits

14bit

Maximum Sampling Rate

250MSPS

Voltage Range

1.75VPP

Chip Level

Industrial Grade (-40°C ~ +85°C)

Power Supply

Powered from FMC Interface (12V)

Connector

120P Expansion Port
